3.56
ENGINE
NOTE: When applying RTV, do not get any RTV
inside the reed assembly.
9. Place a new seal (I) into the bottom of the cover. Be sure
the seal is seated into the cover properly.
IMPORTANT: Before assembly, clean the bolts and
bolt holes with Primer N (PN 2870585) to remove any
debris. This will ensure proper sealing when
installing bolts.

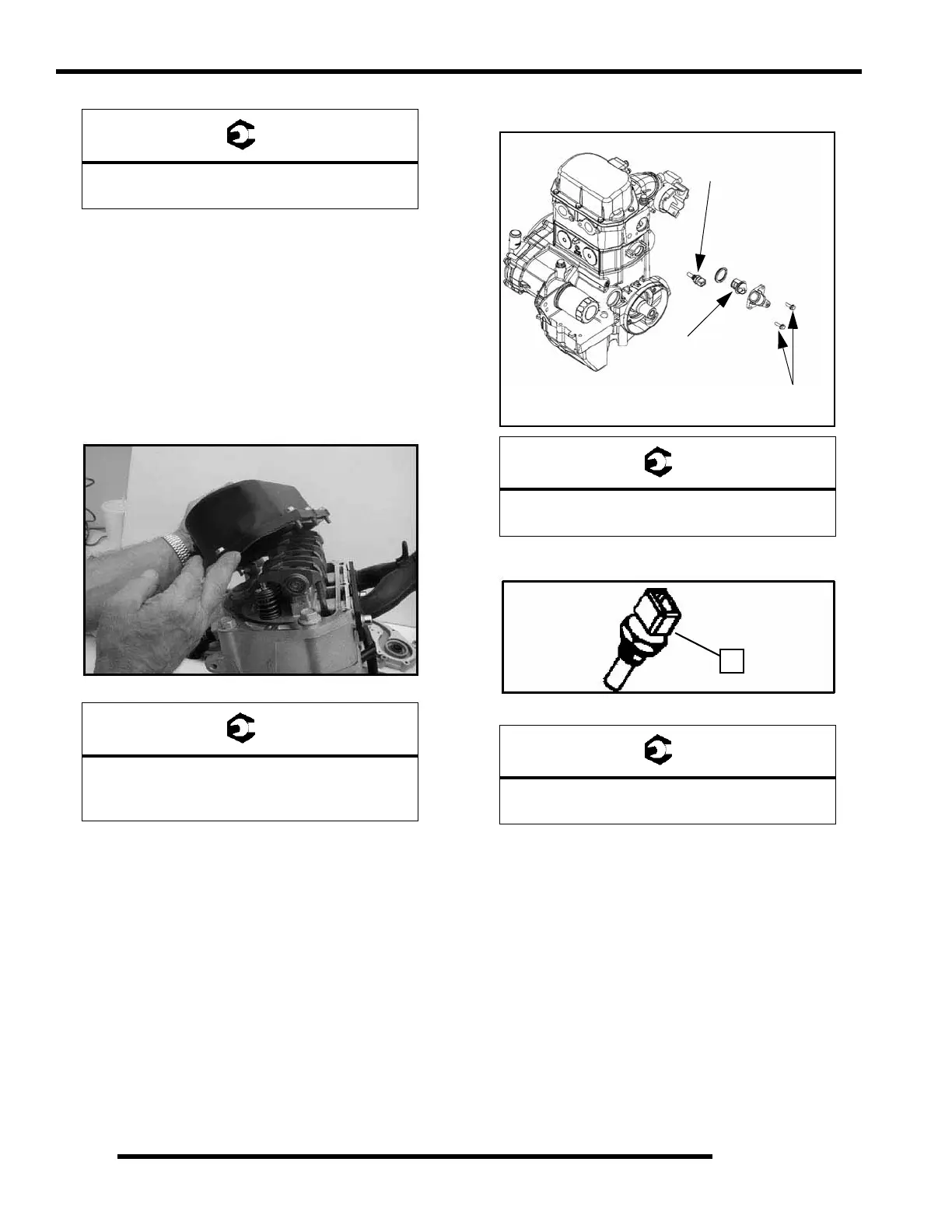

10. Install rocker cover. Torque bolts to specification.
11. Install thermostat (J), new O-ring, and thermostat housing.
Torque to specification.
12. Install temperature sender (K) and torque to specification.
= T
Breather Bolt Toque:
20
± 5 in. lbs. (2.5± 0.55 Nm)
= T
Rocker Cover Bolt Torque:
84  8 in.lbs. (9.5  0.9 Nm)
Torque in Sequence
= T
Thermostat Housing Bolt Torque:
84  8 in. lbs. (9.5 0.9 Nm)
= T
Temperature Sender Torque:
17 ± 2 ft.lbs. (23 ± 3 Nm)
J
17 ± 2 ft. lbs.
(23 ± 3 Nm)
84 ± 8 in. lbs.
(9.5 ± 0.9 Nm)
K
K
