7.35
FINAL DRIVE
7

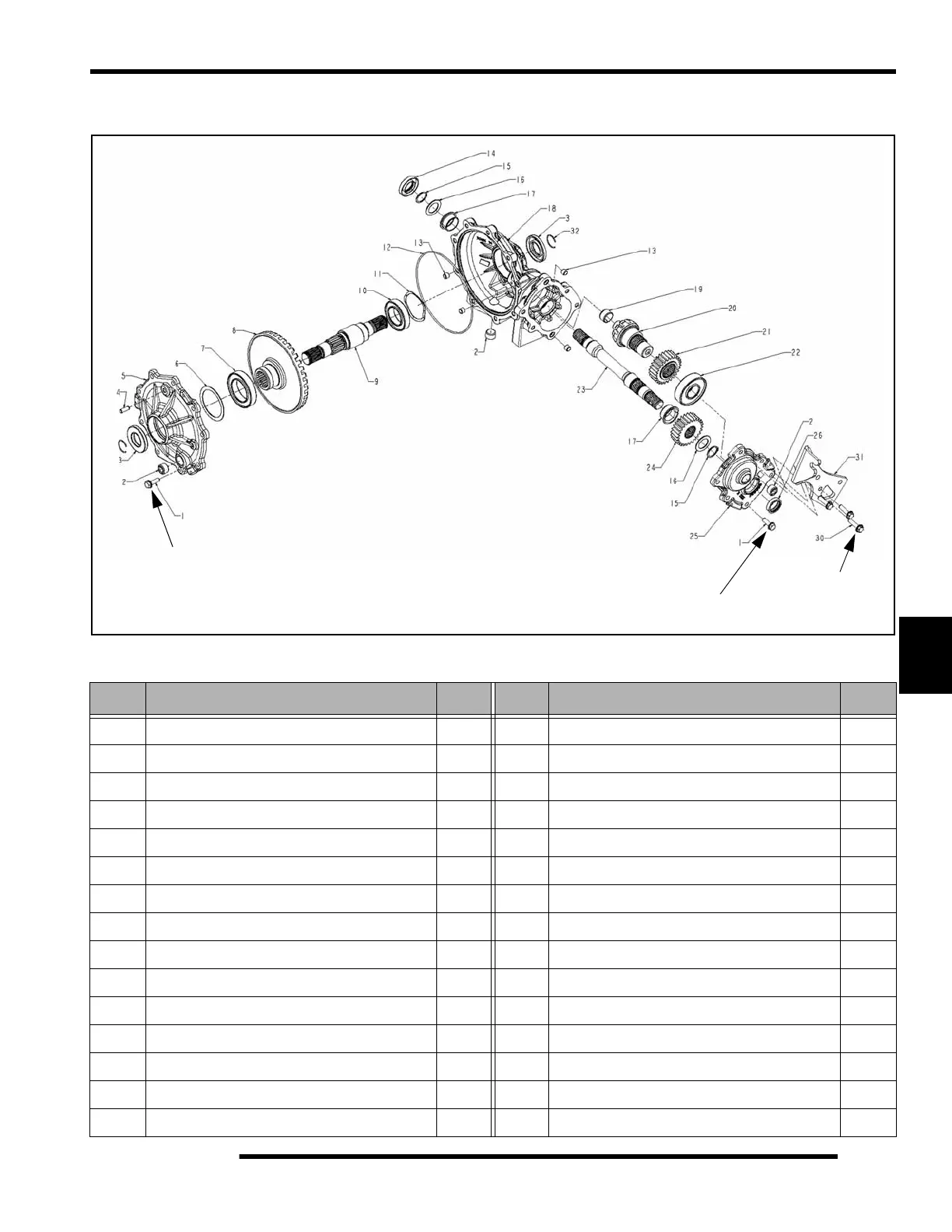

Mid Gearcase Exploded
REF# DESCRIPTION QTY REF# DESCRIPTION QTY
1 Screw (5/16-18 x 1.0) 12 16 Washer, Thrust 2
2 Plug, Square Socket 3 17 Bearing, Plain Flanged 2
3 Seal, Dual Lip 2 18 Gearcase 1
4 Tube, Vent 1/4” Hose 1 19 Bushing 1
5 Cover, Output 1 20 Pinion, 10T 1
6 Shim 1 21 Gear, 26T Output 1
7 Bearing, Ball 1 22 Bearing, Ball 1
8 Gear, Ring 37T 1 23 Shaft, Output Thru 1
9 Shaft, Output 1 24 Gear, 26T Input 1
10 Bearing, Ball 1 25 Cover, Input 1
11 Spring, Wave 1 26 Seal, Triple Lip 1
12 O-Ring 1 30 Bolt, (5/16-18 x 1.25) 3
13 Pipe, Knock 4 31 Bracket, Caliper Mount 1
14 Seal, Triple Lip 1 32 Ring, Hog 2
15 Ring, Retaining 2
18-23 ft. lbs.
(24-31 Nm)
18-23 ft. lbs.
(24-31 Nm)
30 ft. lbs.
(41 Nm)
