8.7
TRANSMISSION
8

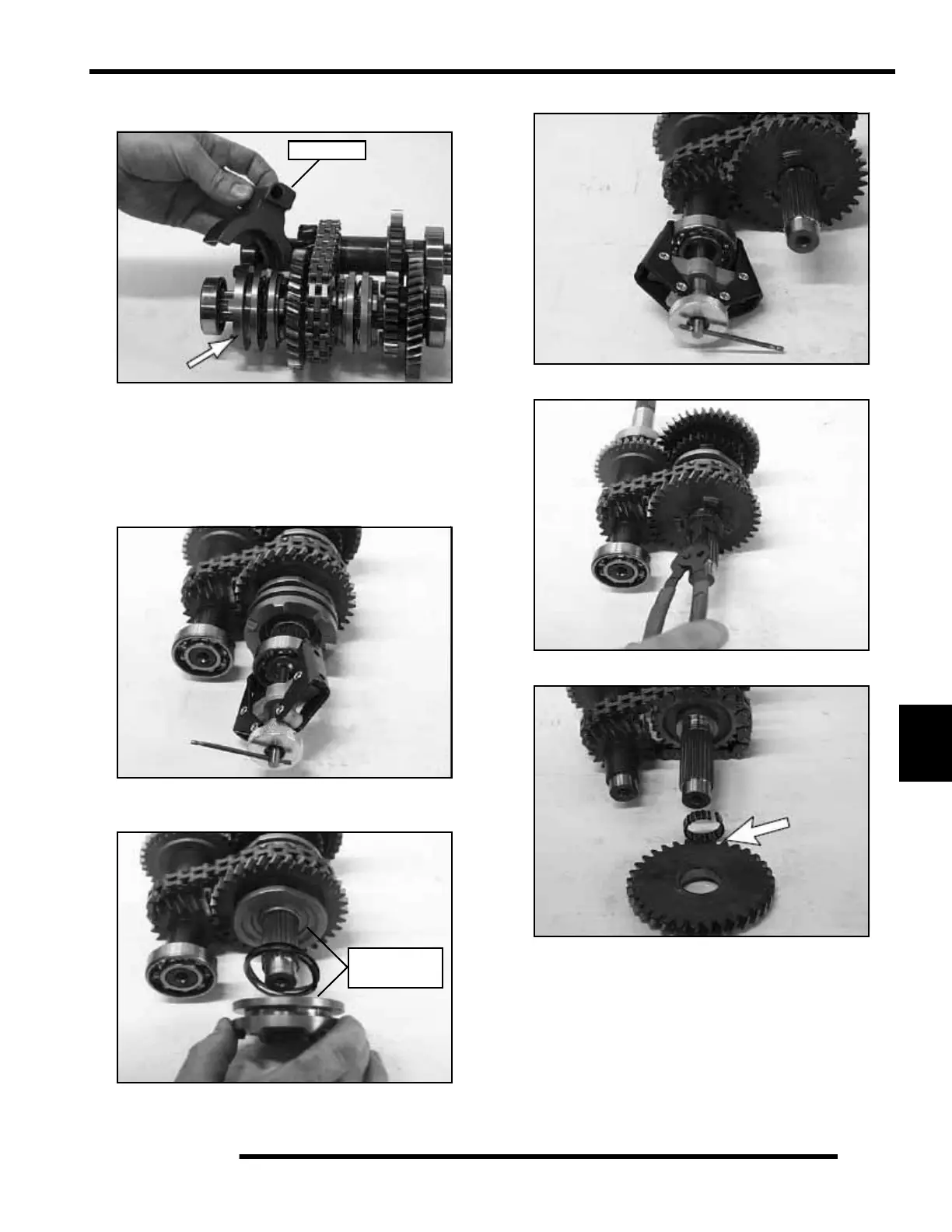

14. Remove the shift forks from the assembly. Note the correct
position of each fork.
NOTE: The picture above depicts a transmission
with a “park dog” on the end of the shaft instead of a
regular “shift dog”. The transmission will have a
regular shift dog in the location indicated by the
arrow in the photo.
15. Remove the bearing from the reverse shaft with a puller.
16. Remove the park lock engagement dog. Remove the wave
spring and reverse engagement dog.
17. Remove the bearing from the input shaft with a puller.
18. Remove the snap ring and washer from the reverse shaft.
19. Remove low gear (33T) and the needle bearing.
20. Remove the reverse gear shaft.
Shift Fork
Engagement
Dogs
