10.9
ELECTRICAL
10

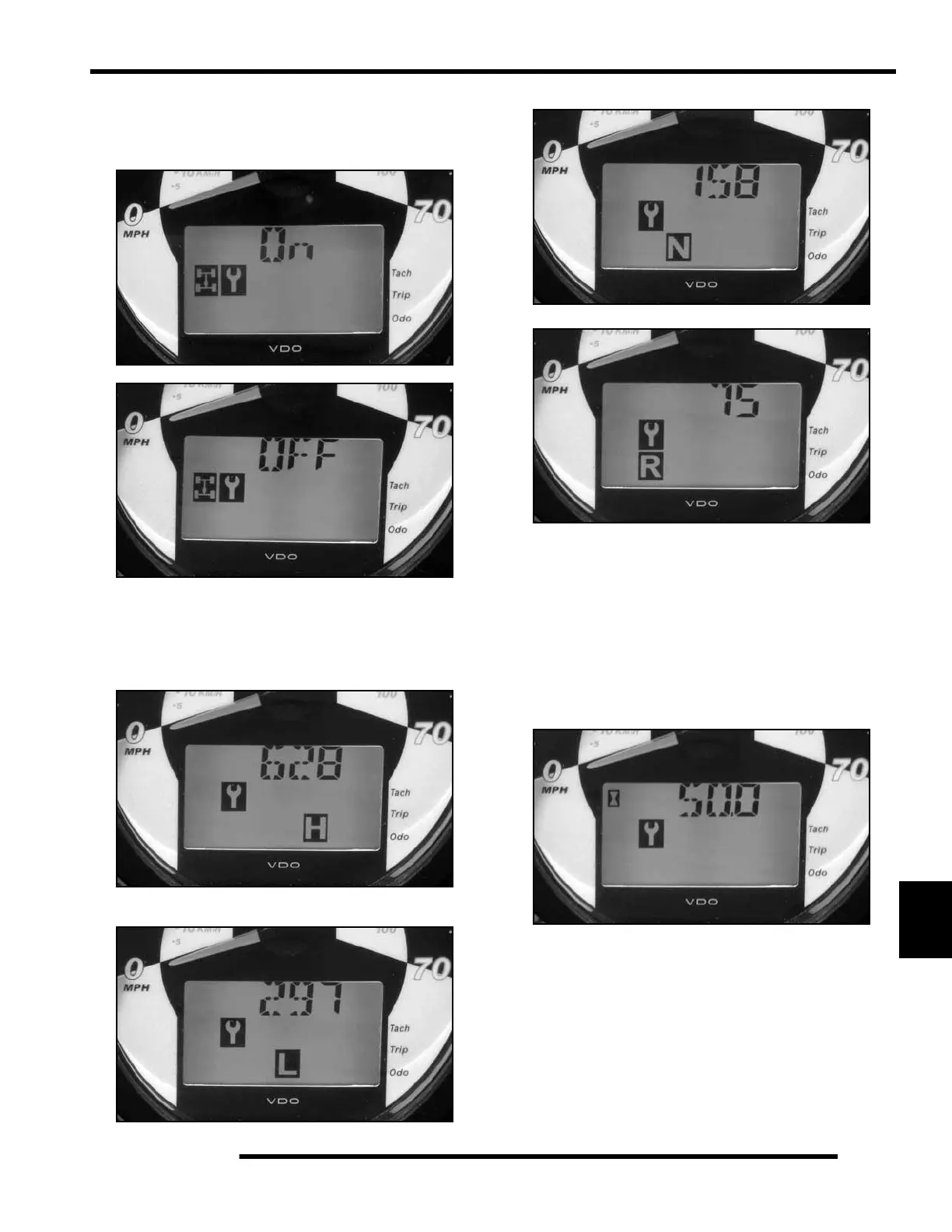

AWD Diagnostic Screen
The gauge indicates whether or not current is flowing through
the AWD coil.
Gear Circuit Diagnostic Screen
This screen displays the resistance value (in ohms) being read at
the gear switch input of the gauge.
NOTE: A 10 - 20% variance from these readings is
within normal parameters.
Programmable Service Interval
When the hours of engine operation equal the programmed
service interval setting, the wrench icon will flash for 5 seconds
each time the engine is started. When this feature is enabled, it
provides a convenient reminder to perform routine
maintenance.
NOTE: The service interval is programmed at 50
hours at the factory.
