Polaris RANGER XP 700 4X4 User Manual

3.7
ENGINE
3

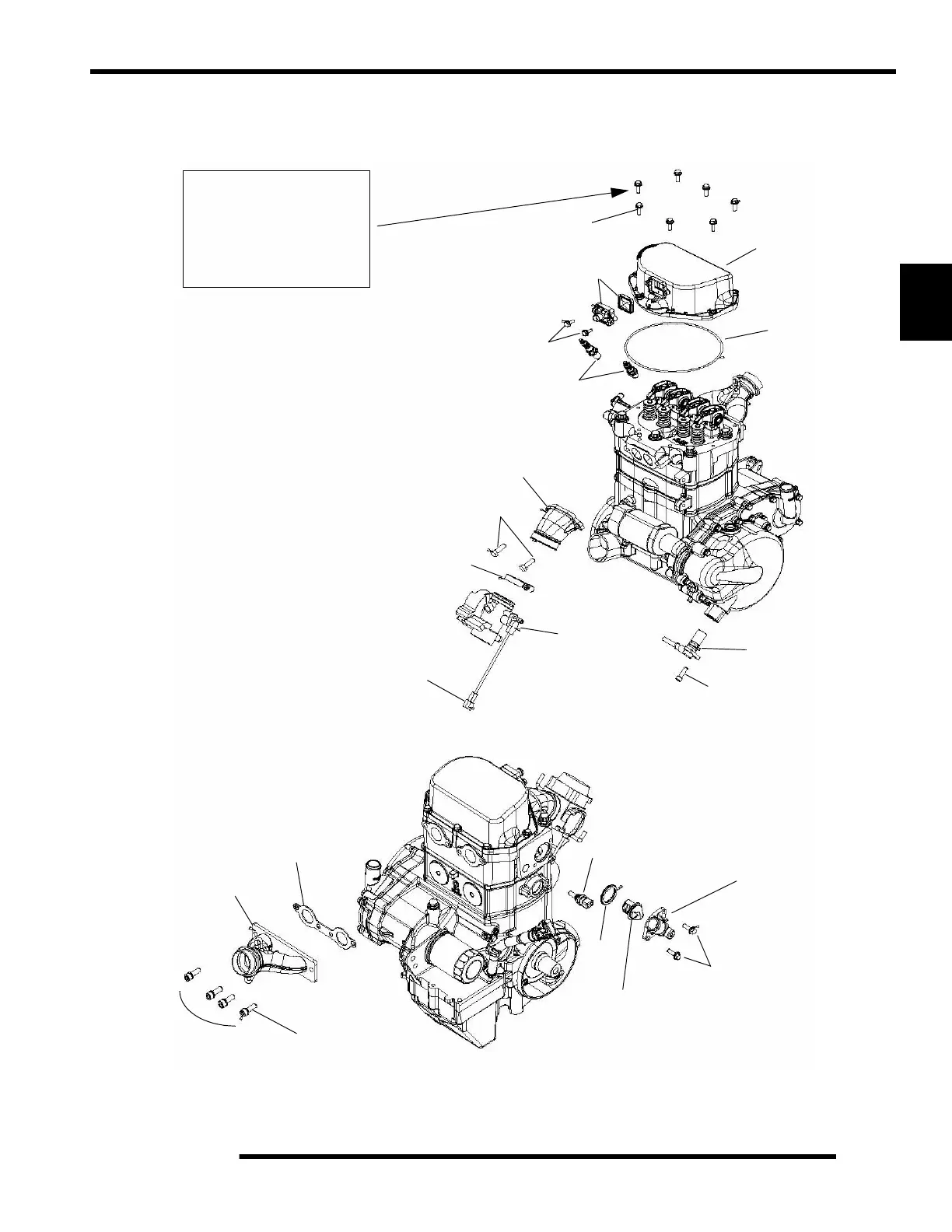

Engine Sensors / Valve Cover / General Component Exploded View






84  8 in. lbs.
(9.5  0.9 Nm)
20  5 in. lbs.
(2.5  0.55 Nm)
18  2 ft. lbs.
(24.5  2.7 Nm)
20  5 in. lbs.
(2.5  0.55 Nm)
84  4 in. lbs.
(9.5  0.9 Nm)
17  2 ft. lbs.
(23  3 Nm)
84  8 in. lbs.
(9.5  0.9 Nm)
18  2 ft. lbs.
(24.5  2.7 Nm)
A. Screws
B. Rocker Cover
C. Breather
D. O-ring Seal
E. Breather Bolts
F. Spark Plugs
G. Intake Boot
H. Bolts
I. Boot Clamp
J. Throttle Body
K. Crank Position Sensor
L. Thermistor
M. O-ring
N. Thermostat
O. Bolts
P. Gasket
Q. Exhaust Manifold
R. Bolts
S. Thermostat Housing
A
B
E
C
D
F
G
H
I
J
Apply Corrosion
Resistant Grease
K
L
M
N
O
P
Q
18  2 ft. lbs.
(24.5  2.7 Nm)
R
(Apply Dielectric Grease
to threads of Spark Plug)
S
