Repair Manual
Macro 5 SLR Camera
29

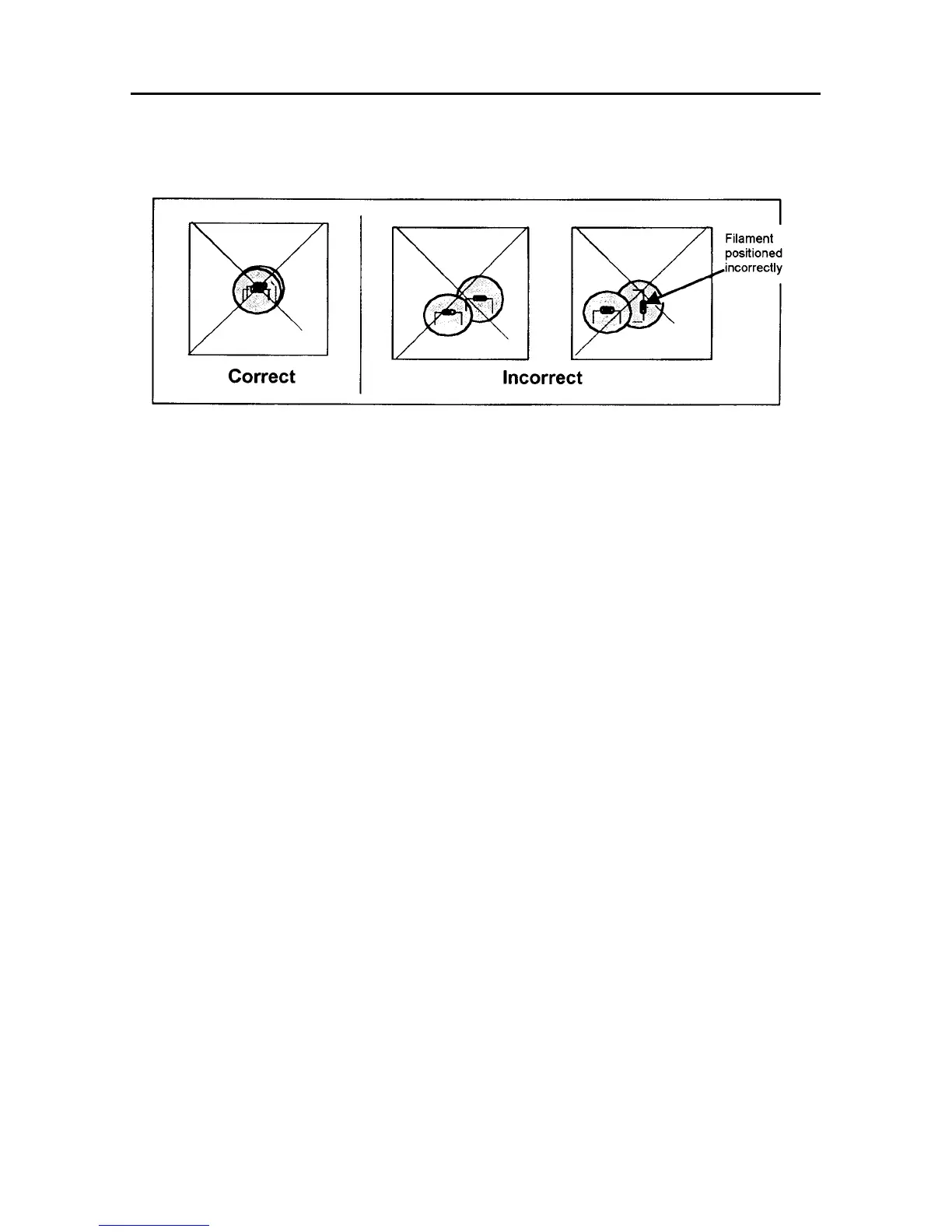

Figure 3-2 Range Light Adjustment
5. Adjust range lights as follows:
• Remove the front cover as explained in section 4 of this service manual.
• Determine which range light is out of adjustment.
• Loosen the applicable adjustment screw (Figure 3-3) and then manually
adjust the range light until it merges with the other range light.
Note: If either range light filament is not horizontal (Figure 3-2),
loosen the applicable range light clamp screw and then manually
rotate the lamp until its filament is correctly positioned.
6. Once both range lights are merged together and properly centered in the test
target, tighten the range light adjustment screws being careful not to disturb
the adjustment.
7. Recheck the position of the range lights by lightly pressing the red shutter
button. The range lights should be merged together and centered in the test
target. If necessary, repeat steps 5 through 7 until the range lights are
properly merged and centered.
