Repair Manual
Macro 5 SLR Camera
71
Date Code Module
1. Removal (Figure 5-16)
a. Remove the left/right cover assembly as explained on page 39.
b. Remove the rear cover assembly as explained on page 45.
c. Remove the bottom cover as explained on page 47.
d. Disconnect electrical cable J16 from the logic PC board.
e Using a torx driver, loosen the six (6) screws securing the camera back to
the cone assembly.
f. Gently lift up the right side of the cone/turret assembly to allow the date
code module to be lifted off and out of its camera back rail slot.

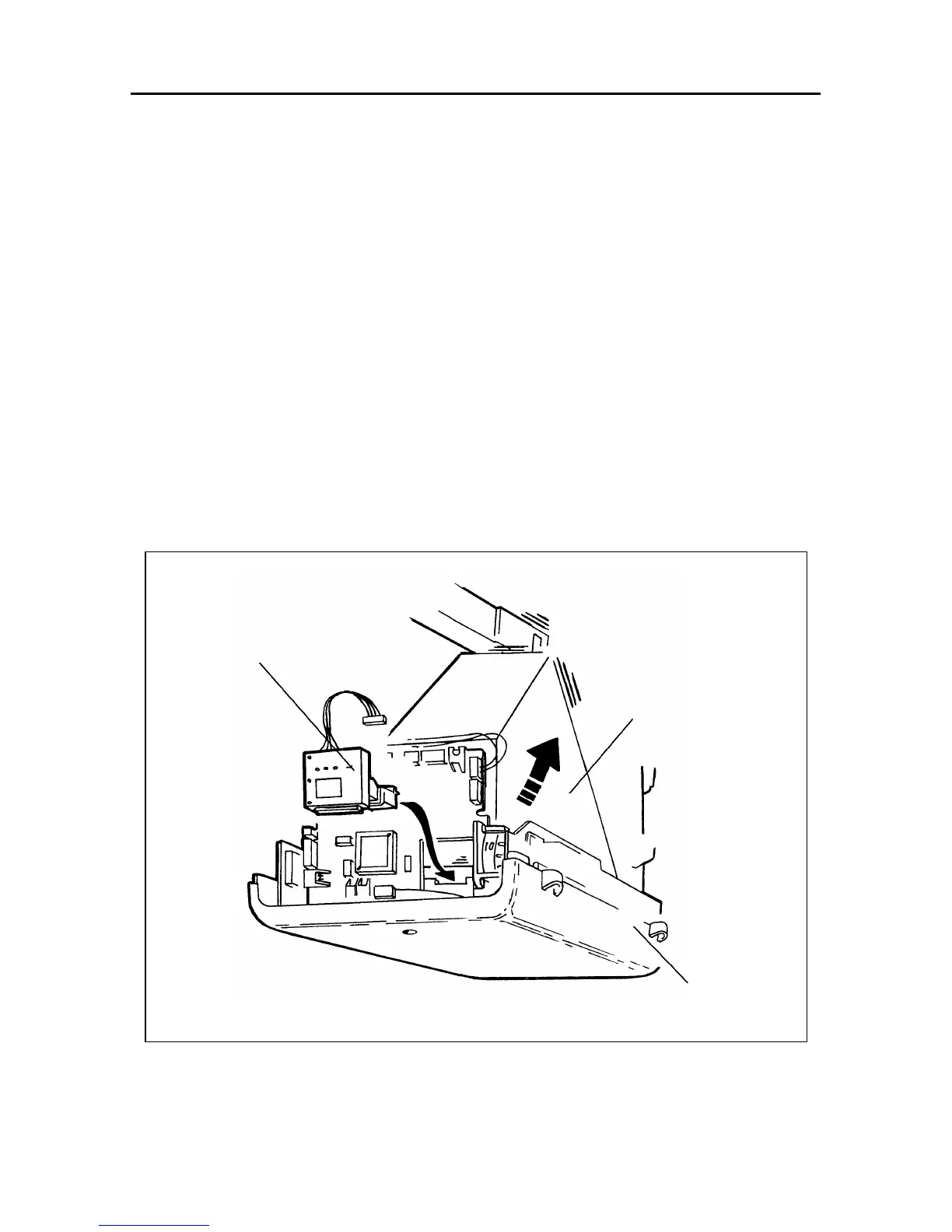

Figure 5-16 Date Code Module
Cone/Turret
Assembly
Date Code
Module
Camera back
