Polaroid Macro 5 SLR Repair Manual

Repair Manual
Macro 5 SLR Camera
65
Turret Assembly
1. Removal (Figure 5-13)
a. Remove the left/right cover assembly as explained on page 39.
b. Remove the encoder plate and PC board as explained on page 62.
c. Using a pair of C-ring pliers, remove the top and lower pivot plate C-rings.
d. Pull out the top and lower turret bushings and then lift out the turret
assembly.

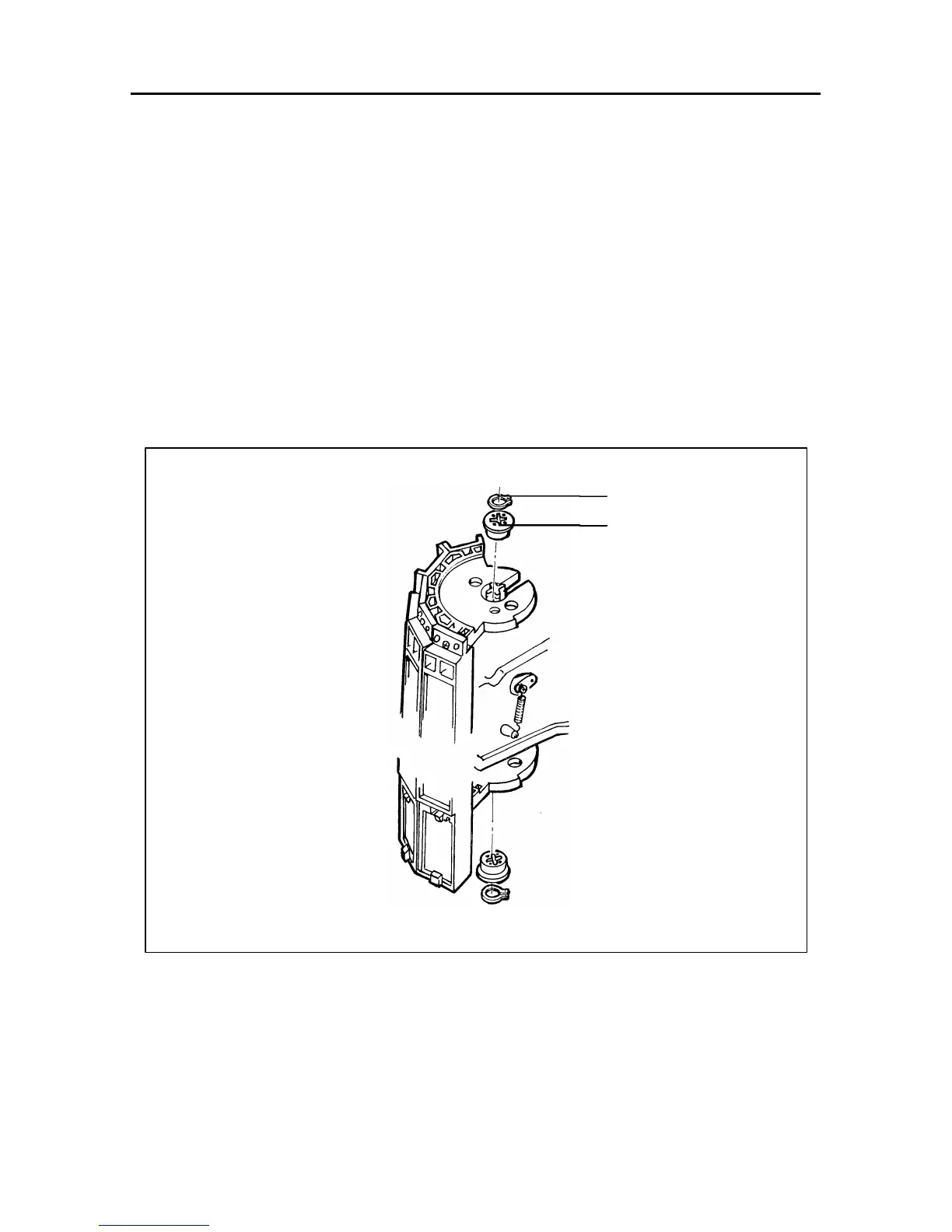

Figure 5-13 Turret Assembly
C-Ring
Turret
Bushing
