Polaroid Macro 5 SLR - Figure 5-5 Bottom Cover; Bottom Cover; Removal (Figure 5-5)

Repair Manual
Macro 5 SLR Camera
47
Bottom Cover
1. Removal (Figure 5-5)
a. Remove the left/right cover assembly as explained on page 39.
Note: This assembly includes the front cover.
b. Remove the rear cover as explained on page 45.
c. Remove the camera back door.
Note: Refer to the user's guide for instructions on how to remove the
camera back door.
d. Using a torx driver, remove the three (3) remaining screws securing the
bottom cover to the camera back.
e. Gently lift the bottom cover from the camera back.

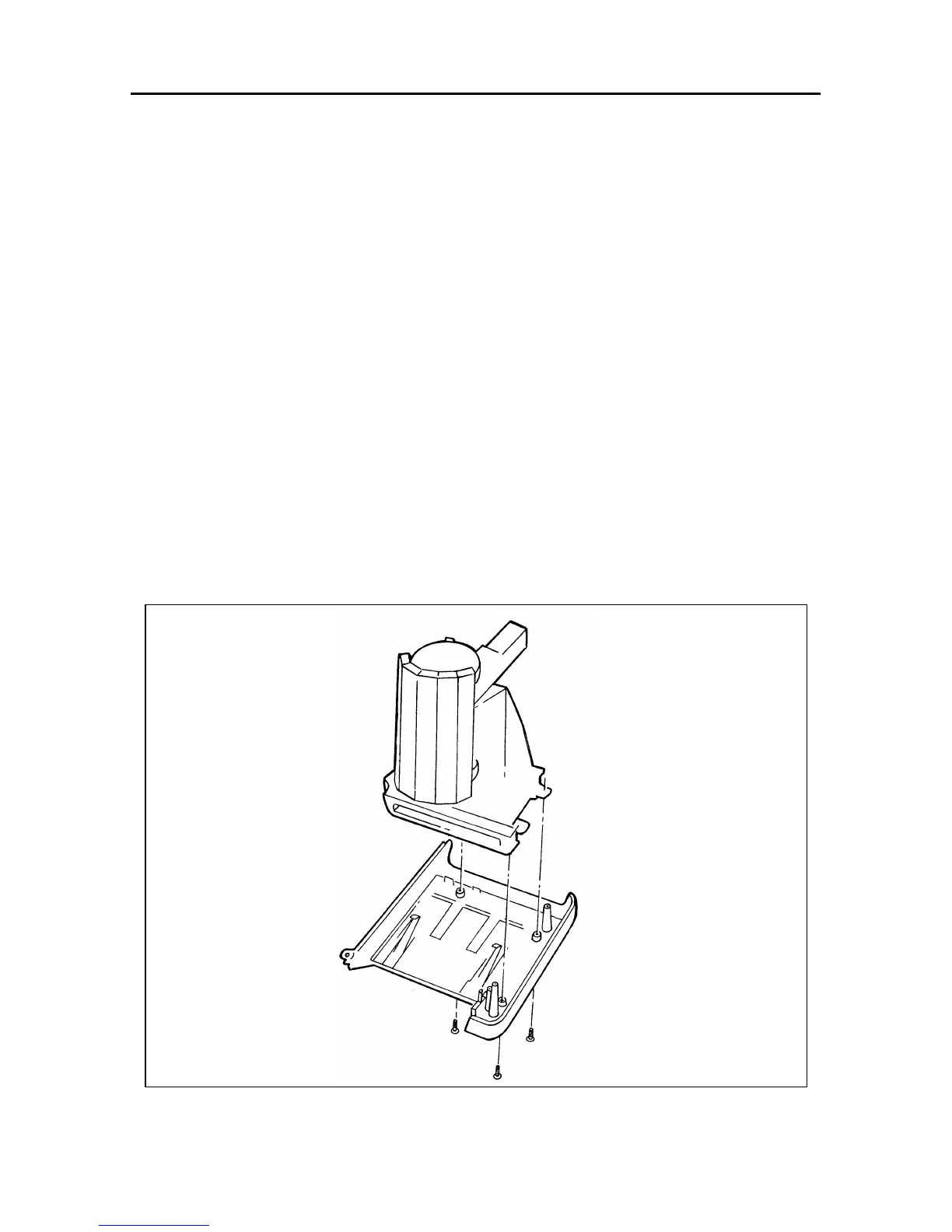

Figure 5-5 Bottom cover
