Polaroid Macro 5 SLR - Figure 5-8 S1;S2 PC Board; Figure 6-1 S1;S2 PC Board; Removal (Figure 5-8); S1;S2 PC Board

Repair Manual
Macro 5 SLR Camera
53
S1/S2 PC Board
1. Removal (Figure 5-8)
a. Remove the left/right cover assembly as explained on page 39.
b. Using a small pair of diagonal pliers, cut the ty-wrap securing the S1/S2
electrical cable to the right strobe cable.
c. Disconnect electrical cable J19 from the logic PC board at rear of camera.
d. Using a torx driver, remove the four (4) screws securing the S1/S2 PC
board to the right hand grip support mounts.
e. Lift out the S1/S2 PC board.
Note: Be careful not to lose the S1/S2 button spring.

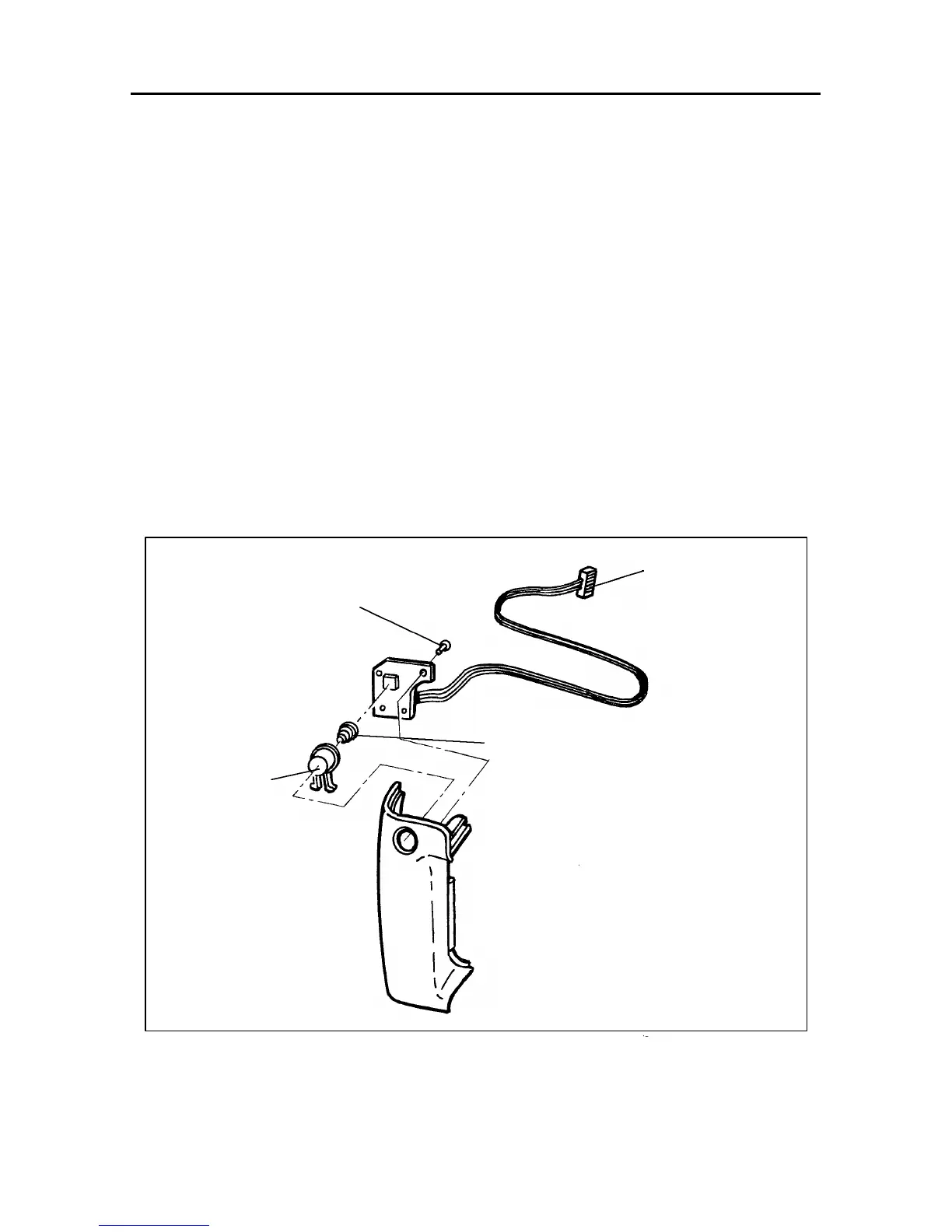

Figure 5-8 S1/S2 PC Board
To J19 on
Logic Board
Screws (4)
S1/S2 Button
Spring
S1/S2
Button
