Polaroid Macro 5 SLR Repair Manual

Repair Manual
Macro 5 SLR Camera
31
Grid Adjustment
Note: Make sure the range lights are properly adjusted before adjusting the
camera grid.
1. Take a picture of the test target.
2. Using a felt tip pen, draw diagonal lines from corner-to- corner on the picture
of the test target (Figure 3-4).

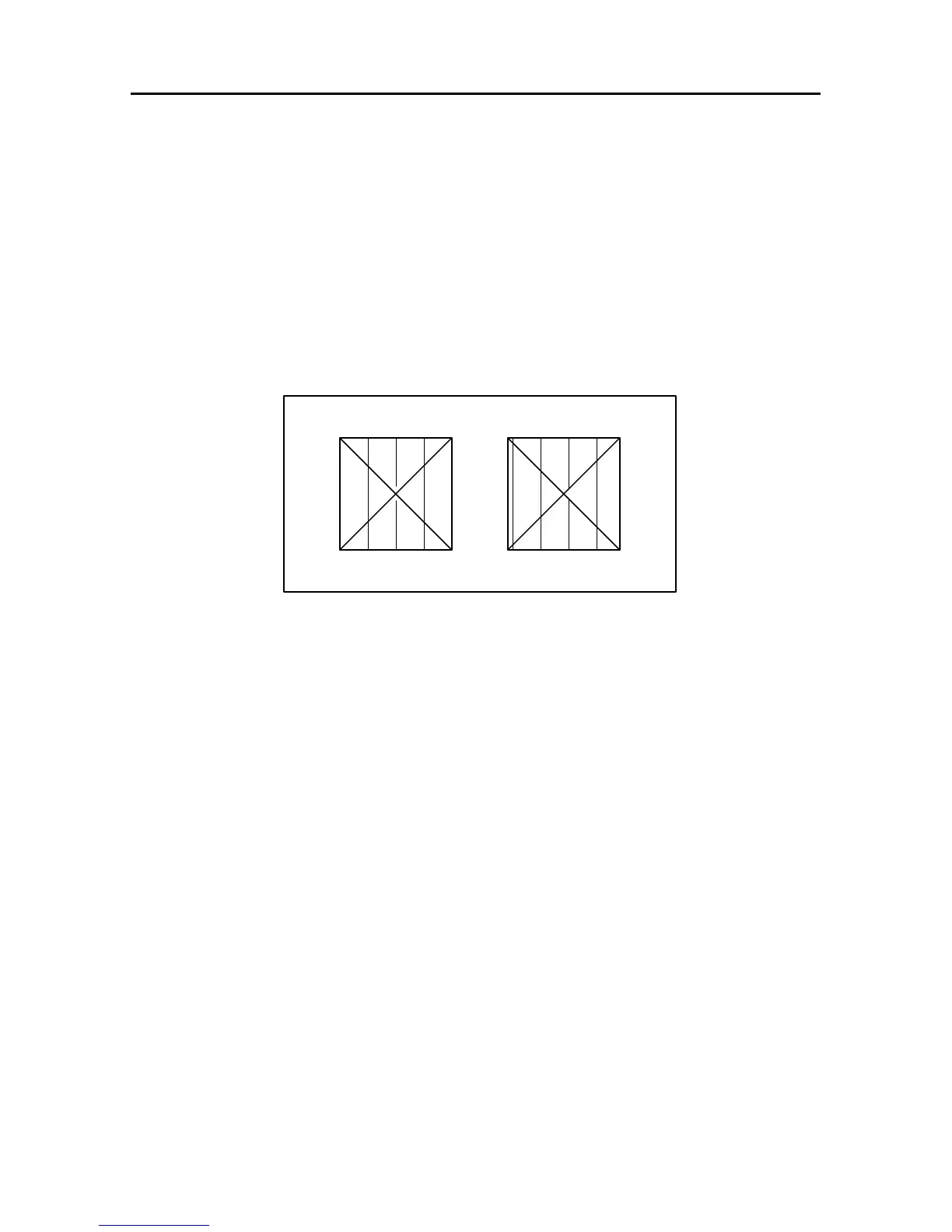

Figure 3-4 Grid Position
Notes: • If the diagonal lines intersect in the center of the grid pattern, no
adjustment is needed.
• If the diagonal lines do not intersect in the center of the grid pattern,
proceed to step 3 and adjust the position of the grid as needed.
3. Manually adjust the position of the grid as follows:
• If applicable, remove the front cover as explained in section 5 of this
service manual.
• Turn the applicable adjustment screw (Figure 3-5) until the grid is properly
centered.
4. Repeat steps 1 through 4 until the grid is properly centered.
Correct Incorrect

Polaroid Macro 5 SLR Specifications

General

Brand	Polaroid
Model	Macro 5 SLR
Category	Digital Camera
Language	English
