Polaroid Macro 5 SLR Repair Manual

Repair Manual
Macro 5 SLR Camera
69
Bulb (Aim Light) Bracket Assembly
1. Removal (Figure 5-15)
a. Remove the left/right cover assembly as explained on page 39.
b. Remove the rear cover assembly as explained on page 45.
c. Disconnect electrical cable J14 from the logic PC board.
d. Using a torx driver, remove the screws securing the aim lights.
e. Pull out the aim light cable assembly - includes both aim lights.

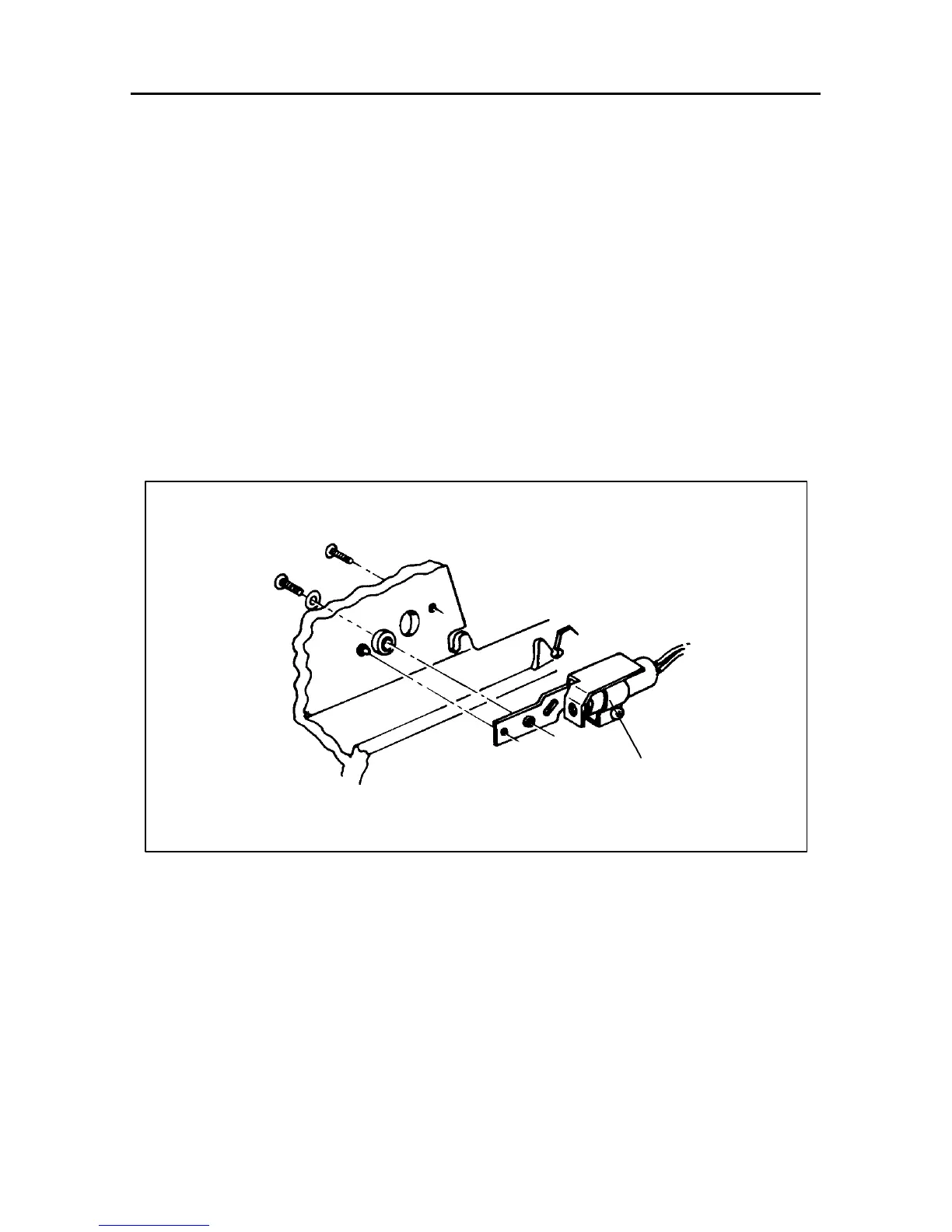

Figure 5-15 Aim Light Cable Assembly
Aim Light
Bracket Assembly
