Repair Manual
Macro 5 SLR Camera
8
General
The Polaroid Macro 5 SLR (Figure 1-1) is a fully automatic, close-up portable
camera. It is designed for medical and dental documentation, quality control, law
enforcement, and other applications that requires close-up photographs.
The Macro 5 SLR has two built-in electronic flash units that provide even
illumination. It also has a microprocessor-controlled exposure system that
automatically sets the camera for correct exposure at all magnification settings.
The Macro 5 SLR produces automatic exposures at:
• 0.2x (20%)
• 0.4x (40%)
• 1x (100%)
• 2x (200%)
• 3x (300%)
The lens for each exposure setting is self-contained within the camera's manually
rotating turret, so there is no need to attach any accessories when changing
camera magnification.

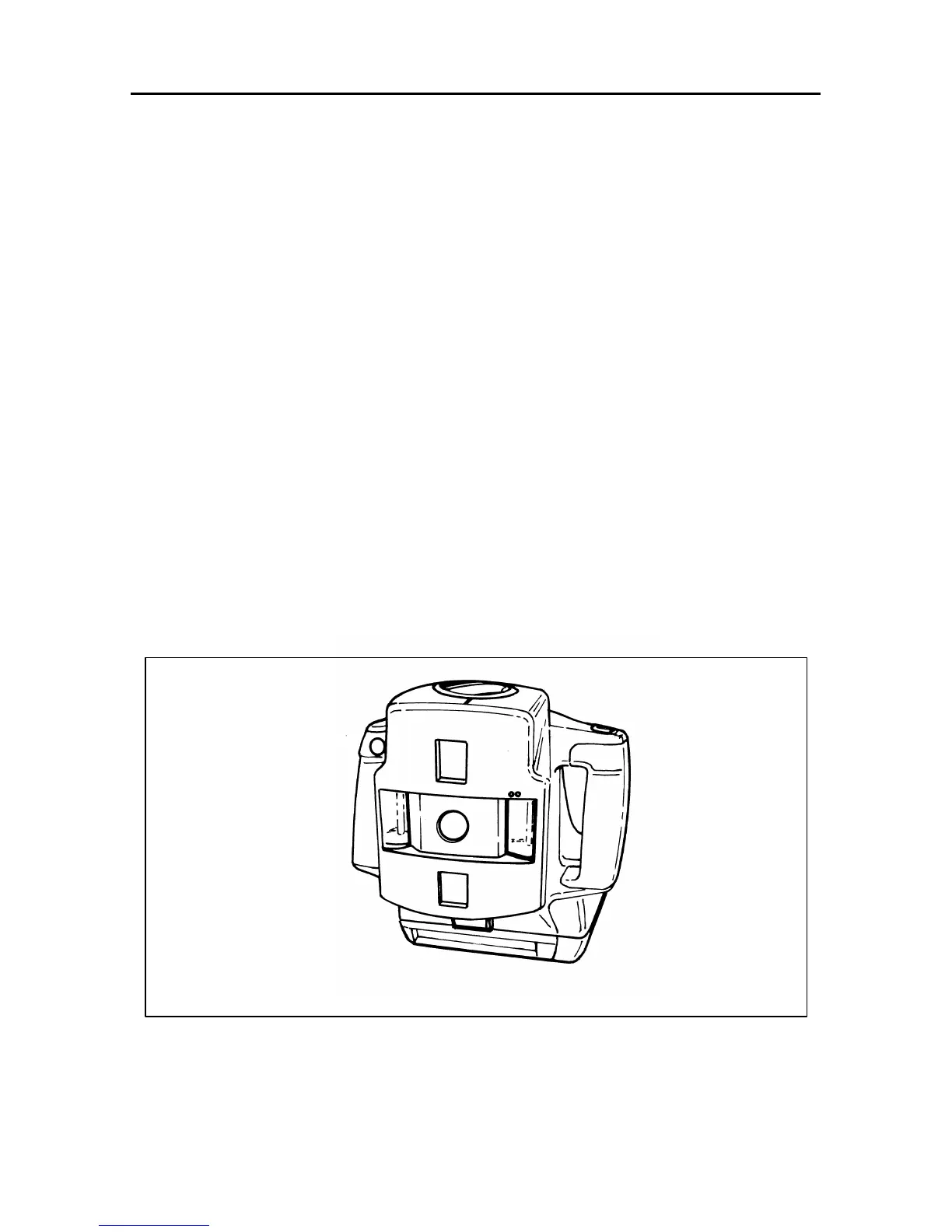

Figure 1-1 Macro 5 SLR Camera
