Polaroid Macro 5 SLR Repair Manual

Repair Manual
Macro 5 SLR Camera
55
Control Panel
Note: Use a dump stick to fully discharge the strobe capacitors before
attempting to remove or replace the control panel.
1. Removal (Figure 5-9)
a. Remove the left/right cover assembly as explained on page 39.
b. Remove the rear cover assembly as explained on page 45.
c. Remove the bottom cover as explained on page 47.
d. Disconnect the white ribbon cable from the logic PC board.
e. Gently pull out the control panel. (This disconnects the control panel from
male connector J27 on the logic PC board).
f. Disconnect electrical cable J11 (X-Sync IN/OUT) from the logic PC board.
Note: Be careful not to break the two black wires soldered to the
X-Sync receptacle on the control panel.

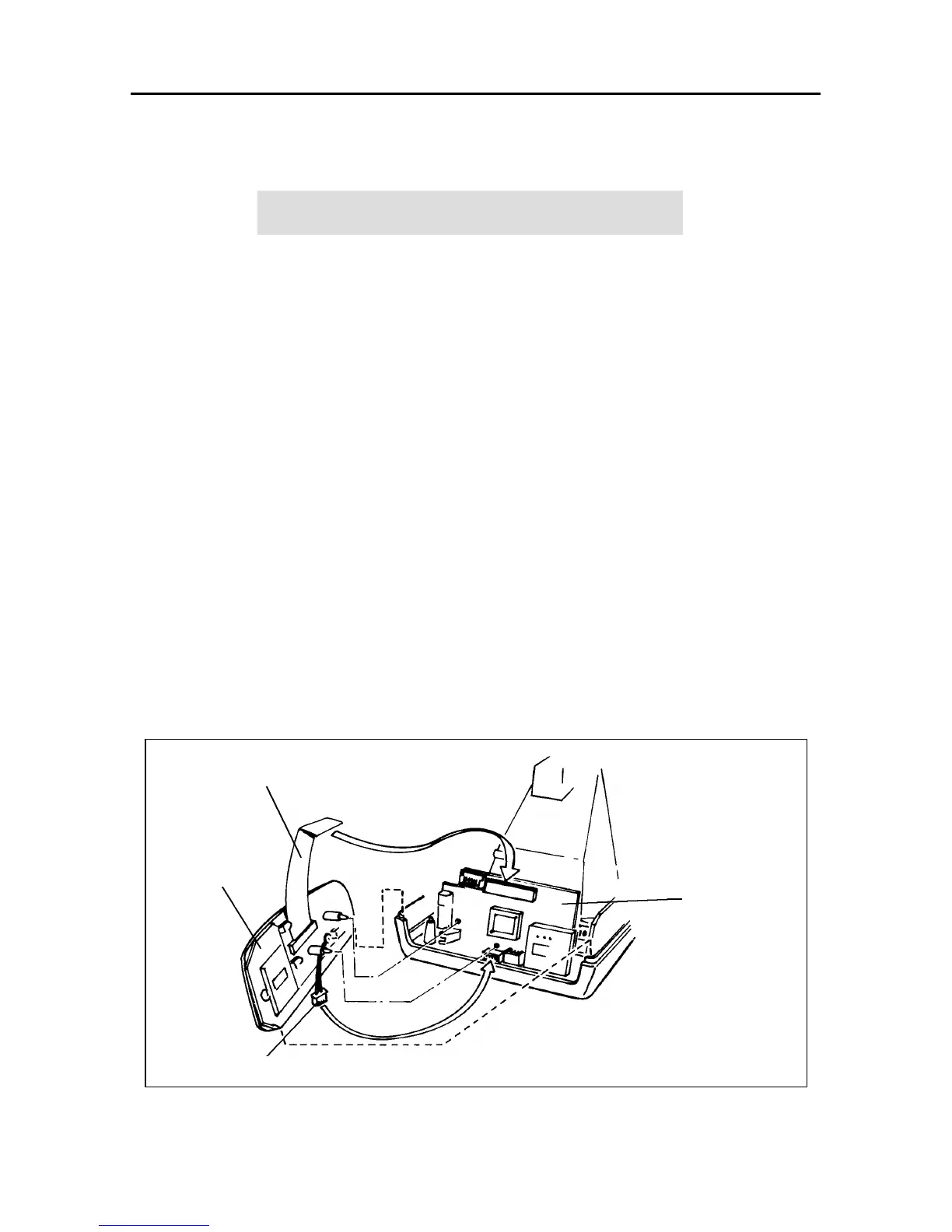

Figure 5-9 Control Panel
Caution: Shock Hazard - High Voltage
White Ribbon
Cable
J11 Electrical
Cable
Control
Panel
Logic PC
Board
