Polaroid Macro 5 SLR - Figure 5-14 Shutter Solenoid Assembly; Removal (Figure 5-14); Shutter Solenoid Assembly

Repair Manual
Macro 5 SLR Camera
67
Shutter Solenoid Assembly
1. Removal (Figure 5-14)
a. Remove the left/right cover assembly as explained on page 39.
b. Disconnect the solenoid cable wires from the solenoid pins.
c. Using tweezers, disconnect the shutter extension spring from the shutter
pivot post.
d. Using a torx driver, remove the two (2) screws securing the solenoid
assembly to the viewfinder housing.
e. Lift out the solenoid assembly being careful not to lose the solenoid
plunger.

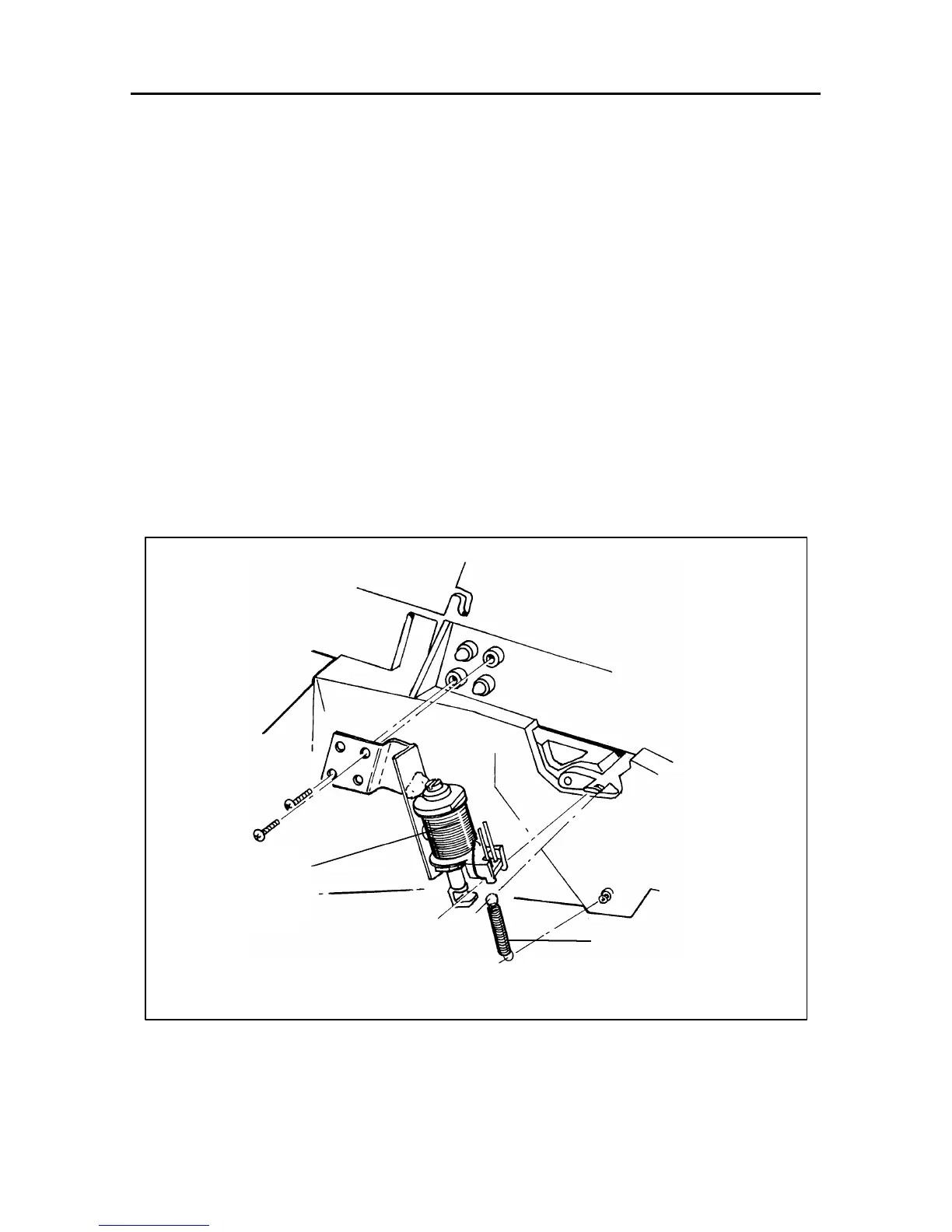

Figure 5-14 Shutter Solenoid Assembly
Extension
Spring
Solenoid
