Polaroid Macro 5 SLR Repair Manual

Repair Manual
Macro 5 SLR Camera
41
Note: Front cover assembly is still attached to the left/right cover
assembly.
n Disconnect both trigger cables (J31) from the trigger PC boards
(Figure 5-2a).
Note: This should free the left/right - front cover assembly from the rear
cover and camera back.

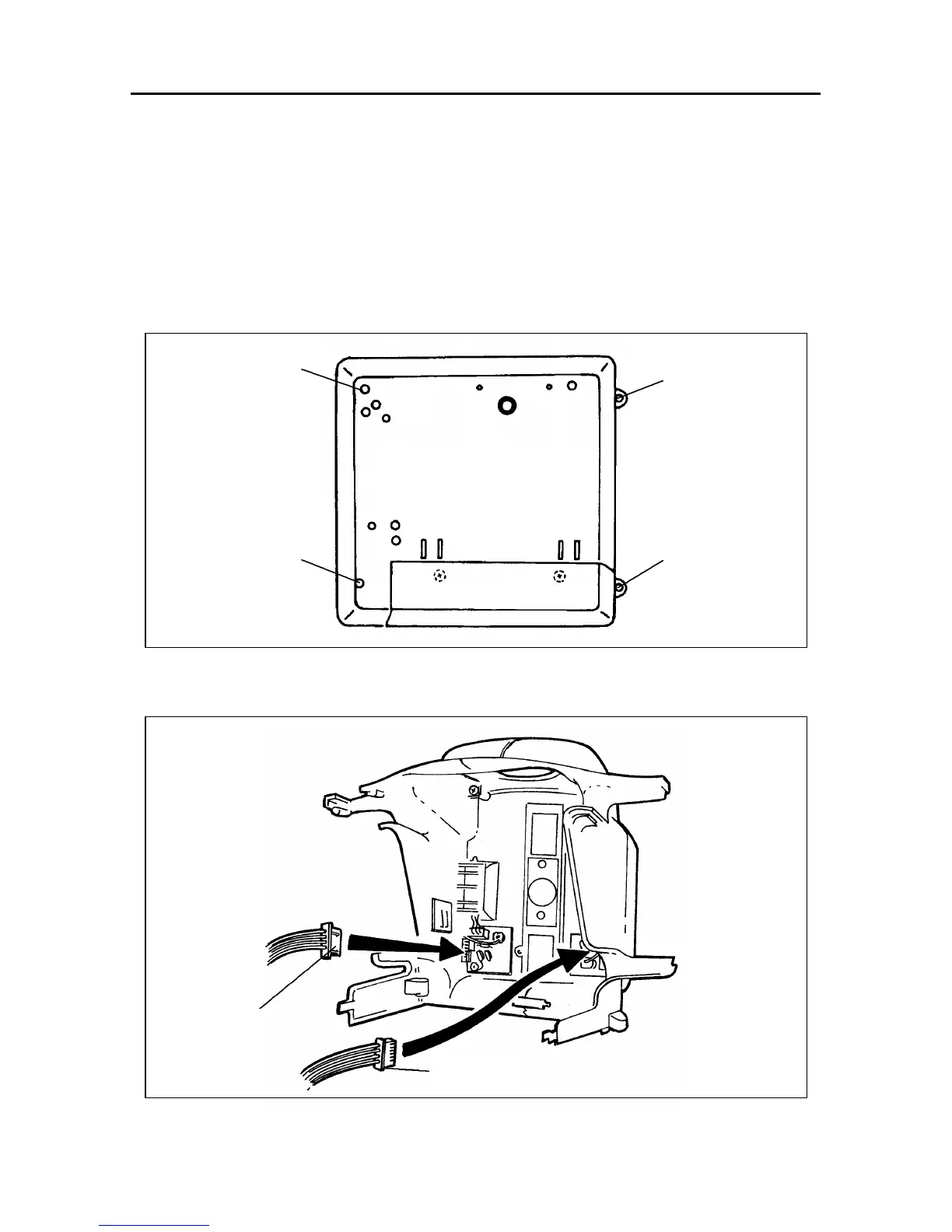

Figure 5-2 Left/Right Bottom Screw Location
Figure 5-2a Trigger Cables
Screw
location
for Right
Cover
Screw
location
for Left
Cover
Screw
location
for Rear
Cover
Screw
location
for Rear
Cover
To J31
To J31
