Repair Manual
Macro 5 SLR Camera
60

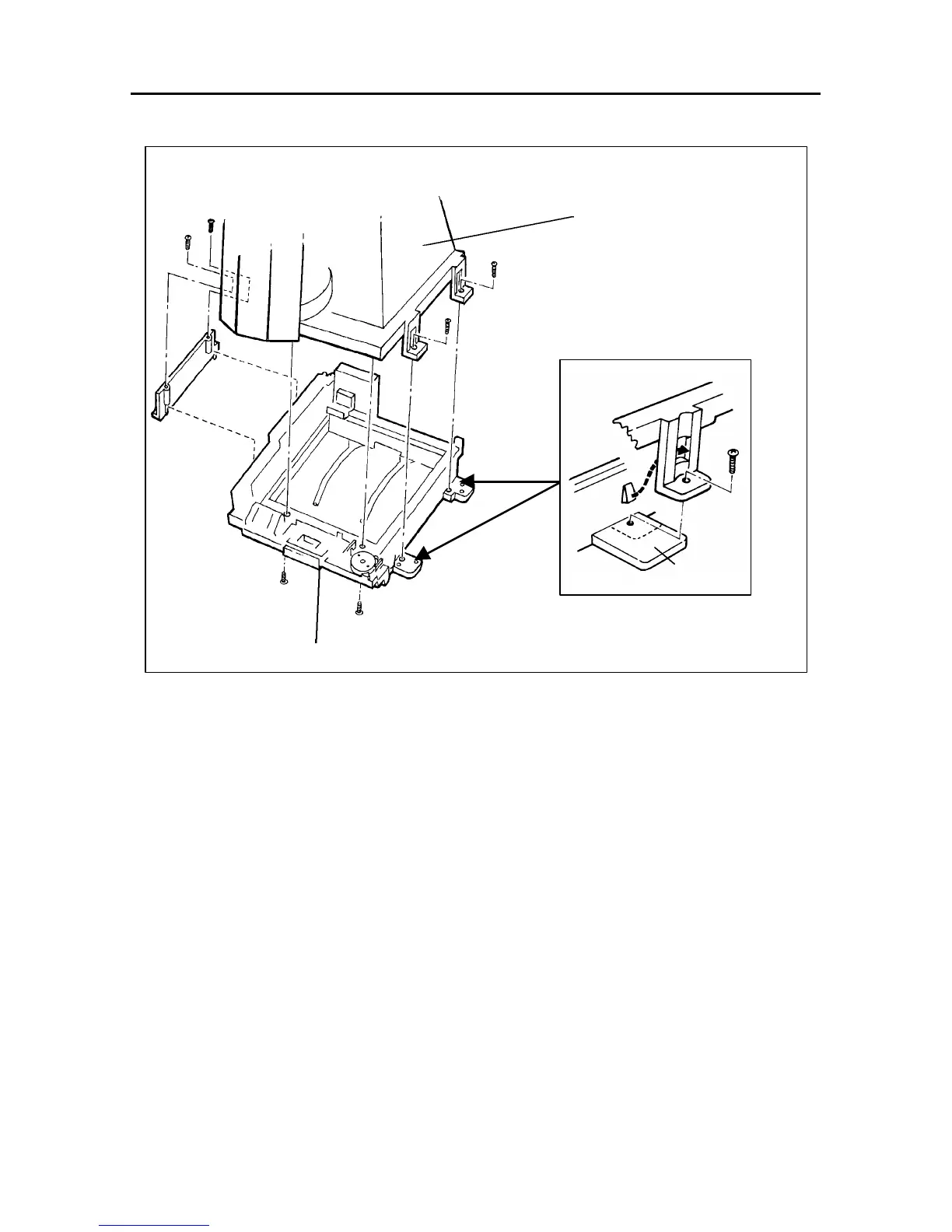

Figure 5-11 Camera Back
2. Reassembly
a. Place cone/turret assembly onto the camera back.
Notes: Make sure the:
• Cone alignment holes are properly located over the camera back
pins.
• Plastic support plate is properly positioned on the on the gear side
of the camera back; for proper screw hole alignment.
• Strobe and logic PC boards, and control panel are properly
positioned on the camera back.
b. Using a torx driver, install and tighten the six (6) screws that secure the
camera back to the cone assembly.
Cone
Assembly
Support
Plate
Camera Back
To Next Page
