POLMAR DB-50M - Mobile Installation and Power Connection

Initial Installation
◊ Mobile installation
To install the transceiver, select a safe, convenient location
inside your vehicle that minimizes danger to your passengers
and yourself while the vehicle is in motion. Consider installing
the unit at an appropriate position so that knees or legs will not
strike it during sudden braking of your vehicle. Try to pick a well
ventilated location that is shielded from direct sunlight.

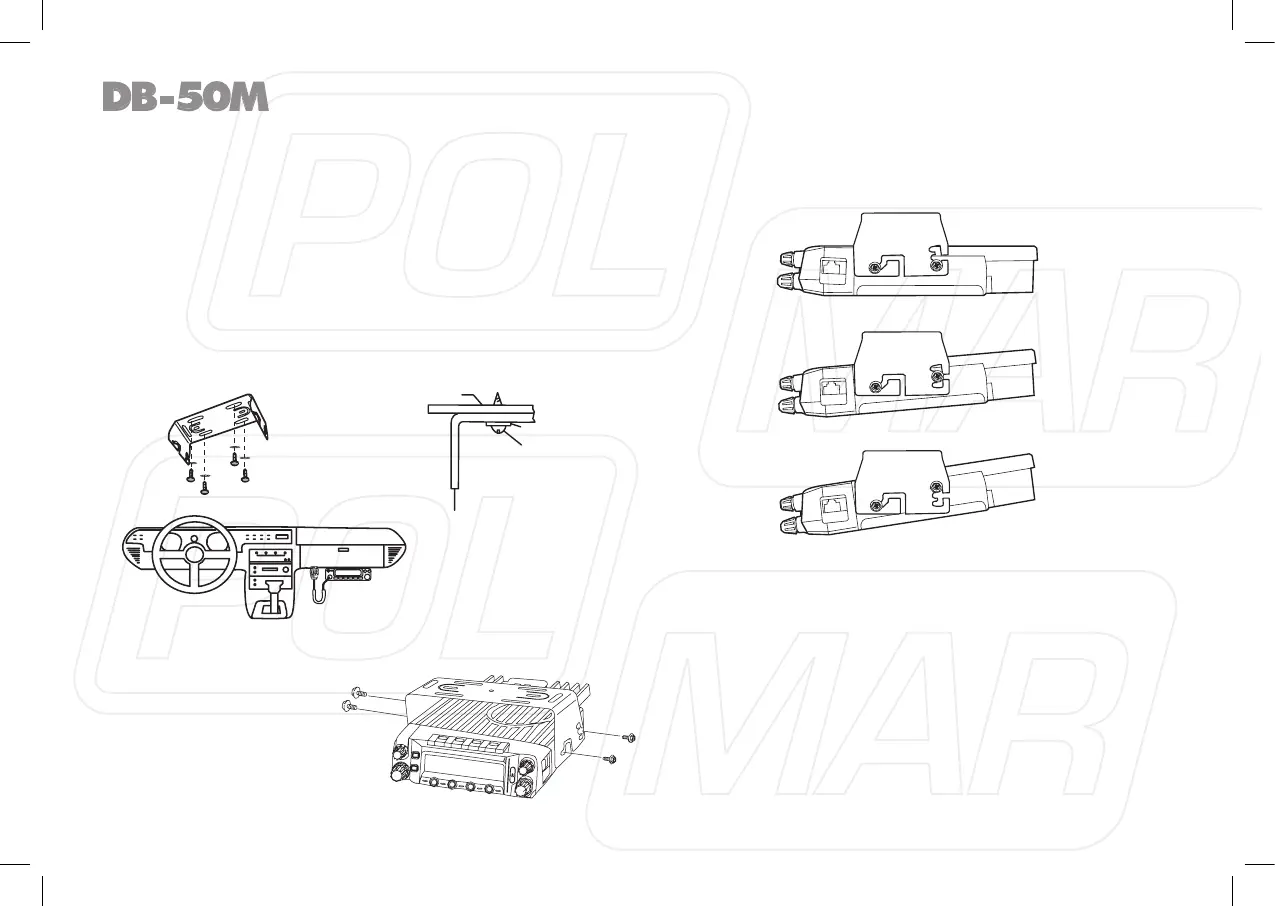

1. Install the mounting bracket in the vehicle using the supplied
self-tapping screws (4 pcs) and at washers (4 pcs).
2. Position the transceiver, then insert and tighten the supplied
hexagon SEMS screws.
• Double check that all
screws are tightened
to prevent vehicle
vibration from loos-
ening the bracket or
transceiver.
• Determine the appropriate angle of the transceiver, using the
3 screw hole positions on the side of the mounting bracket.
6
Car body
Mounting bracket
Washer (M5)
Tapping screw
(M5X20mm)
