Polycom SoundPoint IP 670 User Manual

Using the SoundPoint IP Color Expansion Module
5 - 3
Connecting the SoundPoint IP Color Expansion Module
This section describes how to attach the SoundPoint IP Color Expansion
Module to your phone. You can attach up to three SoundPoint IP Color
Expansion Modules.

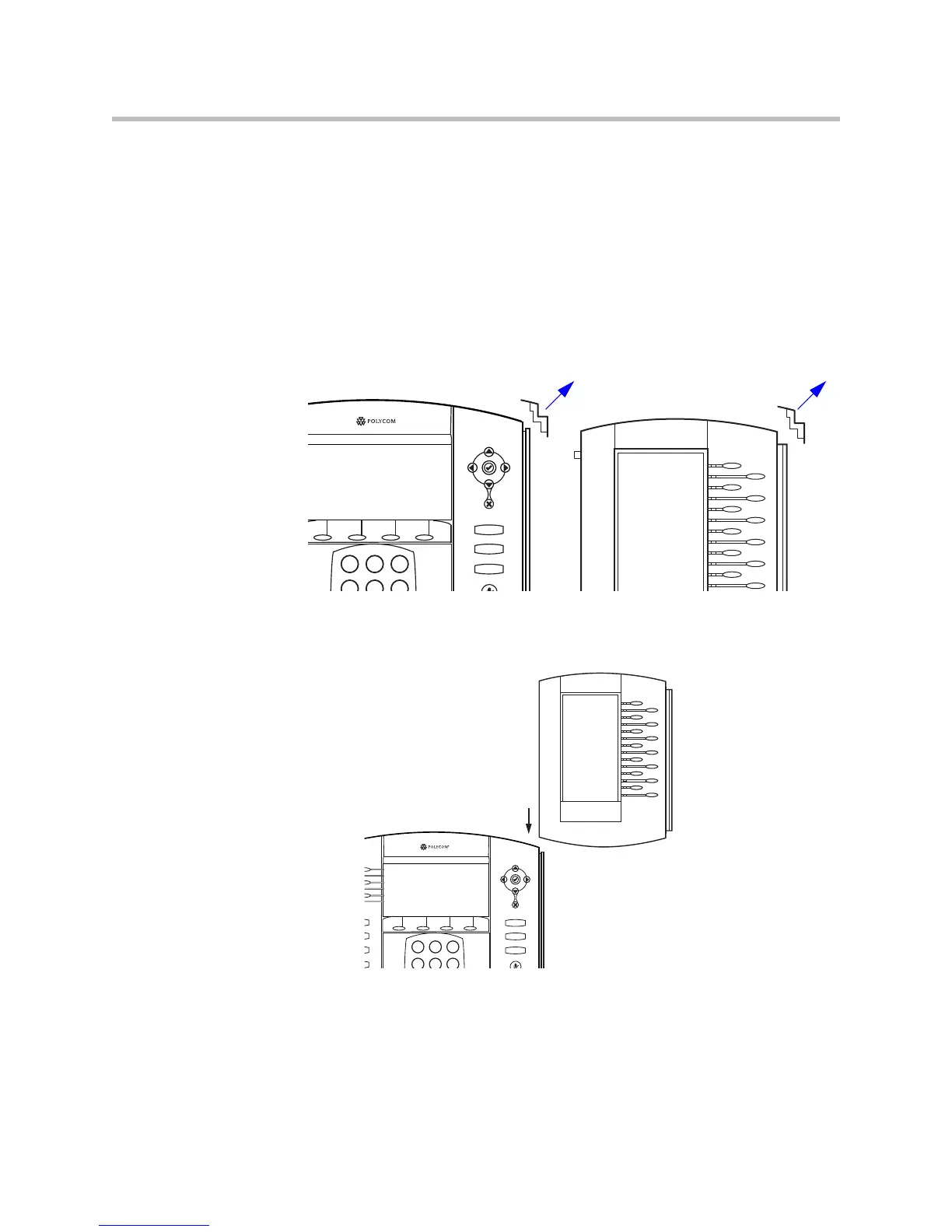

To connect a SoundPoint IP Color Expansion Module to your phone:
1. Remove the rubber plug from the SoundPoint IP 670 phone or the
SoundPoint IP Color Expansion Module.
2. Align the SoundPoint IP Color Expansion Module at the top of the groove
lines on the SoundPoint IP 670 phone and slide it downwards until it
clicks into position.
3. Connect the base stand by aligning the two protrusions on the stand to
the holes on the back of the Color Expansion Module and snap it into
place.
For each SoundPoint IP Color Expansion Module that you want to add, repeat
steps 1 to 3.
ABC
21
DEF
3
54
MNOJKLGHI
6
Menu
Messages
Do Not Disturb
s
ns
e
ABC
21
DEF
3
54
MNOJKLGHI
6
Menu
Messages
Do Not Disturb

Polycom SoundPoint IP 670 Specifications

General

Voice codecs	G.711, G.722, G.729
Noise reduction	Yes
Microphone frequency	150 - 7000 Hz
Caller ID	-
Phonebook capacity	- entries
Security algorithms	HTTPS
Supported network protocols	SNTP/FTP/TFTP/HTTP
Display resolution	320 x 160 pixels
Ethernet LAN (RJ-45) ports	2
Product type	IP Phone
Product color	Gray
Dimensions (WxDxH)	265 x 190 x 150 mm
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	20 - 85 %
Certification	FCC, RoHS, CE
Harmonized System (HS) code	85171800

Weight and Dimensions

Weight	1260 g
