n Always use the line cable delivered with the control unit.
n Ensure, that the line cable is only connected to either
115 V AC or 230 V AC.
n Ensure, that the power supply of the control unit is protected by
an external fuse type 2A MDL (at 230 V AC) or
4A MDL (at 115 V AC).

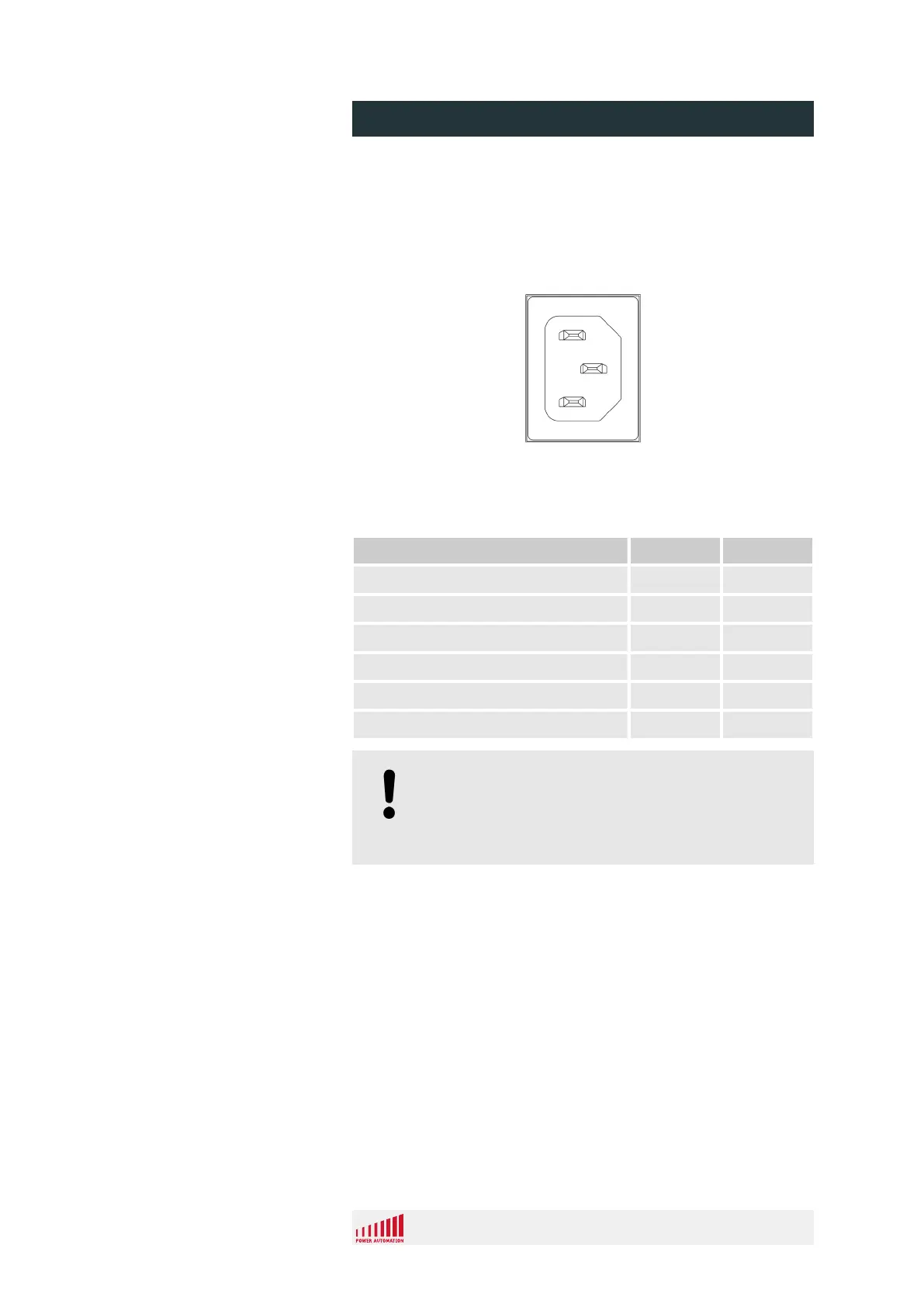

Fig. 25: Power supply connector
Power supply properties
Property Value Unit
Voltage 115 - 240 V AC
Tolerances +10 / -15 %
Frequency 50 - 60 Hz
Maximum current (at 115 V) 4 A
Maximum current (at 230 V) 2 A
Maximum power consumption 180 W
NOTICE!
Damage to the control unit!
Supply voltages not supported can cause damage to
the control unit.
(X1) Main Power Supply (1)
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 50
