The control unit is equipped with a VGA connector to connect
graphic displays.
n Only use either with PA operator's panels or a standard VGA
compatible monitor.

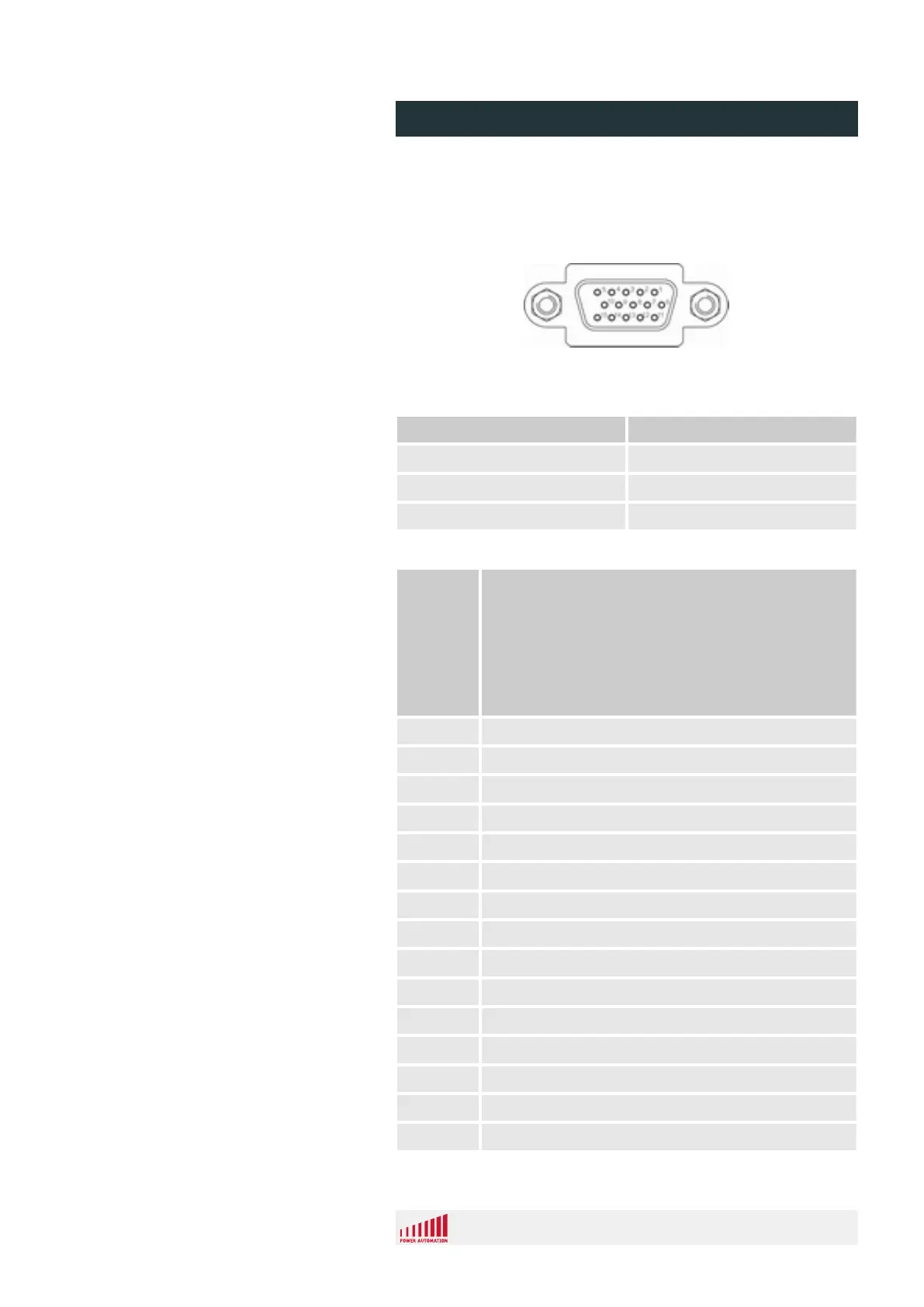

Fig. 26: VGA connector (Sub-D 15)
Property Value
Pins 15
Connector type sub D (high density)
Gender female
Pin
( Ä “(X4)
VGA
Con-
nector
(2)”
on page 51
)
Assignment
1 RED
2 GREEN
3 BLUE
4 not used
5 GND
6 RED GND
7 GREEN GND
8 BLUE GND
9 KEY
10 SYNC GND
11 Monitor ID 1
12 Monitor ID 2
13 HSYNC
14 VSYNC
15 not used
(X4) VGA Connector (2)
PA 8000 EL CNC control unit
Design and function
24.09.2015 | 51
