UPS Electrical Installation
44
Powerware
®
9170
+
UPS User’s Guide S Rev B www.powerware.com

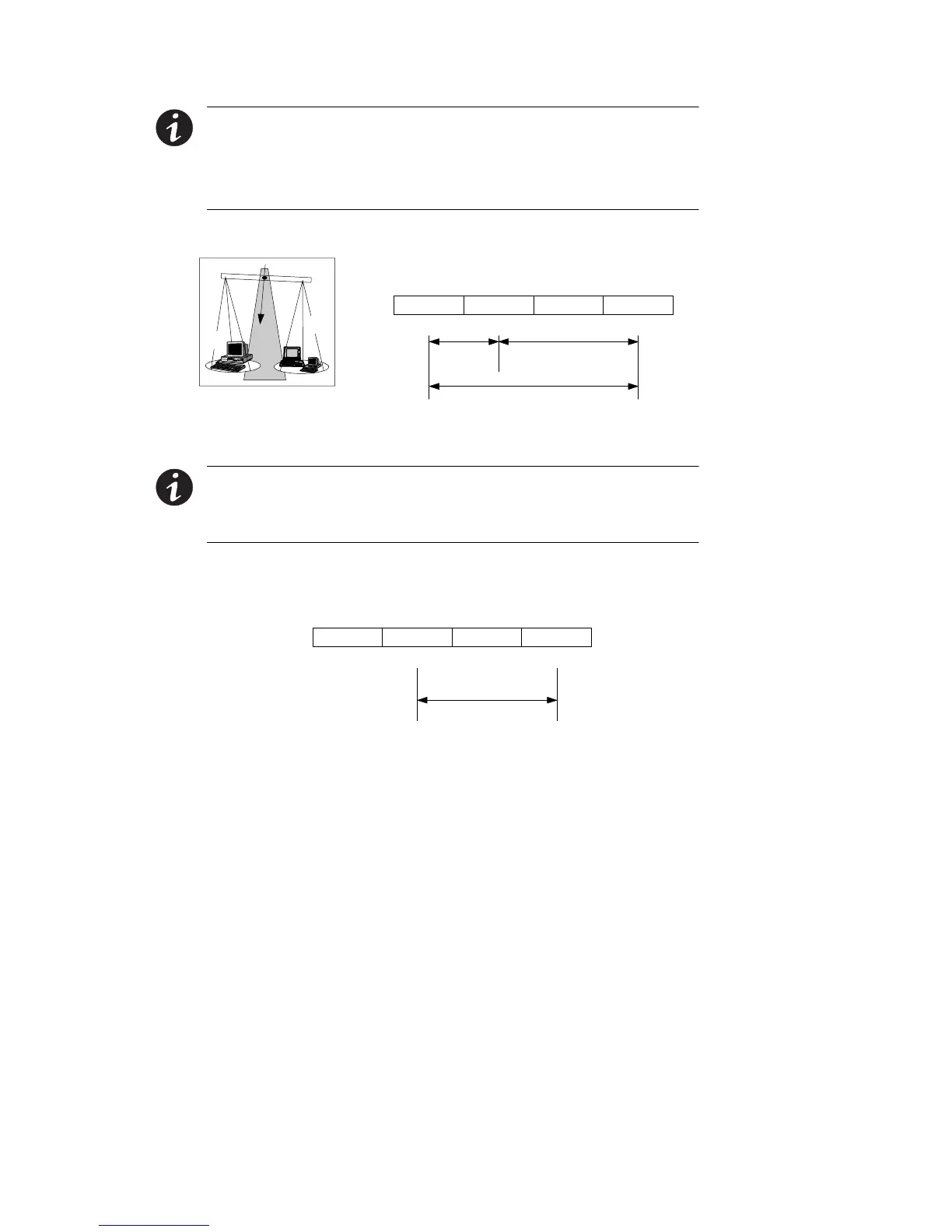

NOTE For Powerware 9170
+
UPS models with low -voltage hardwire
output, it is recommended to divide the total load as equally as possible
between X1 and X2, as shown in Figure 29.
NOTE Failure to balance the loads may cause an overload alarm even if
the full capacity of the UPS has not been reached.
N/-DC
50 or 60 Hz
100/200, 110/220, 127/220, 120/208, or 120/240V Out
Parameter 4-2-4 set to 200, 220, 208, or 240, as required.
X2 X1
XX
NL1
X
L2
100, 110, 127, or 120
50%
200, 220
208, or 240
100, 110, 127, or 120
50%
X1
X2
Figure 29. Split-Phase Power Modules with Non-Isolated Output
NOTE The factory-default wiring for all high-voltage receptacles in a
chassis without a power cord is 3 -wire plus ground input. If you have a
Universal Power Module (ASY-0674), all receptacles MUST be re-wired
for a 2-wire plus ground input configuration as shown in Figure 30.
N/-DC
50 or 60 Hz
200, 208, 220, 230, or 240V Out *
Parameter 4-2-4 set to 200, 208, 220, 230, or 240, as required.
X2 X1
XX
L2/NL1
*
Figure 30. Universal Power Modules with Non -Isolated Output
