UPS Startup
73
Powerware
®
9170
+
UPS User’s Guide S Rev B www.powerware.com
4. The output voltage is the most important operating parameter
you must set as part of the initial configuration screens. Select
the desired UPS output voltage using the
Y
and
B
buttons.
Possible selections are 200, 208, 220, 230, and 240 Vac. (Low
voltages are derived from these voltages, as listed in Table 5 on
page 32 and Table 9 on page 51.) Press the
buttonwhenthe
desired output value is displayed.
5. If the system includes any external battery cabinets, record the
ampere-hour capacity of batteries installed in these cabinets. If
using a standard cabinet, count the number of battery strings
(two battery modules, side-by-side equals one string). Each
battery string contains 7.2 ampere-hours. Enter the total value in
the next startup screen.

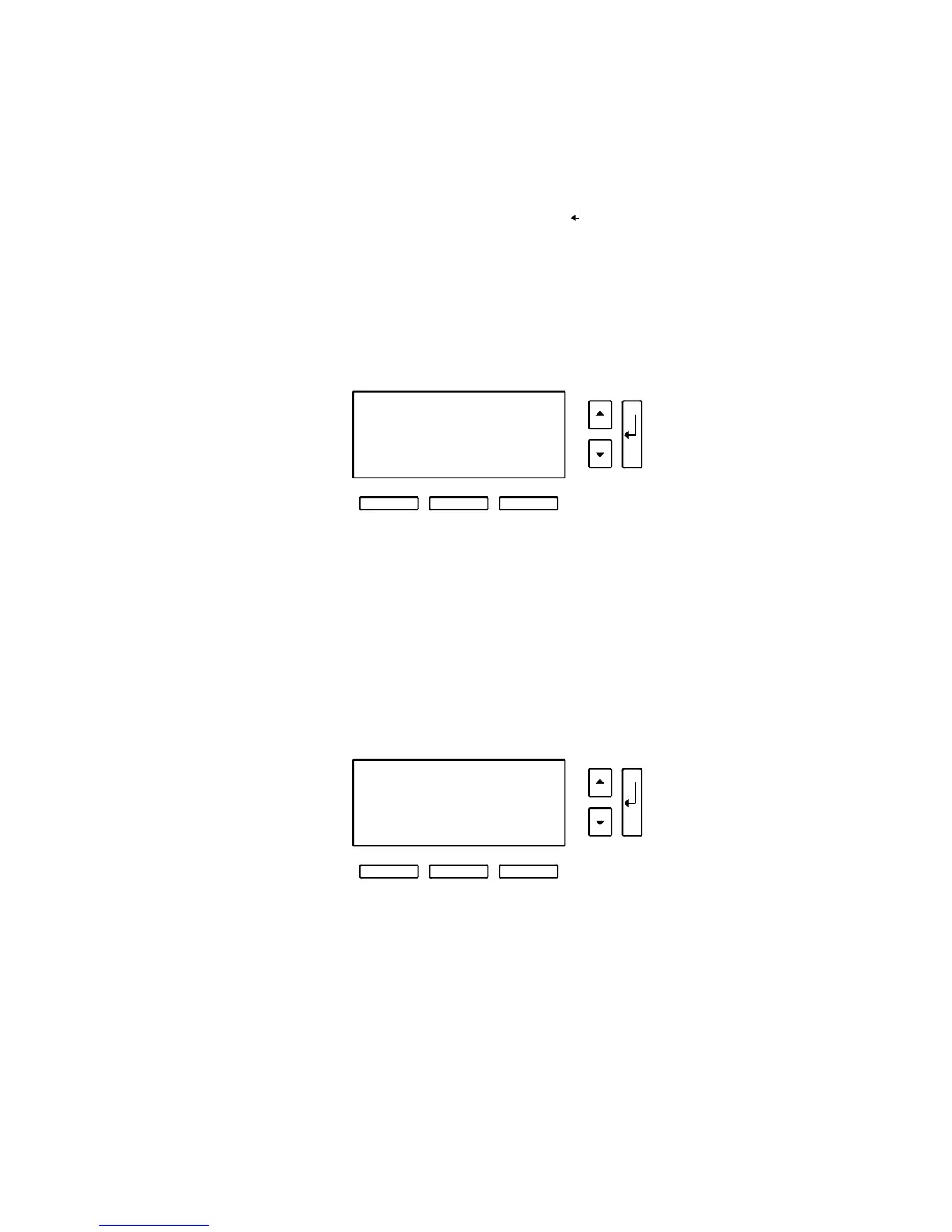

External Capacity
extamphr 0028.8
<- -> ESC
6. The system signals an alarm when the required output cannot
be maintained with the loss of r edundant power modules. The
alarm is essentially disabled with a redundancy level set at 0.
If you want the system to notify you when the number of
redundant power modules is less than a specified level, enter a
redundancy level. Each increment above 0 indicates the number
of modules that can be removed from operation before the
alarm occurs. This setting only affects the alarm; the system
continues to operate as an N+X system even if this parameter is
left at the d efault value of 0.
Set Redundancy
RSetting 0
<- -> ESC
