RS-485 Serial Cable

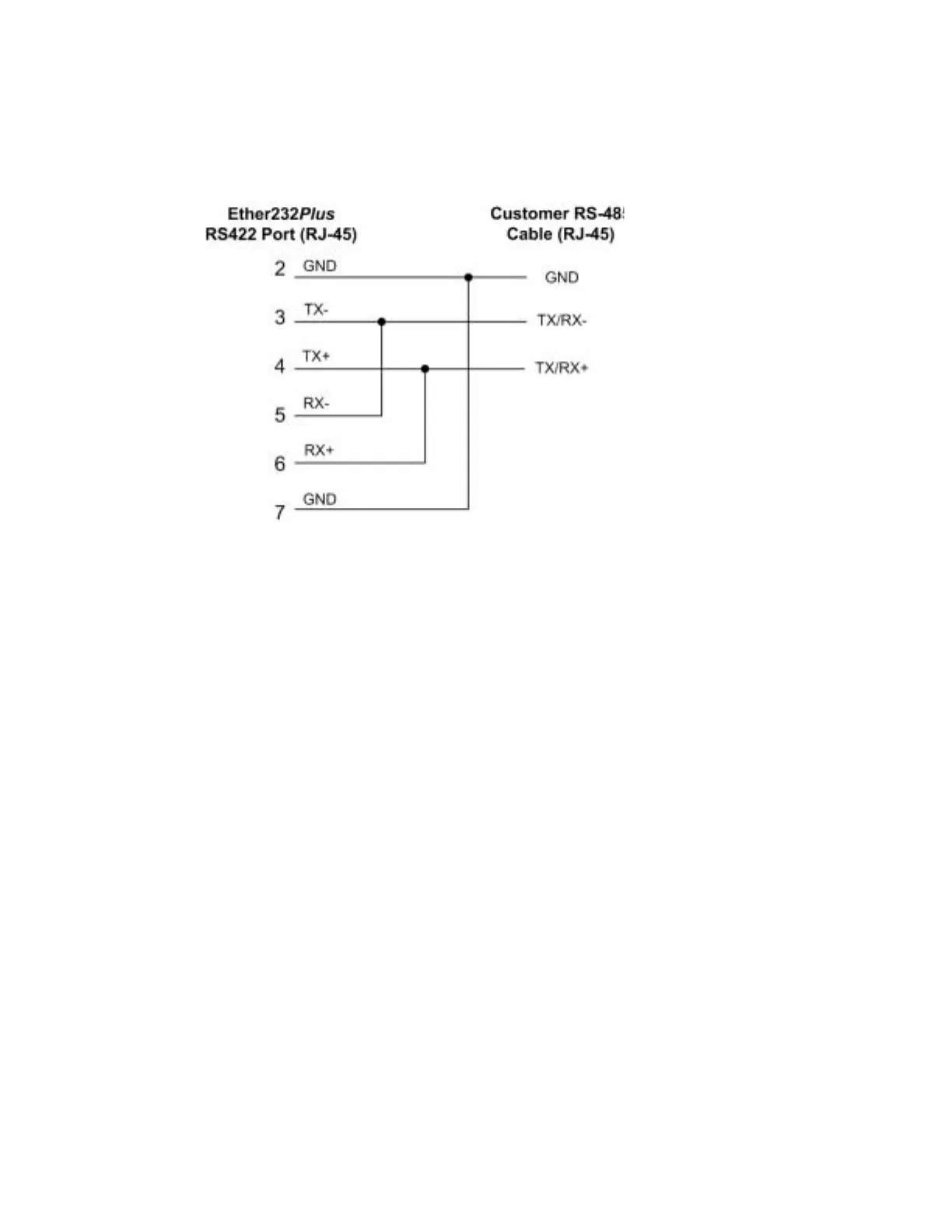

If you are connecting an RS-485 serial device to the Ether232Plus you will need a
2-wire cable with an RJ-45 connector as illustrated below:
