Review entire procedure before starting.
Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the MC, see "Motor Controller (MC) Replacement" on page101.
3.
Use a #2 Philips screwdriver to remove the MC top cover screw fastener.
4. Use a small standard screwdriver to release the four mounting tabs and carefully lift the
MC top cover from the main housing. Disconnect the power cable connector and
remove the top cover. Retain fastener for installation.
5.

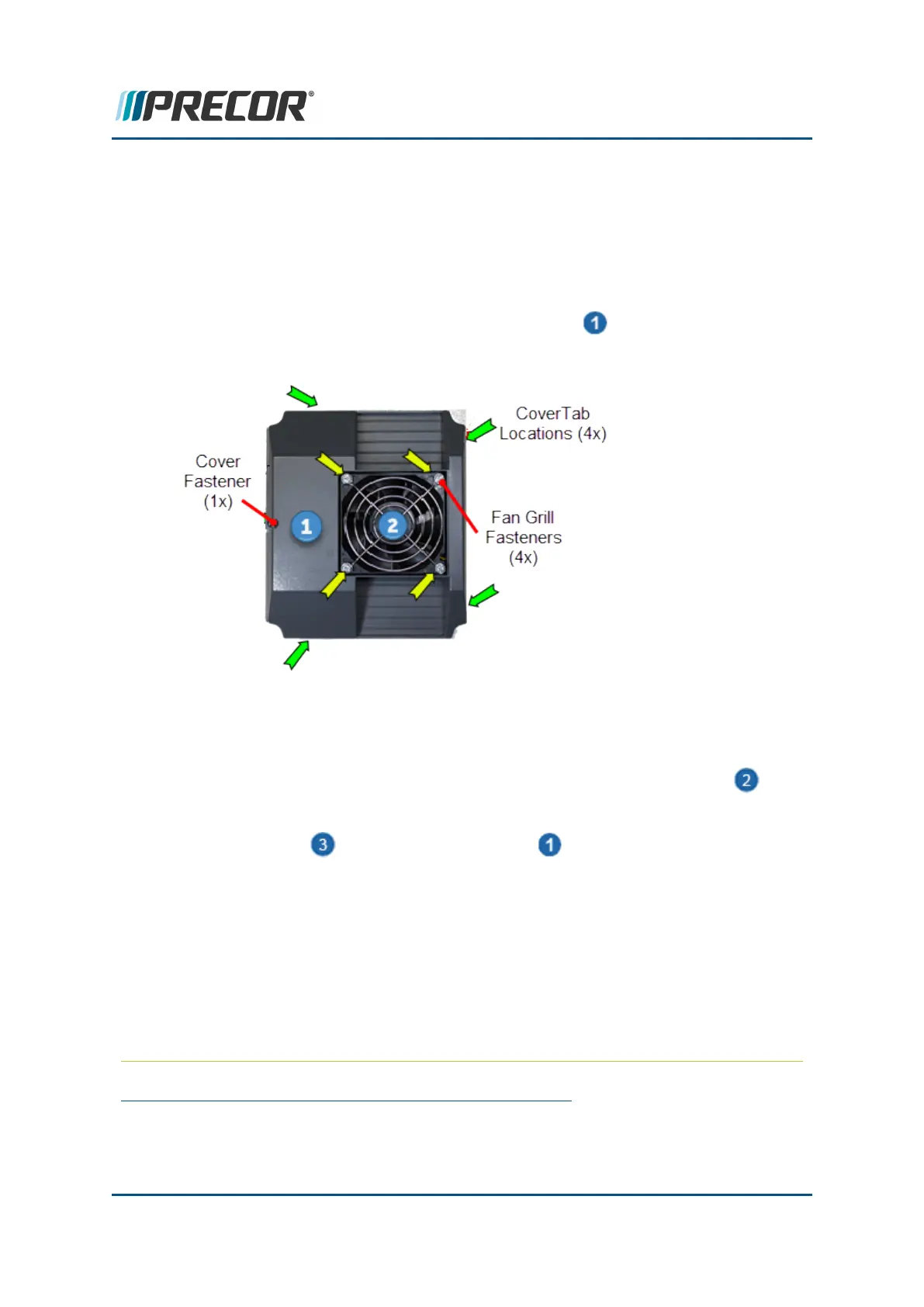

Use a #2 screwdriver to remove the four fan fasteners and remove the fan grill .
Retain grill and fasteners for installation.
6.
Carefully lift the fan and remove from top cover . Guide the power cable and con-
nector through the cable routing opening while removing. Discard the fan.
Installation Instructions
1. Make sure that the replacement fan is the most current part number
(PPP000000304461101), see service bulletin SB.TRM
2
.20161014.
2. The fan must be installed so the air flow is directed into the MC housing. Install the fan
so that the embossed air flow indicator arrow points into the MC housing. If replacing
the older fan with the newer fan, the new fan cable routing has changed. Feed the
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
2
Treadmill
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 114
6 Replacement Procedures
Motor Controller Fan Replacement
