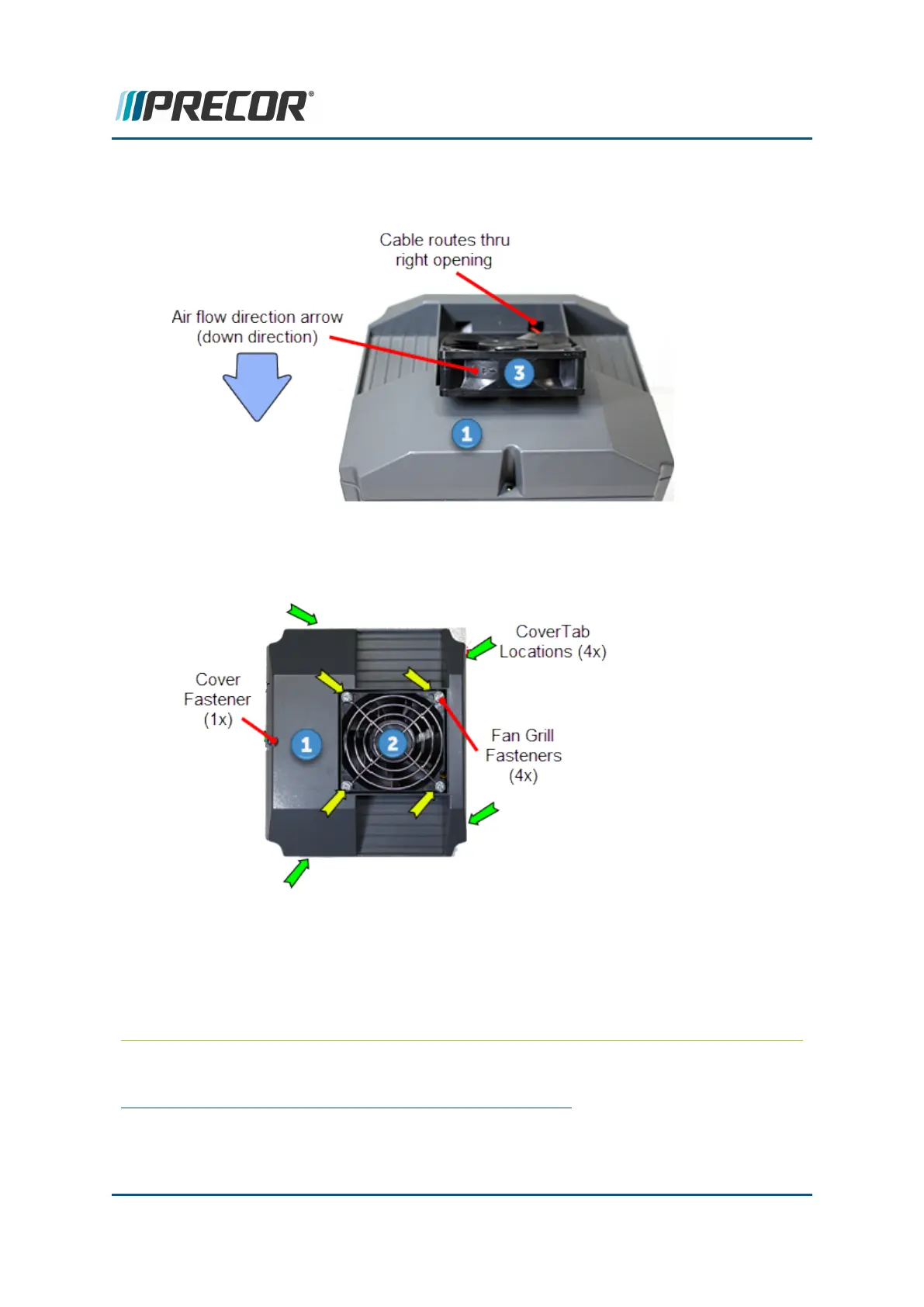

power cable thru the right cable housing opening (not the left opening) and install the
new fan.
3. Reinstall the fan grill onto the fan and secure with the four screw fasteners.
4. Reconnect the fan power cable and install the top cover onto the MC housing. Make
sure that the power cable is not pinched or damaged while snapping the top cover into
the housing tabs. Secure top cover using the one screw fastener.
5. Reinstall the Motor Controller, see "Motor Controller (MC) Replacement" on page101.
6. Plug
1
in the power cord and switch the power ON.
1
Device power cord connector or electrical cable male connector that is inserted into an elec-
trical receptacle "outlet" (also called the plug-in).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 115
6 Replacement Procedures
Motor Controller Fan Replacement
