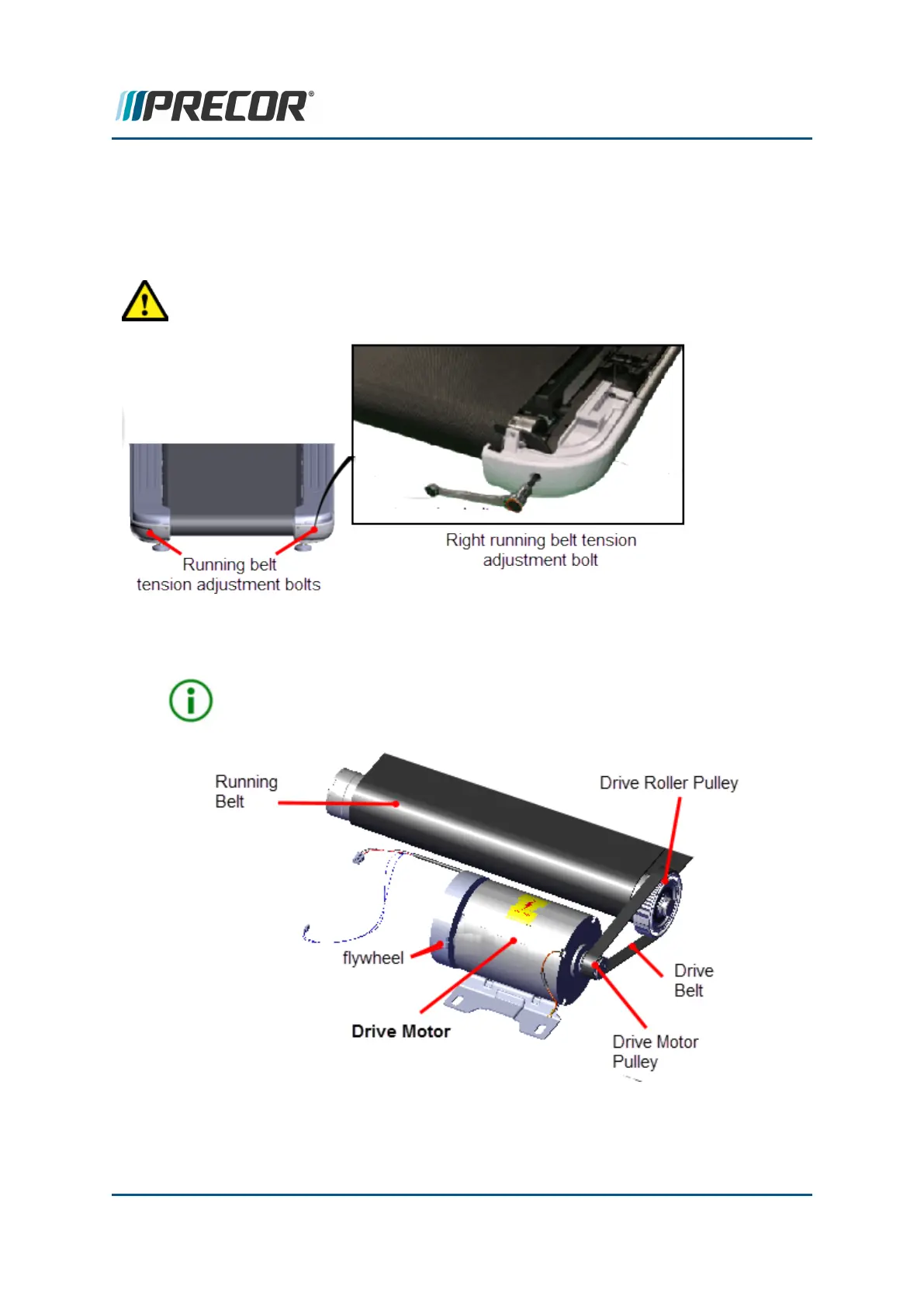

4. Relax the running belt tension by loosening the left and right 5/16" hex key tension
adjustment bolts. Alternately loosen the left and right adjustment bolts in 1/4 turn incre-
ments to evenly remove left and right tension. Only use hand tools and not power tools
which can easily over or under tension the belt causing damage to the belt and/or take-
up roller tension mechanism.
CAUTION:Only use hand tools to adjust tension. Power tools can easily over and/or
under tension causing damage to the belt and/or tension hardware mechanism.
5. Walk the Drive Belt off the Drive Roller pulley and then the Drive Motor pulley. Tem-
porarily place the Drive Belt on the inside of the Drive Roller pulley.
TIP: Use (turn) the Drive Motor flywheel to make it easier to turn the motor pul-
ley and help walk the belt onto or off the Drive Motor and Drive Roller pulleys.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 118
6 Replacement Procedures
Drive Belt Replacement
