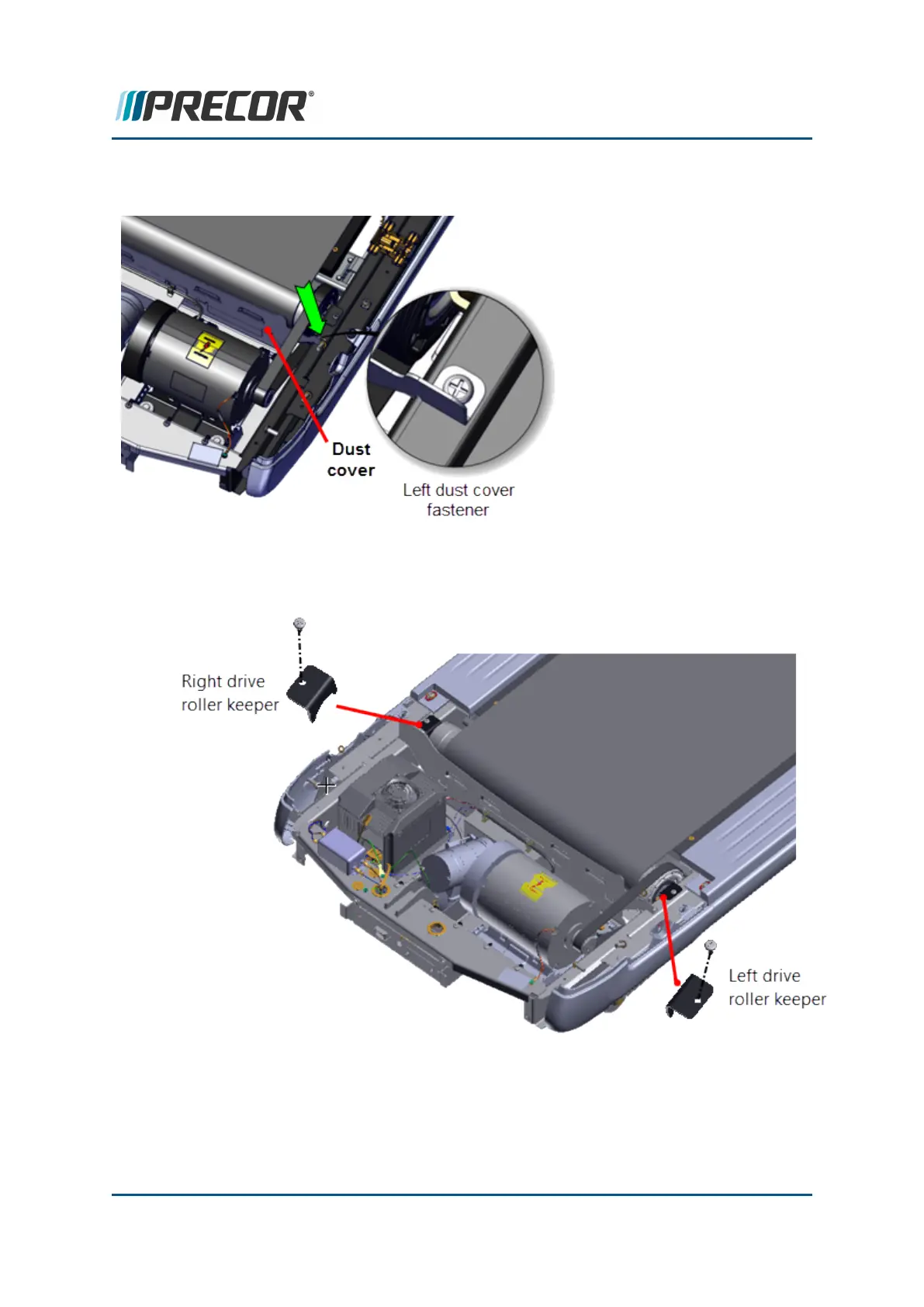

6. Remove the left side Dust Guard #3 Phillips screw fastener. Retain fastener hardware
for installation.
7. Remove the left and right Drive Roller Keepers (one #3 Phillips screw per keeper).
Retain fastener hardware for installation.
8. Lift the Drive Roller enough to remove the Drive Belt off the pulley. Lift the left side of the
Dust Guard enough to slide the belt from the Dust Guard and remove from the treadmill.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 119
6 Replacement Procedures
Drive Belt Replacement
