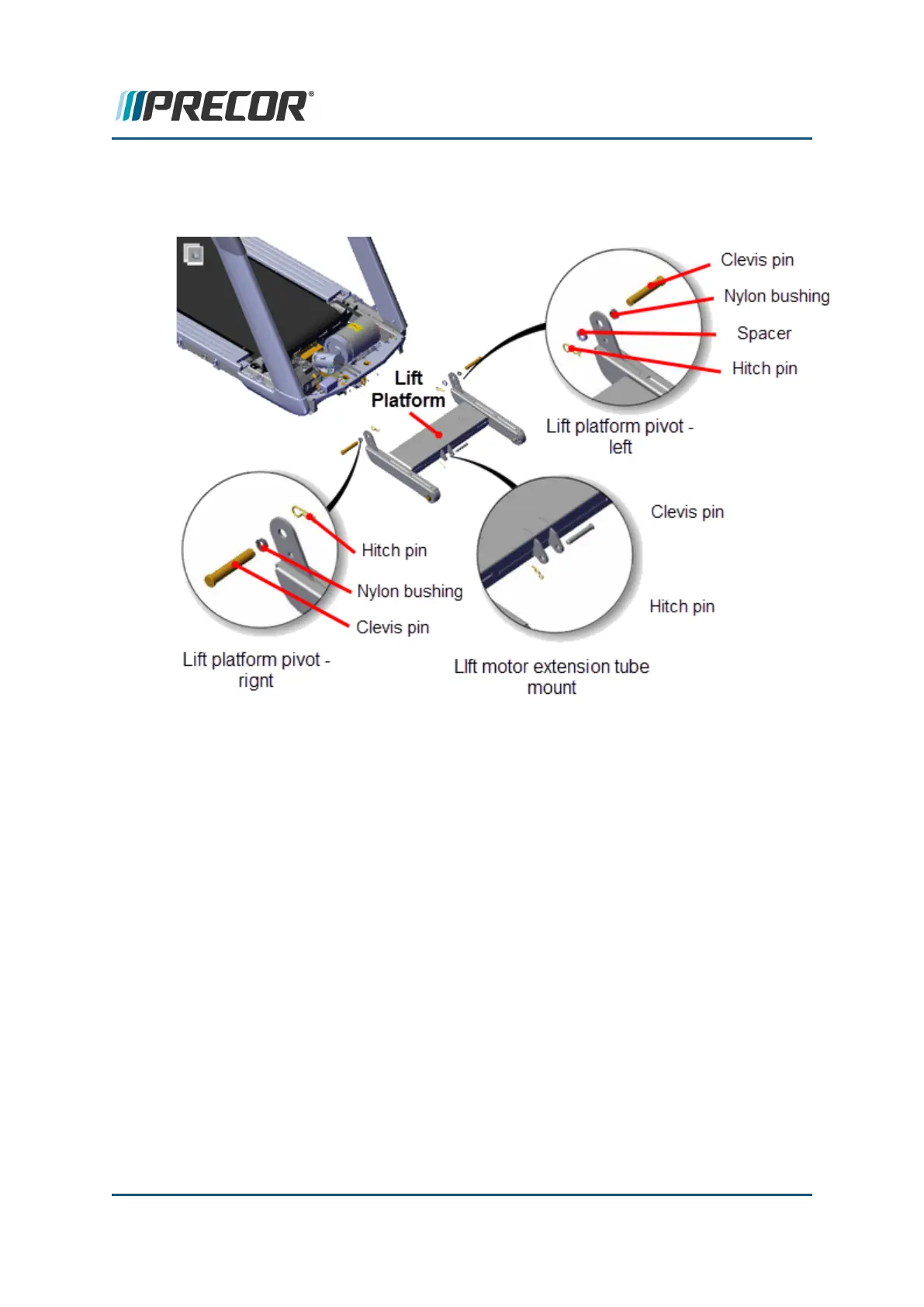

9. Remove right lift platform pivot hitch pin. Remove left lift platform pivot hitch pin and
spacer. Carefully push the right and left clevis pins outward enough to allow the lift plat-
form to be removed. Retain part(s) and/or fastener(s) for installation.
Installation Instructions
1. Install the lift platform left and right pivot brackets into position and insert the right and
left clevis pins. Add the spacer to the left clevis pin and secure using the hitch pin.
Secure the right clevis pin with the hitch pin.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 161
6 Replacement Procedures
Lift Platform Replacement
