Drive Belt tension adjustment
Belt tension adjustment is an iterative process that requires removing the Drive Belt for each
incremental tension adjustment. The process entails: making a belt tension measurement,
removing the Drive Belt from the motor pulley, changing the motor position to adjust the belt
tension. reinstalling the belt, and then verifying the adjusted belt tension. The process is
repeated until the belt tension meets specification.
Belt tension verification
1. Switch the input power OFF and unplug
1
the power cord.

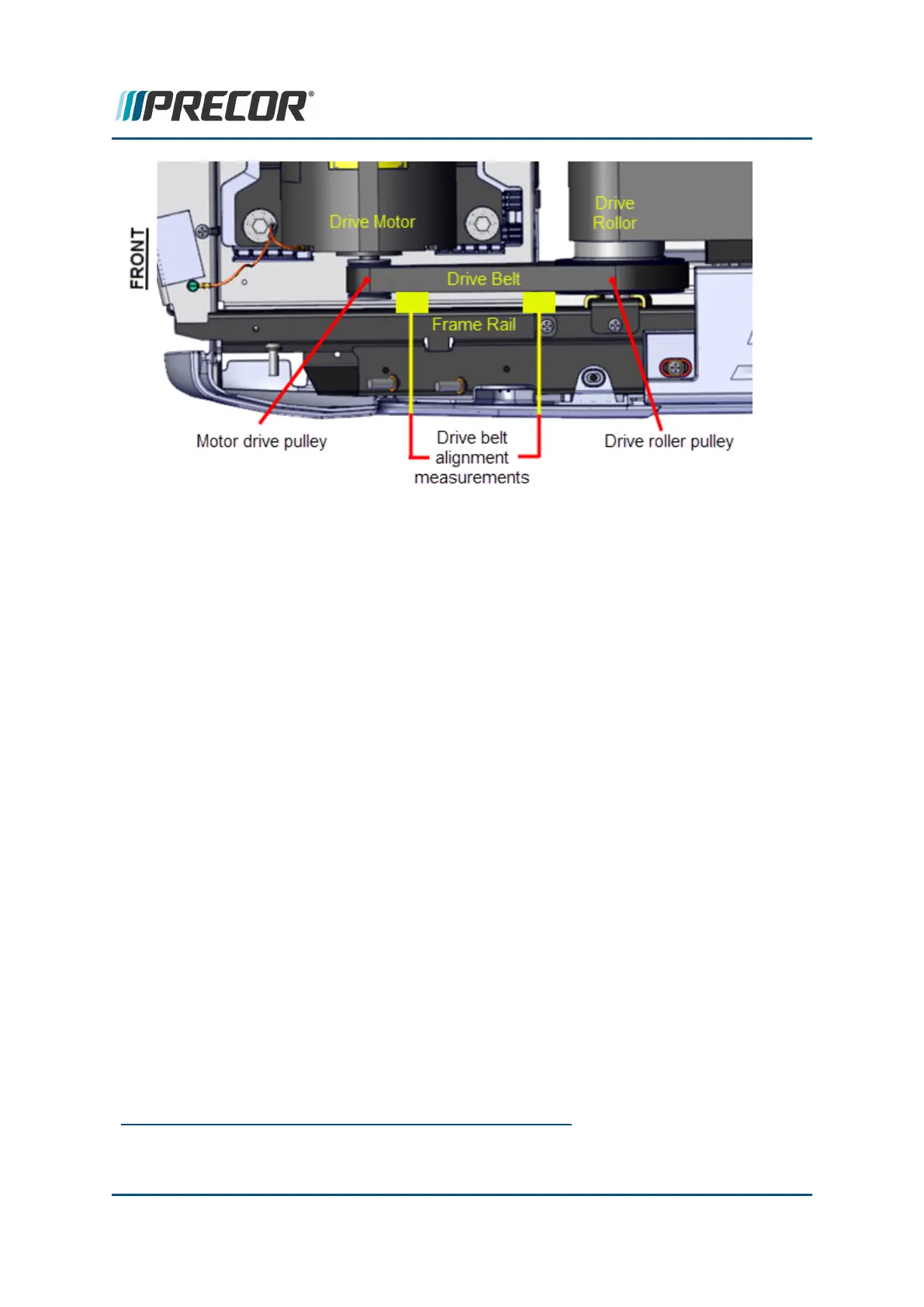

2. Place the belt tension gauge onto the Drive Belt mid distance between the motor and
roller pulleys.
1
Disconnect a device power cord plug or cable connector from the power receptacle or outlet.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 52
5 Adjustment Procedures
Drive Belt Tension and Alignment Adjustment
