S3.45 Assembly and Maintenance Guide
page 10
1 2 3 4 5 6
2. Attach Top Beam
and Top Frame
A. Place the Top Beam on the Rear Upright with
windows facing down. Ensure the beam extends
out as shown.
B. Place the Top Frame on the Rear Upright and Top
Beam.
C. Attach from underneath using
four 3¼-inch bolts
eight washers
four locknuts
Finger tighten.
D. Attach from the top using
two 5¾-inch bolts
four washers
two locknuts
Finger tighten.
E. Wrench tighten all bolts.
F. With someone helping you, lift the structure into
position. Place the structure where you intend to
keep it permanently.
CAUTION: The frame may be unstable and may
tip. To avoid this possibility, have an assistant
hold the frame until the Seat Upright has been
attached.
G. Move the Weight Boxes out of the way until step 8.

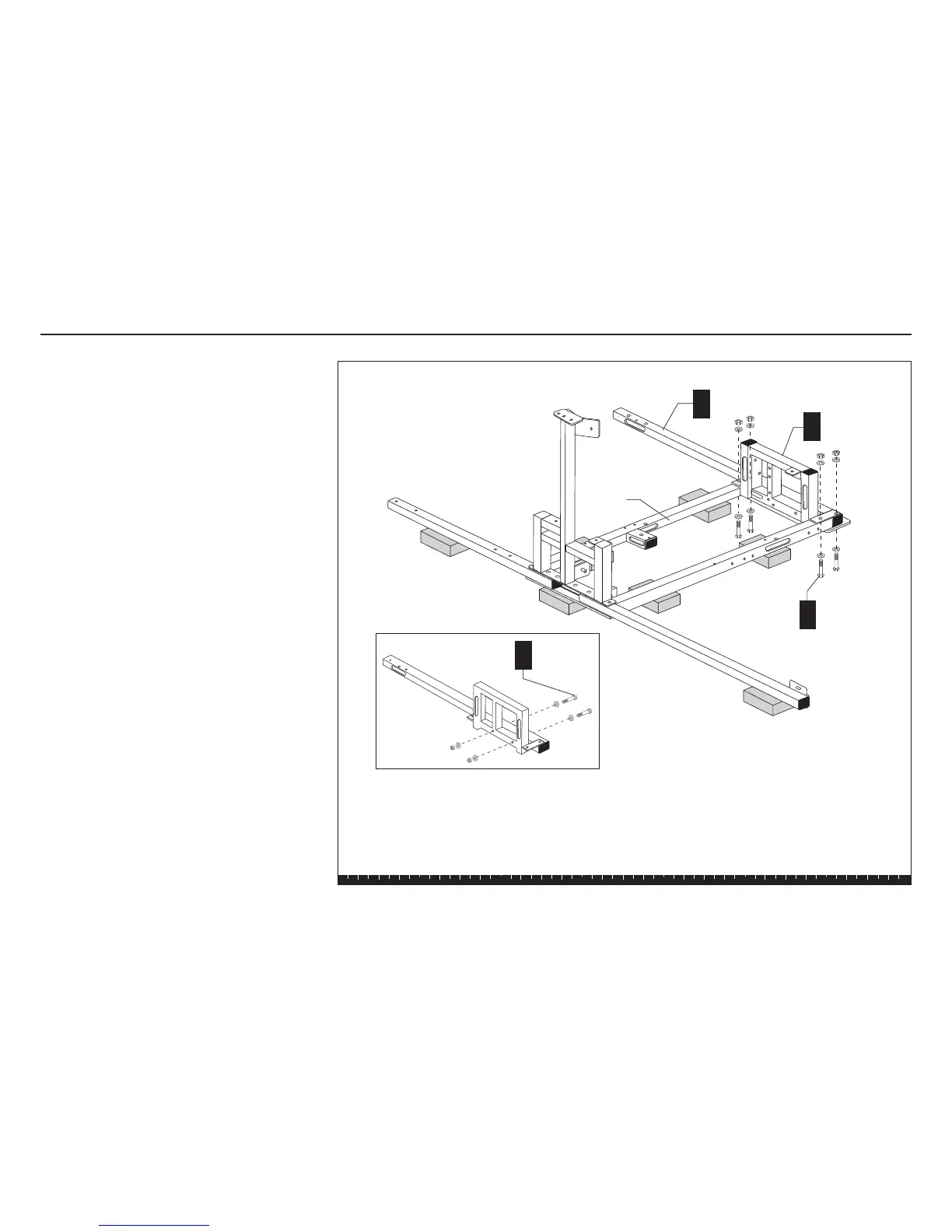

Step 2. Attach Top Beam and Top Frame
Rear
Upright
Top Beam
A
C
Top Frame
B
4 - 3¼" bolts
8 - washers
4 - locknuts
D
2 - 5¾" bolts
4 - washers
2 - locknuts
To Next Page
