S3.45 Assembly and Maintenance Guide
page 15
1 2 3 4 5 6
6. Attach Upright Flats
A. Attach the Rotating Arm to the Upright Flats using
two ¾-inch buttonhead bolts
Wrench tighten using the appropriate Allen
wrench.
B. Attach the Handles to the Seat Upright using
two 3¼-inch bolts
four washers
two locknuts
Wrench tighten with a box-end and socket wrench.

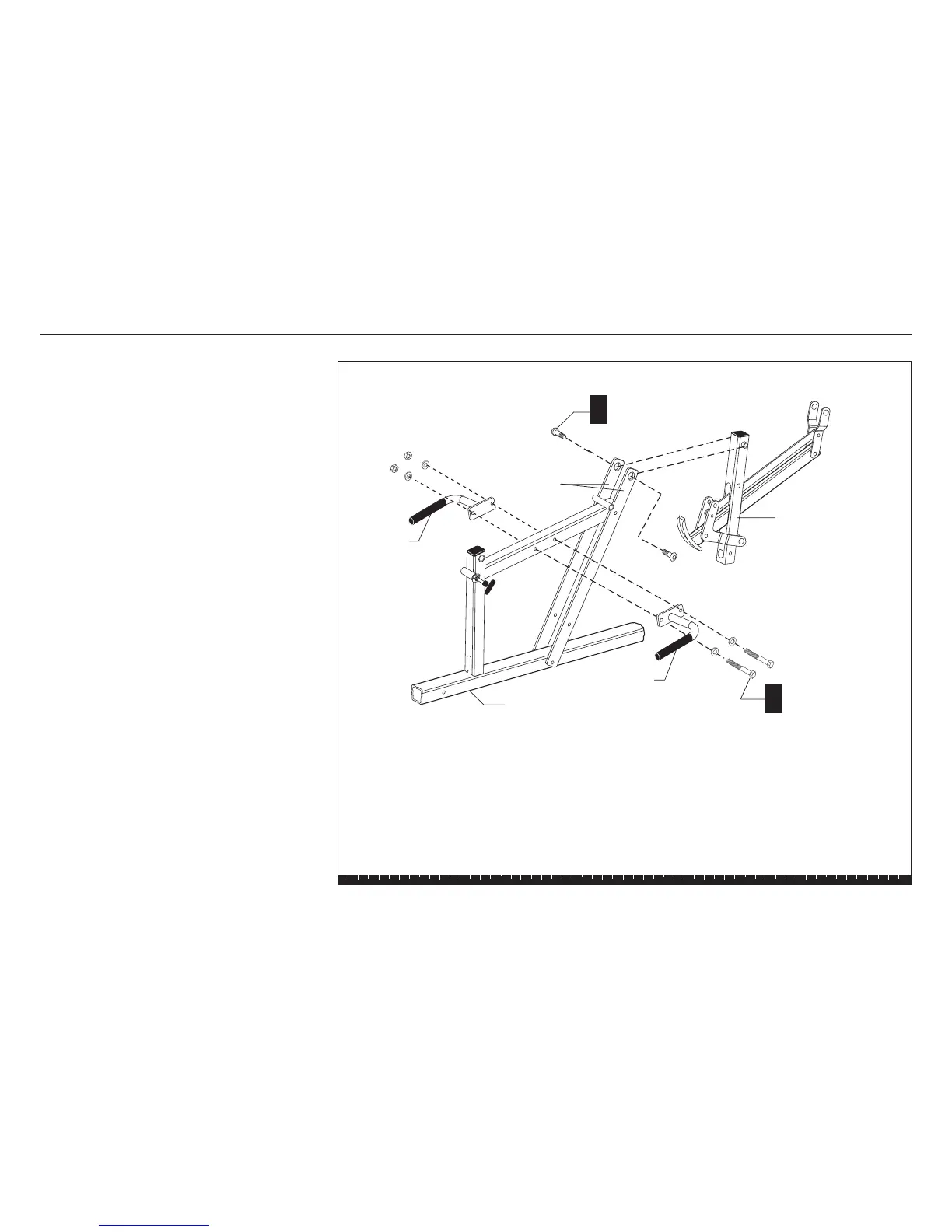

Step 6. Attach Upright Flats
A
2 - ¾" buttonhead bolts
B
2 - 3¼" bolts
4 - washers
2 - locknuts
Upright Flats
Handle
Seat Upright
Rotating Arm
Handle
