S3.45 Assembly and Maintenance Guide
page 36
1 2 3 4 5 6
21. Attach Row Bar Shelf and
Seat Pads
A. Attach the Row Bar Shelf to the Rear Upright above
the pulley window using
one 3¾-inch bolt
two washers
one locknut
Finger tighten.
B. Insert the Arm Stem into the Seat Frame with the
seven-hole side facing the Rear Upright.
C. Attach the Arm Pad, thick portion up, to the Arm
Stem using
two 1¼-inch bolts
two washers
Finger tighten.
D. Attach the Seat Pad to the Seat Frame using
two 3-inch bolts
two washers
Finger tighten.
E. Wrench tighten.

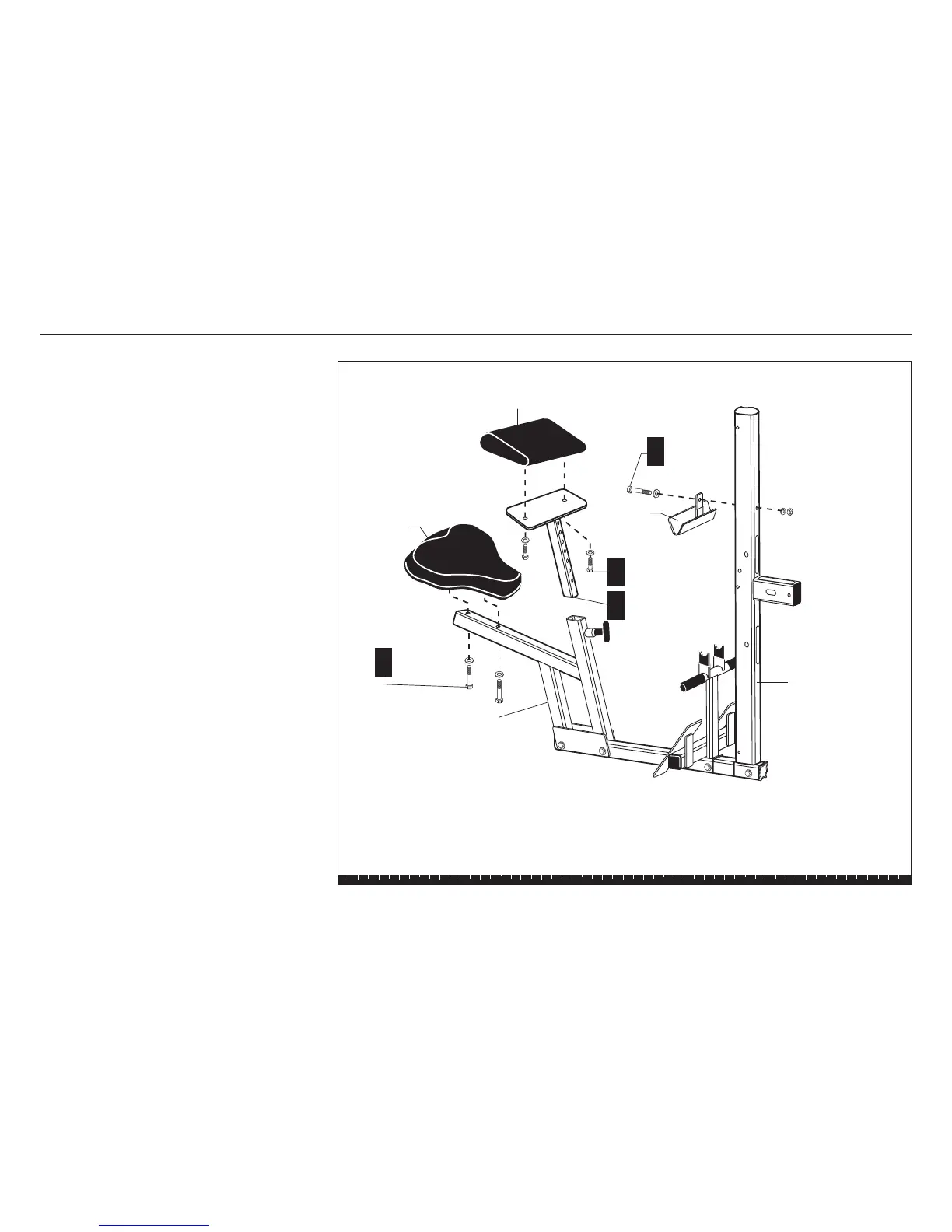

Step 21. Attach Row Bar Shelf and Seat Pads
Seat Pad
Arm Pad
Row Bar
Shelf
Arm Stem
Rear Upright
Seat Frame
2 - 1¼" bolts
2 - washers
C
1 - 3¾" bolt
2 - washers
1 - locknut
A
2 - 3" bolts
2 - washers
D
B
