S3.45 Assembly and Maintenance Guide
page 39
1 2 3 4 5 6
23. Feed Lower Preacher Curl
Cable
A. Wrap the center of Cable 43620-103 around one 4½-
inch pulley and attach it in the remaining hole of the
two Floating Pulley Plates using
one 2-inch bolt
two washers
one locknut
Wrench tighten bolts in the Pulley Plates.
B. Ensure the Cables are not crossed. Take the end of
the Cable closest to the Preacher Curl and feed it
through the upper window in the Rear Upright. Feed
it under one 4½-inch pulley and attach using
one 2¾-inch bolt
two ½-inch step spacers
one locknut
Ensure the Cable passes between the pulley and
retainer pin. Wrench tighten.
C. Feed the other Cable end (the end closest to the
Chest Press) through the Rear Upright extension
window. Attach one 4½-inch pulley in the window
using
one 2¾-inch bolt
two 1³⁄₈-inch step spacers
one locknut
Finger tighten.

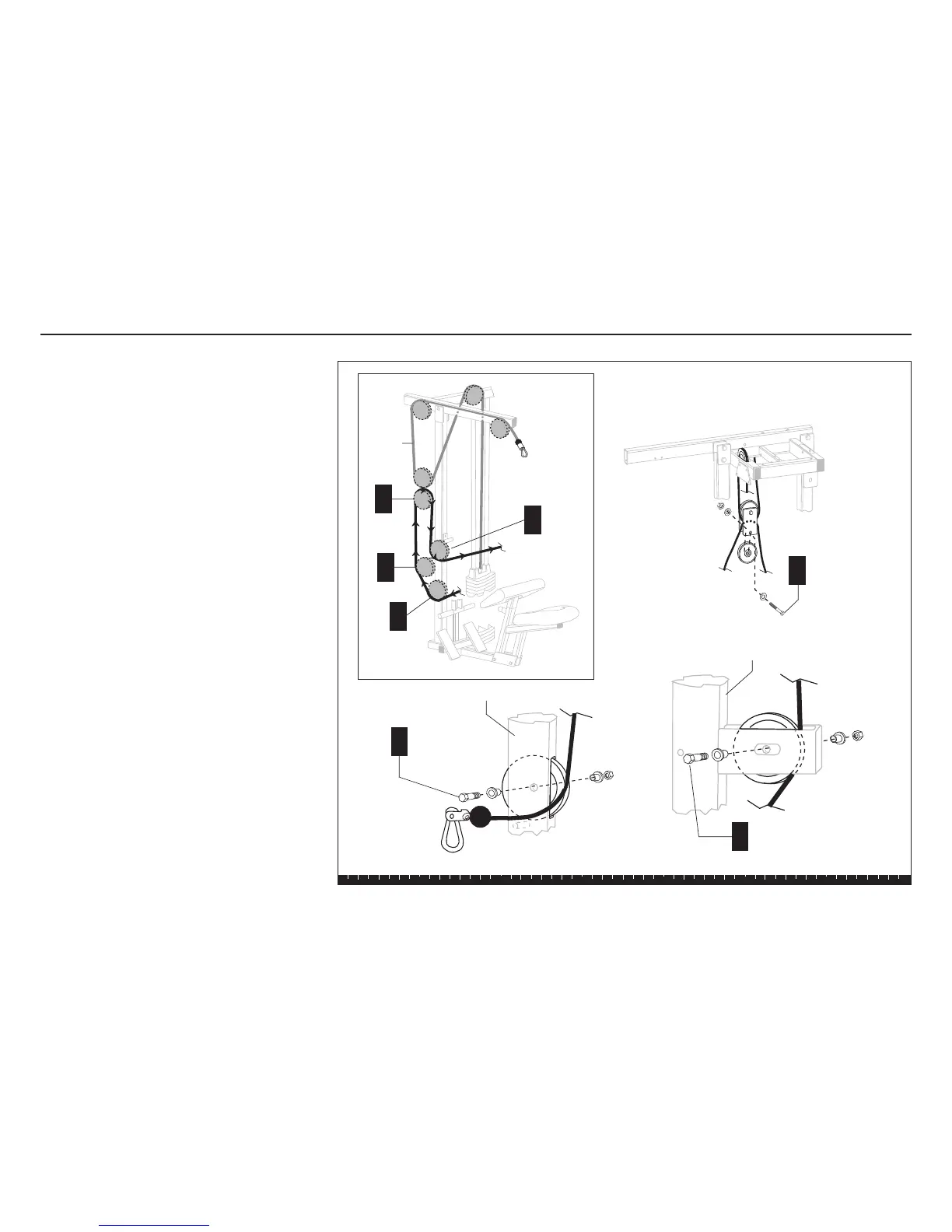

Step 23. Feed Lower Preacher Curl Cable
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
A
1 - 4½" pulley
1 - 2¾" bolt
2 - ½" step washers
1 - locknut
B
1 - 4½" pulley
1 - 2¾" bolt
2 - 1³⁄₈" step spacers
1 - locknut
C
Step 22
A
B
Rear Upright
Rear Upright
C
D
View from behind.
View from behind.
