S3.45 Assembly and Maintenance Guide
page 40
1 2 3 4 5 6

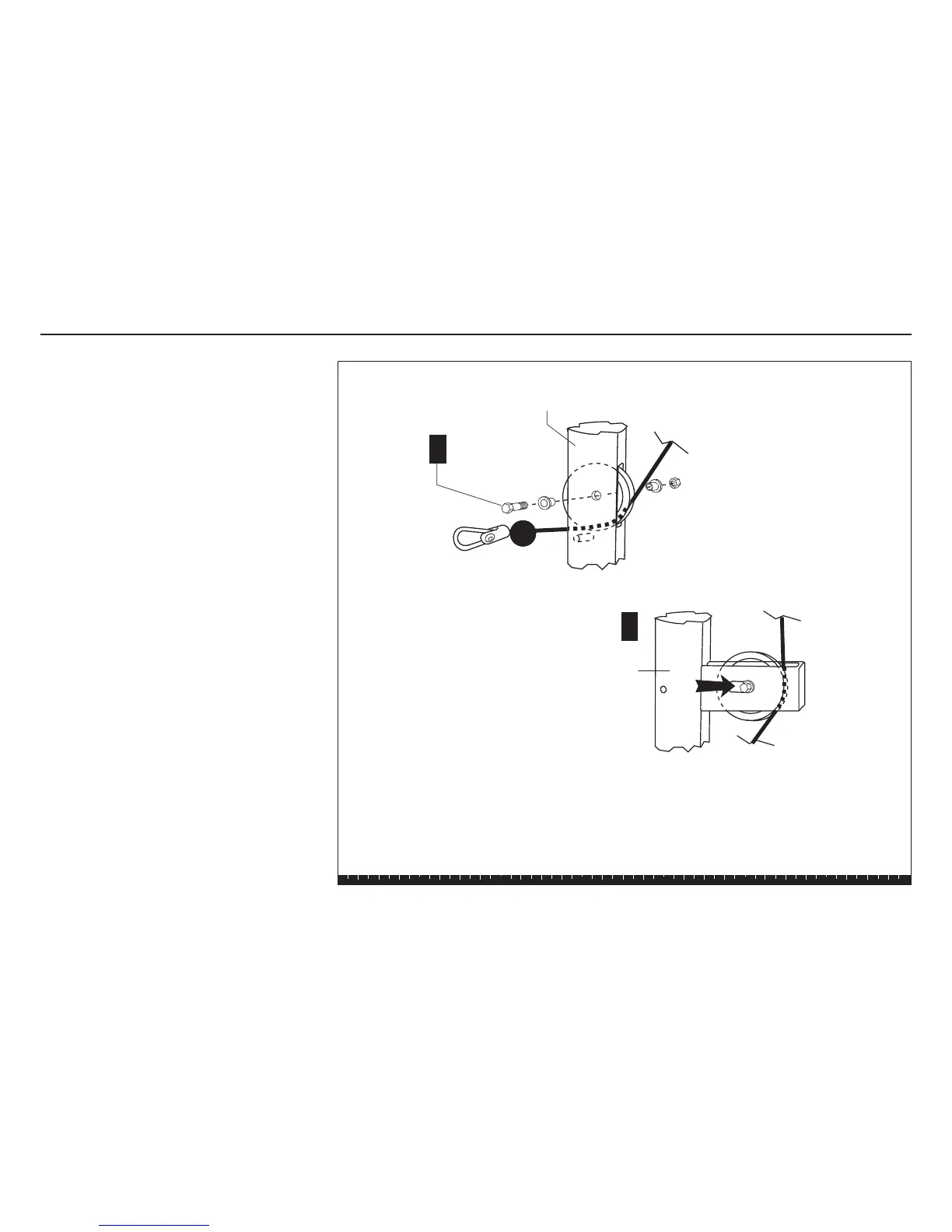

D. Lift up the Selector Stem and insert the Weight Pin
to create slack in the Cable. Feed the Cable
through the remaining window in the Rear Upright.
Attach one 4½-inch pulley using
one 2¾-inch bolt
two ½-inch step spacers
one locknut
Ensure the Cable passes between the pulley and
the retainer pin.
E. Wrench tighten bolts from steps B and D.
F. Push the pulley from step C toward the Chest
Press Station until you feel the Weight Stack begin
to lift. Wrench tighten the pulley in that position.
Note: If you are assembling the Leg Press Option and
the S3.45 simultaneously, go to Step 5 in the
S3.45
Leg Press Option Assembly Instructions
now.
Step 23. Feed Lower Preacher Curl Cable, Continued
1 - 4½" pulley
1 - 2¾" bolt
2 - ½" step spacers
1 - locknut
D
F
Rear Upright
Rear Upright
To Next Page
