S3.45 Assembly and Maintenance Guide
page 20
1 2 3 4 5 6
11. Feed Lower Leg Curl Cable
A. Feed the barrel end of Cable 43622-103 under one
3½-inch pulley. Note the location of the Spring Clip
in the illustration. Attach the pulley using
two 2-inch bolts
four washers
two locknuts
B. Feed the Cable over one 3½-inch pulley and under
another 3½-inch pulley. Attach the pulleys
using
two 2¾-inch bolts
four step spacers
two locknuts
C. Place the Cable between the Retainer Pin and the
hole on the Angle Pulley Bracket (bottom).
Sandwich one 4½-inch pulley between the top and
bottom Angle Pulley Brackets using
one 2-inch bolt
two washers
one locknut
Finger tighten.
D. Feed the Cable between the retainer pin and
hole in the Angle Pulley Bracket (Bottom) so that
the barrel end of the Cable is toward the Rotating
Arm. Attach the 4½-inch pulley to
the top and bottom Angle Brackets using
one cable retainer
one 2¼-inch bolt
two washers
one locknut
Finger tighten.

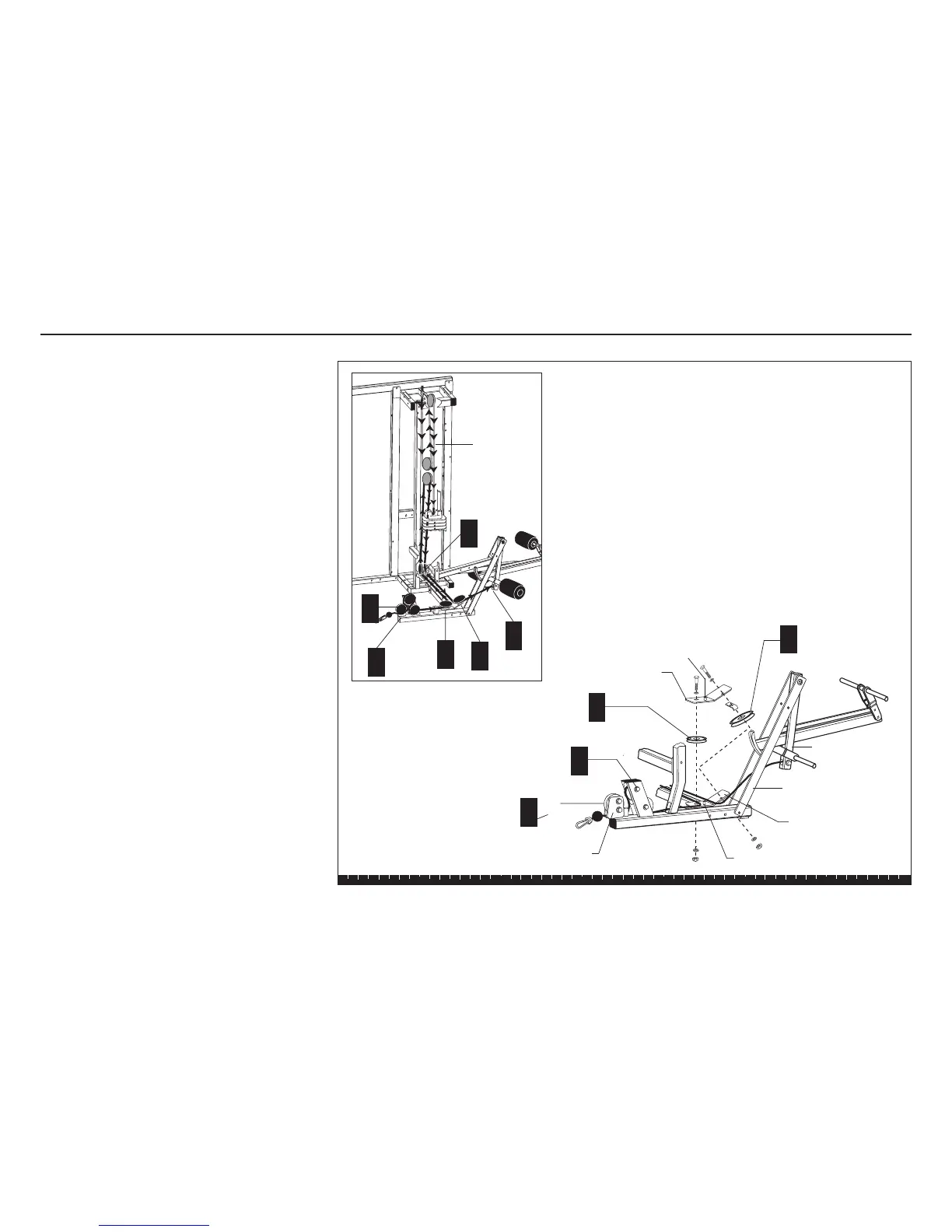

Step 11. Feed Lower Leg Curl Cable
C
Angle Pulley
Bracket (top)
Cable Retainer
D
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
1 - 4½" pulley
1 - cable retainer
1 - 2¼" bolt
2 - washers
1 - locknut
Step 12
A
D
C
G
B
E
A
1 - 3½" pulley
2 - 2" bolts
4 - washers
2 - locknuts
B
2 - 3½" pulleys
2 - 2¾" bolts
4 - step spacers
2 - locknuts
Upright Flats
Rotating Arm
End Pulley Bracket
Angle Pulley
Bracket (bottom)
Retainer Pin
