S3.45 Assembly and Maintenance Guide
page 37
1 2 3 4 5 6
22. Feed Upper Preacher Curl
Cable
A. While standing on a step ladder, feed the U end of
Cable 43621-103 through the window in the Top
Beam and out the window at the other end. Note the
location of the Spring Clip on the Cable.
B. Wrap the Cable over one 4½-inch pulley. Attach it to
the Top Beam using
one 2¾-inch bolt
two ½-inch step spacers
one locknut
Wrench tighten.
C. Attach the cable retaining bolt to the Top Beam
using
one 2¾-inch bolt
two washers
one locknut
D. At the inner window in the Top Beam, wrap the
Cable over one 3½-inch pulley and attach it using
one 2¾-inch bolt
two ½-inch step spacers
one locknut
Wrench tighten.
E. Loop the Cable through the window in the Top
Frame and over one 6-inch pulley. Lower the pulley
and Cable into the window and attach it using
one 2¾-inch bolt
two ½-inch step spacers
one locknut
Wrench tighten.
Note: Some extra cable must be hanging between
steps D and E for use in step G.

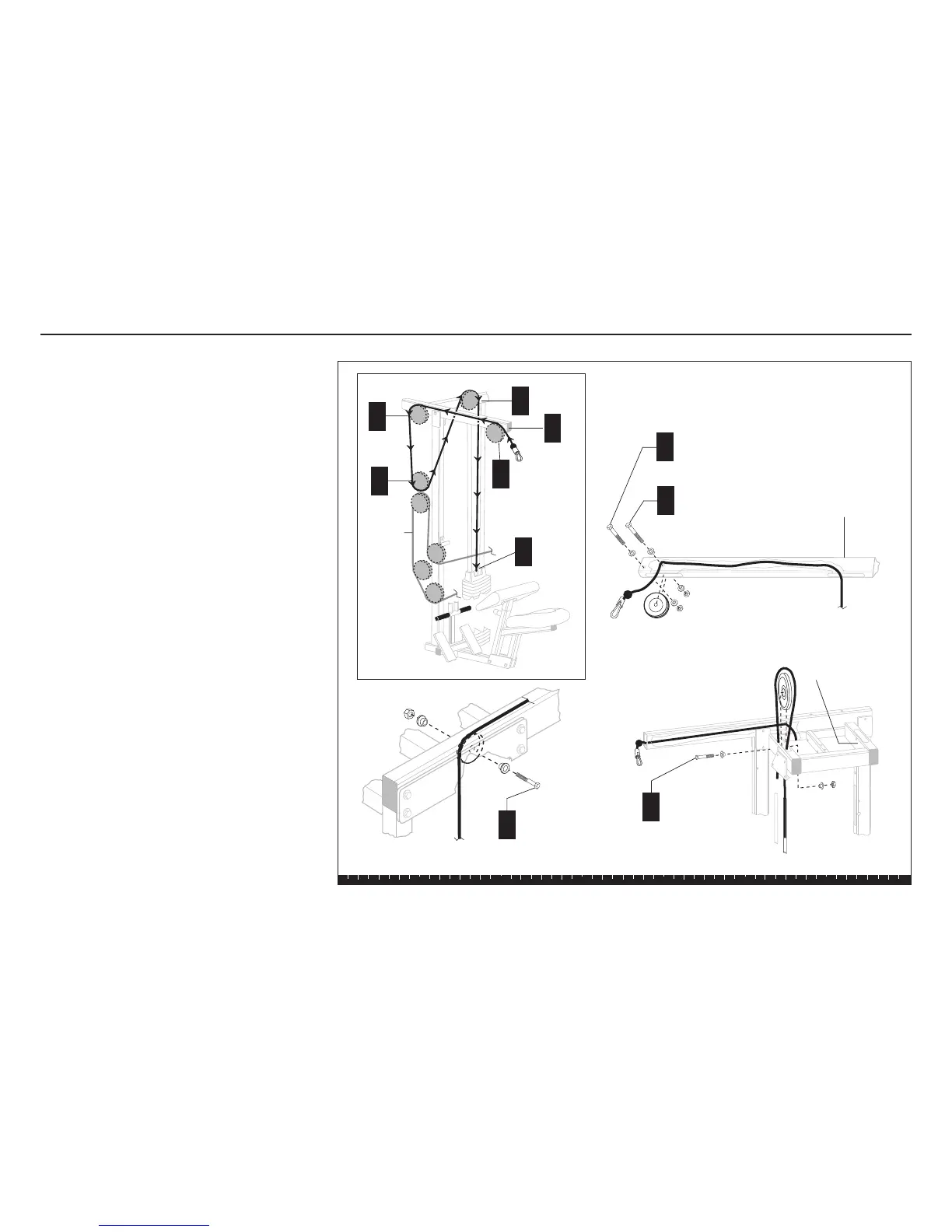

Step 22. Feed Upper Preacher Curl Cable
1 - 4½" pulley
1 - 2¾" bolt
2 - ½" step spacers
1 - locknut
B
Top Beam
1 - 3½" pulley
1 - 2¾" bolt
2 - ½" step spacers
1 - locknut
D
1 - 2¾" bolt
2 - ½" step spacers
1 - locknut
1 - 6" pulley
E
Top Frame
Step 23
G
B
D
E
F
View from behind.
View from behind.
A
1 - 2¾" bolt
2 - washers
1 - locknut
C
