S3.45 Assembly and Maintenance Guide
page 38
1 2 3 4 5 6
F. Ensure the U end of the Cable feeds between the
Guide Rods. Insert the Selector Stem into the
Preacher Curl Weight Stack with the threaded hole
at the top. Hold the Selector Stem with several
holes above the Cap Plate.
G. Insert the Weight Pin to suspend the Selector
Stem.
H. Place the loop end of the Weight Pin Lanyard into
the U end of the Cable.
I. Align the U end of the Cable, Selector Stem, and
Cap Plate. Attach using
one 1½-inch socket cap bolt
Wrench tighten. Remove the Weight Pin and lower
the Cap Plate.
J. Place one 4½-inch pulley into the previously
created cable loop from step E. Sandwich the
pulley between two Floating Pulley Plates. Attach
using
one 2-inch bolt
two washers
one locknut
Finger tighten.

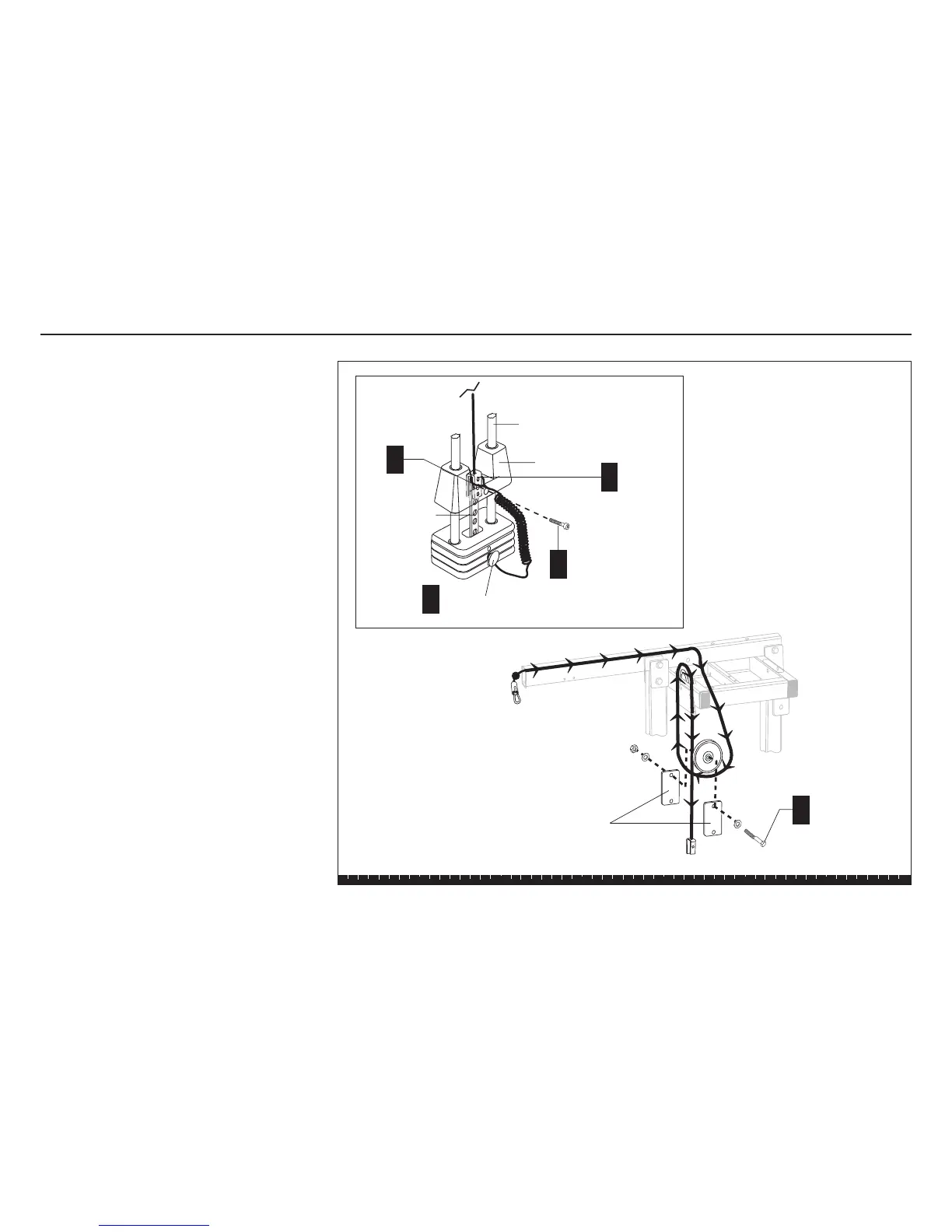

Step 22. Feed Upper Preacher Curl Cable, Continued
1 - 1½" socket cap bolt
I
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
J
Pulley Plates
Guide Rods
Cap Plate
Selector Stem
Weight Pin
H
G
F
