S3.45 Assembly and Maintenance Guide
page 45
1 2 3 4 5 6
27. Attach Shrouds
Important: Before attaching the Shrouds, make any
necessary adjustments. Refer to "Adjustments and
Maintenance" on page 47.
A. Slide the Left-Hand Leg Curl Shroud between the
Front Upright and the Main Base, starting from the
bottom and rotating the top into position. Attach the
Shroud to the Front Upright and Main Base using
two 2¾-inch buttonhead bolts
Finger tighten.
B. Attach Right-Hand Leg Curl Shroud to the Front
Upright and Main Base using
two ¾-inch buttonhead bolts
Finger tighten.
Note: The Leg Curl Shrouds are larger than the
Preacher Curl or Chest Press Shrouds.
C. Attach both Shrouds to the Side Bracket and Main
Base using
four 3¾-inch buttonhead bolts
four 3-inch barrel spacers
Finger tighten.

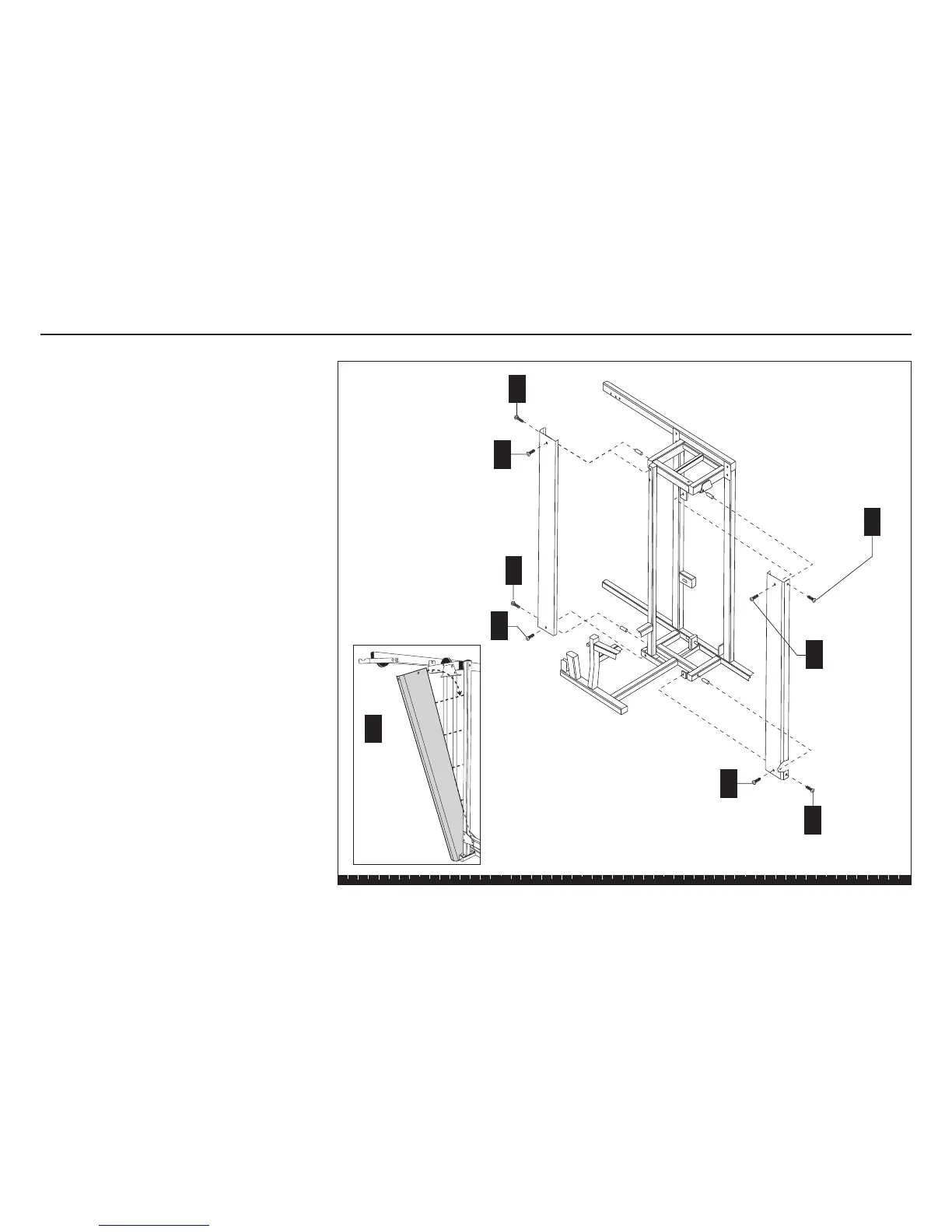

Step 27. Attach Shrouds
A
A
C
C
B
C
B
A
C
1 - 3¾" buttonhead bolt
1 - 3" barrel spacer
1 - 3¾" buttonhead bolt
1 - 3" barrel spacer
1 - 3¾" buttonhead
bolt
1 - 3" barrel spacer
1 - 3¾" buttonhead bolt
1 - 3" barrel spacer
1 - ¾" buttonhead bolt
1 - 2¾" buttonhead bolt
1 - 2¾" buttonhead bolt
1 - ¾" buttonhead
bolt
