Precor move beyond S3.45 User Manual

S3.45 Assembly and Maintenance Guide
page 9
1 2 3 4 5 6
1. Attach Main Base
A. Place the Rear Upright on Weight Boxes with the
flange side down.
B. Place the Chest Press Rear Base on the Rear
Upright. Balance the other end on a Weight Box.
C. Place the Preacher Curl Rear Base on the Rear
Upright. Balance the other end on a Weight Box.
D. Place the Main Base on the Chest Press Rear
Base and Preacher Curl Rear Base.
E. Attach from underneath using
four 3¼-inch bolts
eight washers
four locknuts
F. Finger tighten all bolts, and then wrench tighten.

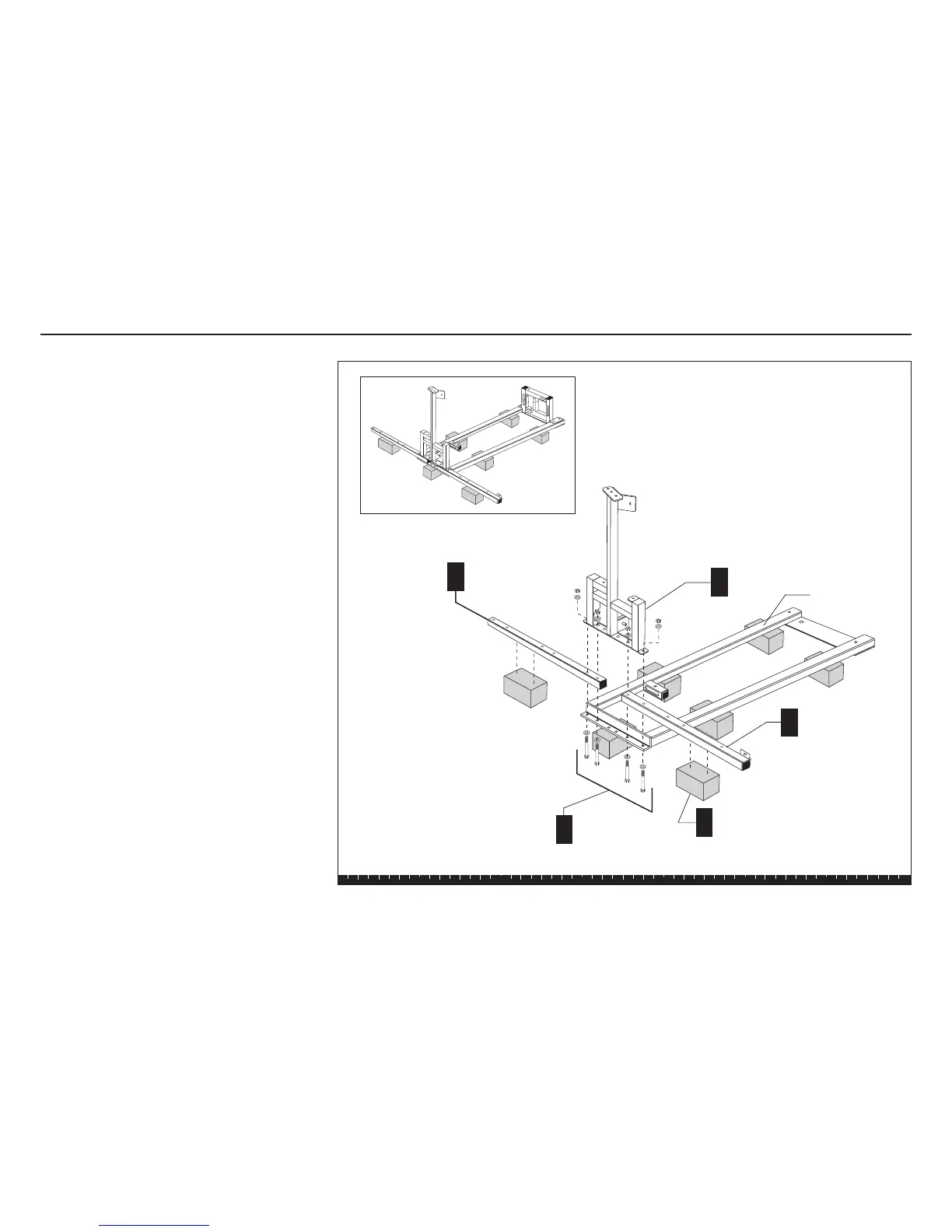

Step 1. Attach Main Base
4 - 3¼" bolts
8 - washers
4 - locknuts
Weight Box (6)
Rear Upright
Main Base
Chest Press
Rear Base
D
B
A
C
Preacher Curl
Rear Base
E
