S3.45 Assembly and Maintenance Guide
page 27
1 2 3 4 5 6
14. Attach Chest Press Seat
A. Attach the Chest Press Upright to the Chest Press
Seat using
four ¾-inch bolts
four washers
Finger tighten.
B. Attach the lower hole at top of the Chest Press
Upright to the Rear Upright using
one 3½-inch bolt
one washer
Finger tighten.
C. Attach the middle hole at the top of the Chest
Press Upright to the Rear Upright using
one 3½-inch bolt
one washer
D. Attach the Chest Press Seat to the Chest Press
Rear Base using
one 3-inch bolt
two washers
one locknut
Finger tighten.
E. Wrench tighten all bolts.
F. Attach the Prestretch Tube and Pulley Plate to the
Rear Upright using
two 3½-inch bolts
two washers
Wrench tighten.

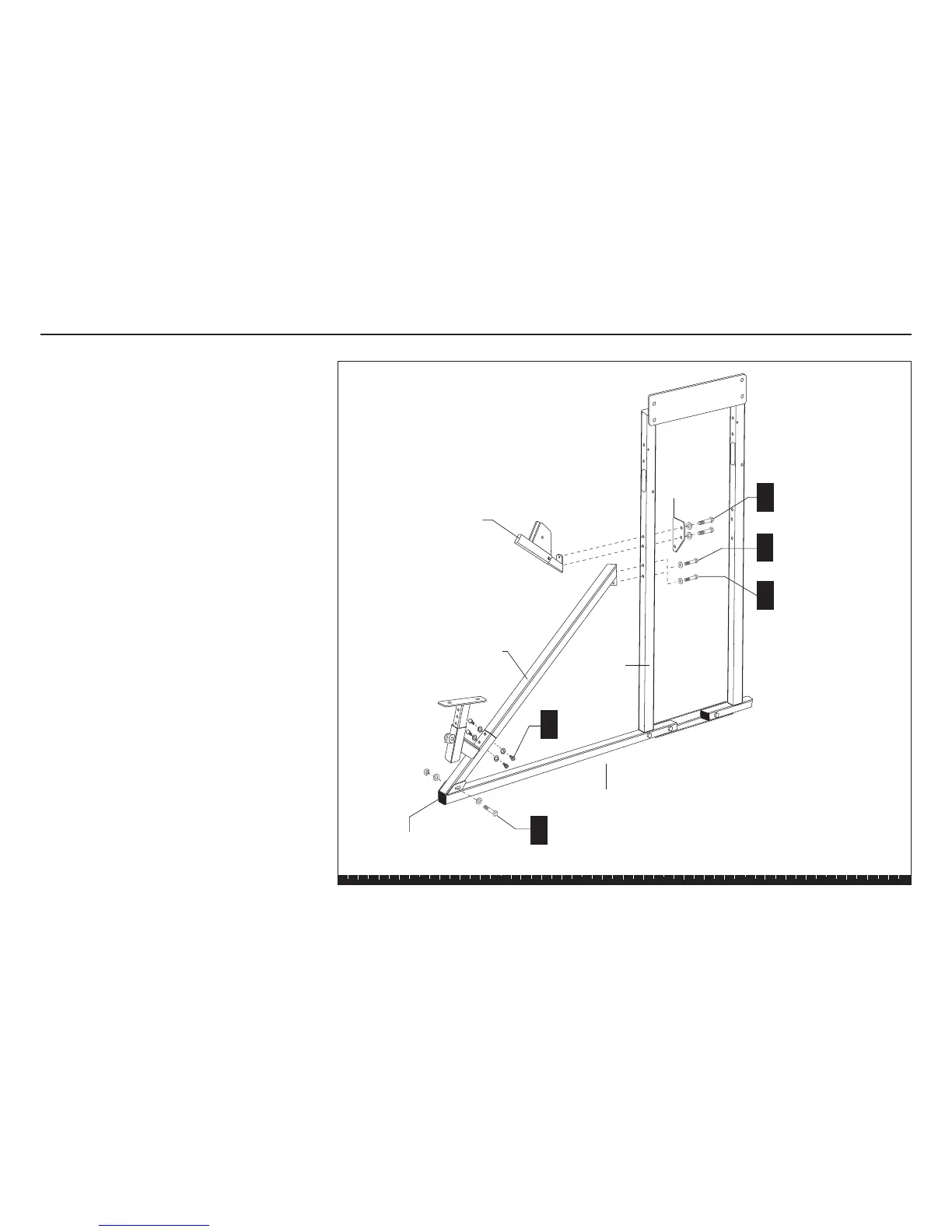

Step 14. Attach Chest Press Seat
F
B
D
2 - 3½" bolts
2 - washers
Pulley
Plate
1 - 3½" bolt
1 - washer
C
1 - 3½" bolt
1 - washer
Rear Upright
Chest Press
Rear Base
A
4 - ¾" bolts
4 - washers
1 - 3" bolt
2 - washers
1 - locknut
Chest Press
Upright
Chest Press
Seat
Prestretch
Tube
View from behind.
