S3.45 Assembly and Maintenance Guide
page 28
1 2 3 4 5 6
15. Attach Press Arm Assembly
CAUTION: This step requires two people. Do not
pinch yourself between the Press Arm and the
Prestretch Tube.
A. Attach the Press Arm Assembly to the Rear Upright
using
two 4-inch bolts
four washers
two locknuts
B. Check the alignment of the Press Arm
Assembly and Prestretch Tube. Wrench tighten.
C. Use the supplied allen wrench and tighten the set
screws.

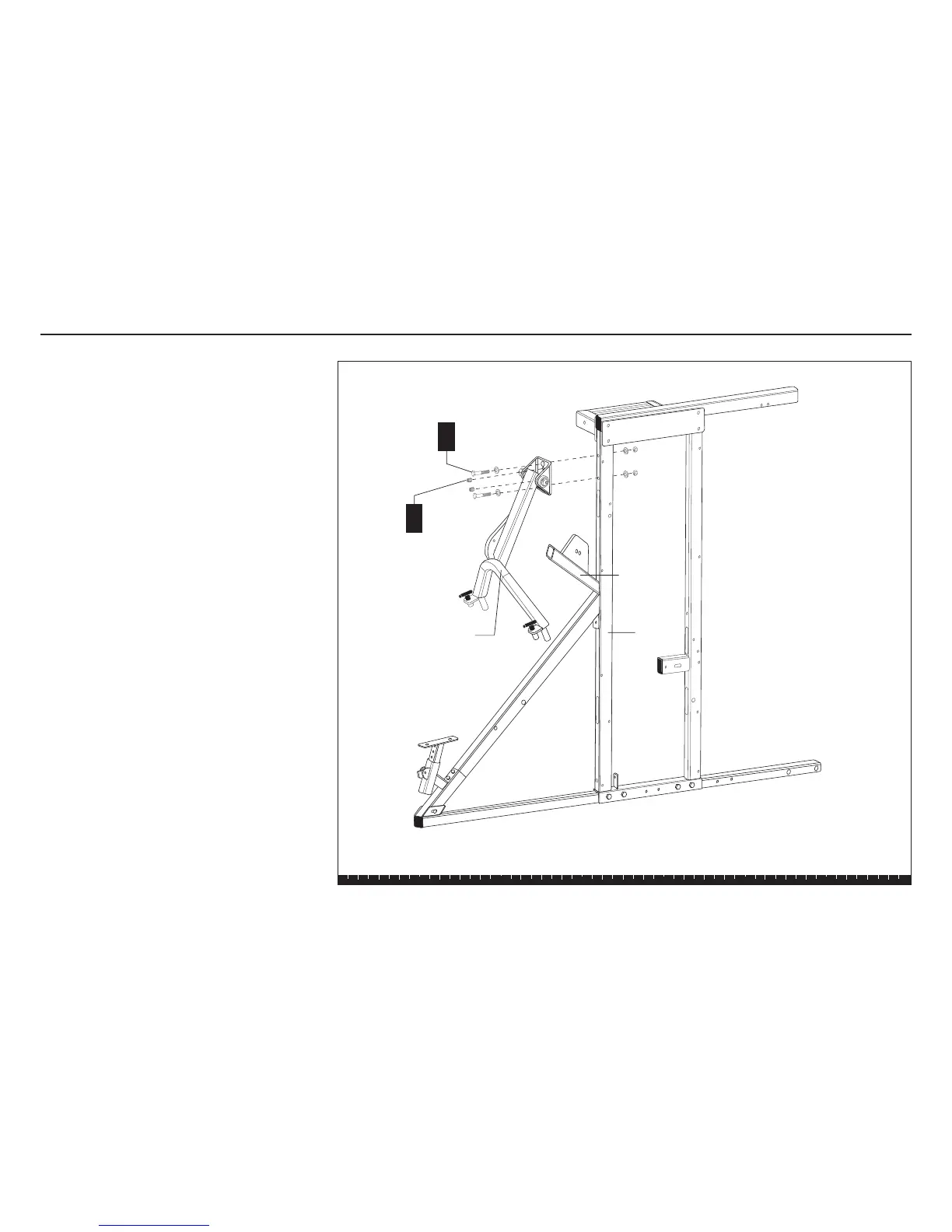

Step 15. Attach Press Arm Assembly
A
2 - 4" bolts
4 - washers
2 - locknuts
Prestretch
Tube
Rear
Upright
Press Arm
Assembly
View from behind.
C
2 - set screws
