3. Attach Front Upright
A. Attach the Front Upright to the Top Frame from the
front using
one 4¾-inch bolt
two washers
one locknut
Finger tighten.
Note: Placement of the Front Upright must match
the illustration. The Shroud hole must
be offset toward the Preacher Curl Station.
B. Attach the Front Upright to the Main Base using
two ¾-inch bolts
two washers
Finger tighten.
C. Wrench tighten all bolts.

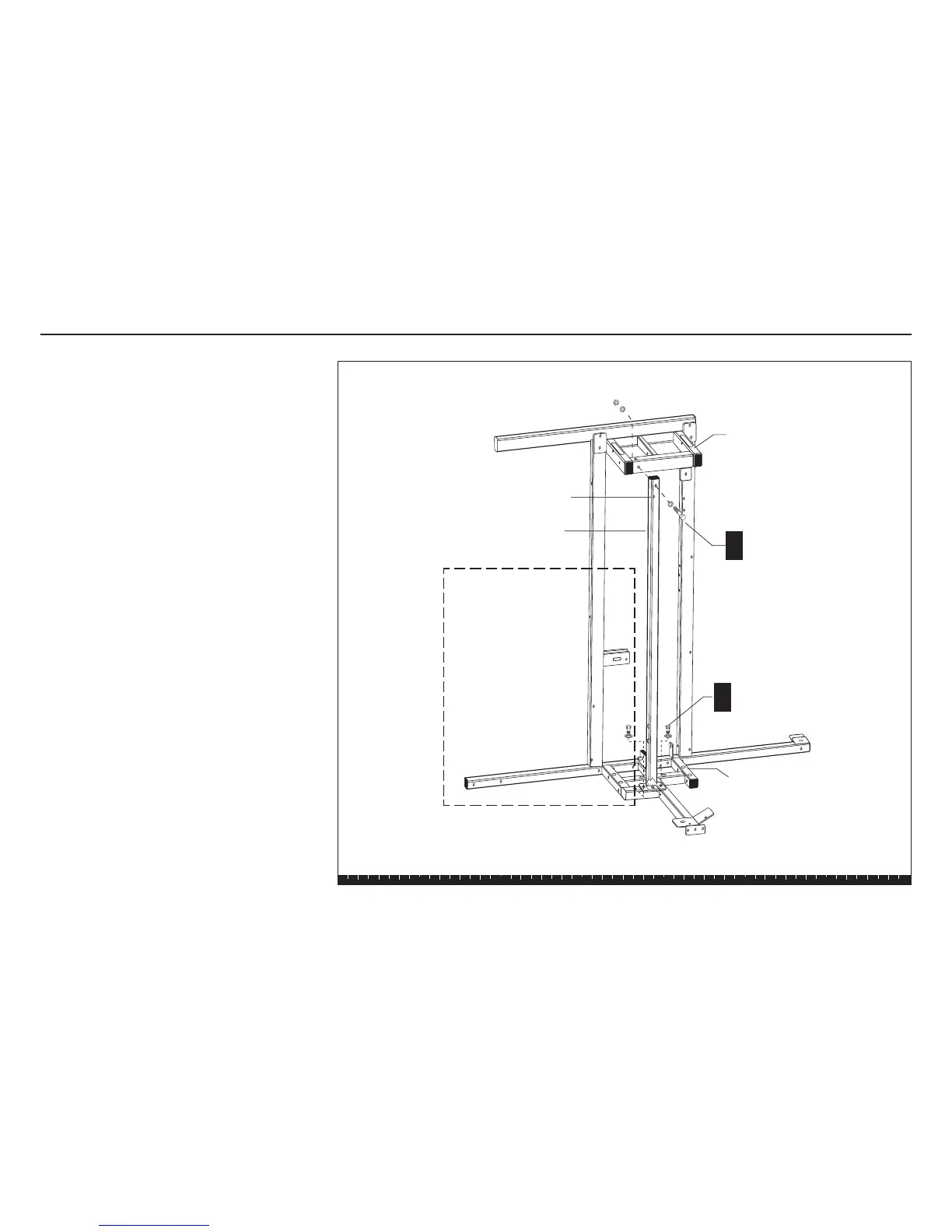

Step 3. Attach Front Upright
Top Frame
Front Upright
Main Base
1 - 4¾" bolt
2 - washers
1 - locknut
B
A
2 - ¾" bolts
2 - washers
Shroud Hole
Preacher Curl
Station will be on
this side.
