12. Feed Upper Leg Curl Cable
A. Insert the Selector Stem (from Box 2) into the Leg
Curl Weight Stack with the threaded hole at the
top. Hold the Selector Stem with several holes
above the Cap Plate. Insert the Weight Pin into the
Weight Stack to suspend the Selector Stem.
B. Place the loop end of the Weight Pin Lanyard into
the U end of Cable 40535-102. Place the U end of
the Cable on the top of the Selector Stem.
C. Align the holes in the top of the Selector Stem, U,
and Cap Plate. Attach using
one 1½-inch socket cap bolt
Wrench tighten. Remove the Weight Pin and lower
the Cap Plate.
D. Draw the threaded end of the Cable up and
through the center hole on the Center Bracket.
Place the Cable between the cable retainer and
one 4½-inch pulley. Attach the pulley and the
Cable Retainer to the Top Frame using
one 2¾-inch bolt
two washers
one locknut
Finger tighten.
E. Unscrew the locknut and washer from the threaded
end of the Cable and attach the threaded end of
the Cable to the Top Frame.
Tighten the locknut so that at least two threads
stick out past the top of the nut. The cable will be
loose. It will be adjusted later.

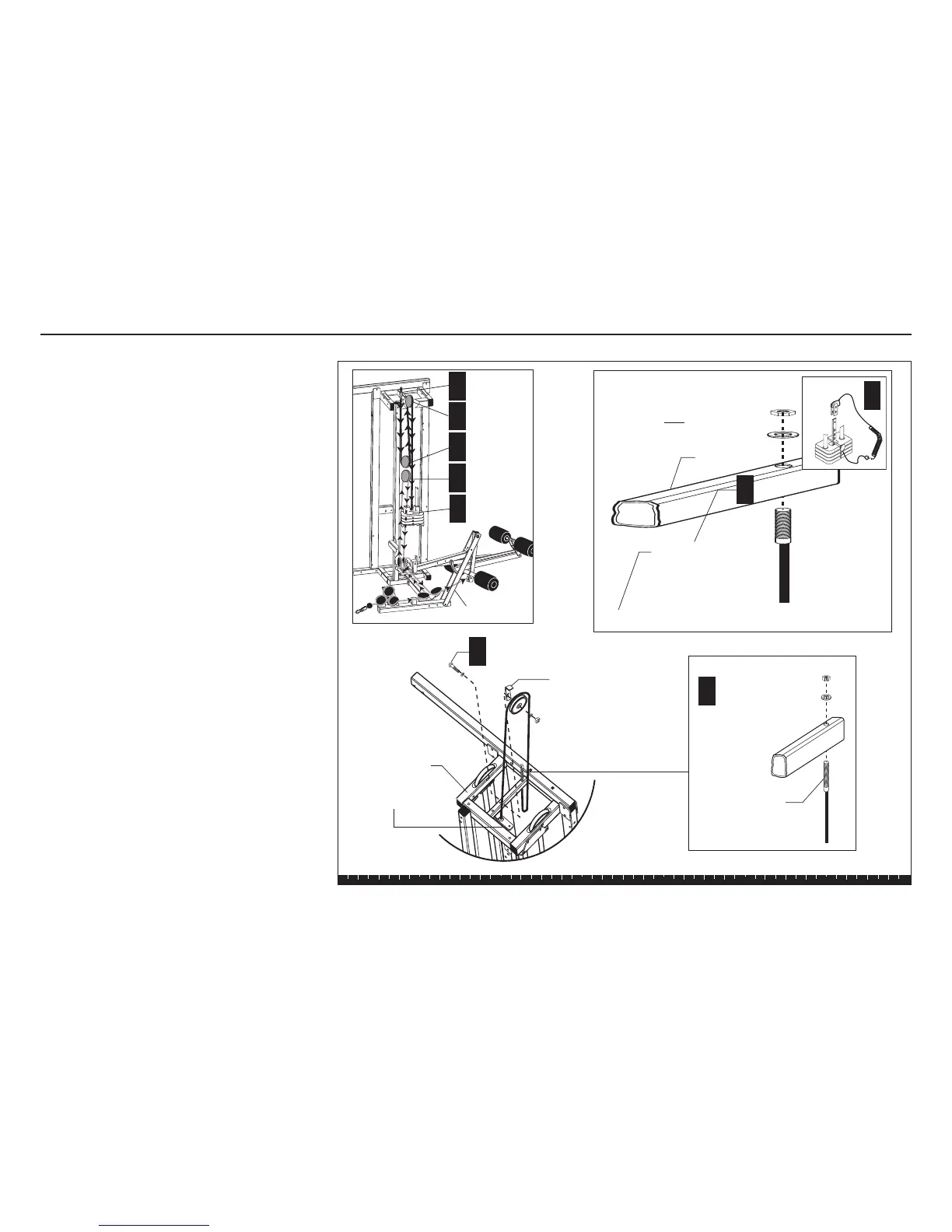

Step 12. Feed Upper Leg Curl Cable
E
D
Guide Rods
Cap Plate
Selector Stem
Weight Pin
Cable Retainer
Top Frame
1 - 4½" pulley
1 - 2¾" bolt
2 - washers
1 - locknut
1 - locknut
1 - washer
B
C
1 - 1½" socket
cap bolt
Step 11
E
D
F
H
A
Center Bracket
Threaded end of
Cable
