S3.45 Assembly and Maintenance Guide
page 21
1 2 3 4 5 6
E. Feed the barrel end of the Cable between the two
Upright Flats. Attach the barrel end of the Cable to
the Rotating Arm using
one 2¾-inch bolt
two step spacers
one locknut
F. Pull all excess Cable between the Guide Rods
toward the back of the Rear Base. Position
the Cable above the retainer pin, around the back.
Ensure the Cable is straight and free of tangles.
G. Attach two 4½-inch pulleys using
one 3¾-inch bolt
two washers
one locknut
Ensure the Cable is below the pulley and above
the retainer pins. Finger tighten.
H. Wrench tighten all bolts from this step.

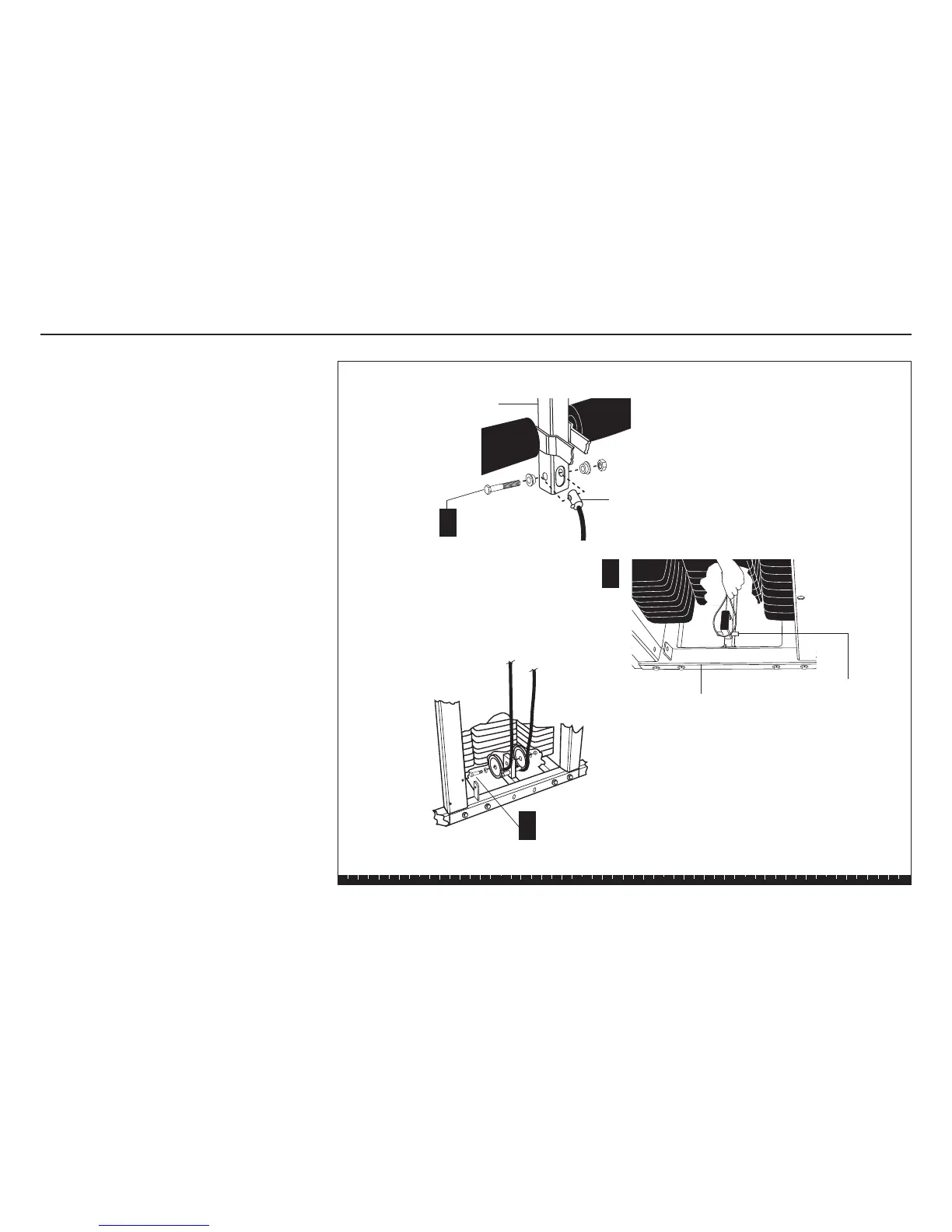

Step 11. Feed Lower Leg Curl Cable, Continued
G
2 - 4½" pulleys
1 - 3¾" bolt
2 - washers
1 - locknut
F
E
1 - 2¾" bolt
2 - step spacers
1 - locknut
Rotating Arm
Rear Base
Retainer Pin
Barrel End of Cable
To Next Page
