S3.45 Assembly and Maintenance Guide
page 24
1 2 3 4 5 6
13. Assemble Leg Curl Seat
A. Attach the Backpad Support Tubes to the Seat
Upright using
one 5½-inch bolt
two ½-inch washers
one ½-inch locknut
Note: The tube with the Selector Pivot Flat is
nearest the Weight Stack. Also note that the hole
in the other support tube is positioned closest to
the Backpad Pop Pin, as shown. Wrench tighten,
and then loosen until the support tube can fall
freely without wobbling.
CAUTION: Keep your hands clear to avoid
injury when the support tube falls.
B. Align the Selector Pivot Flat with the Backpad
Pop Pin.
C. Attach the Seat Pad to the Seat Upright using
one 7-inch bolt
one ½-inch locknut
Finger tighten.

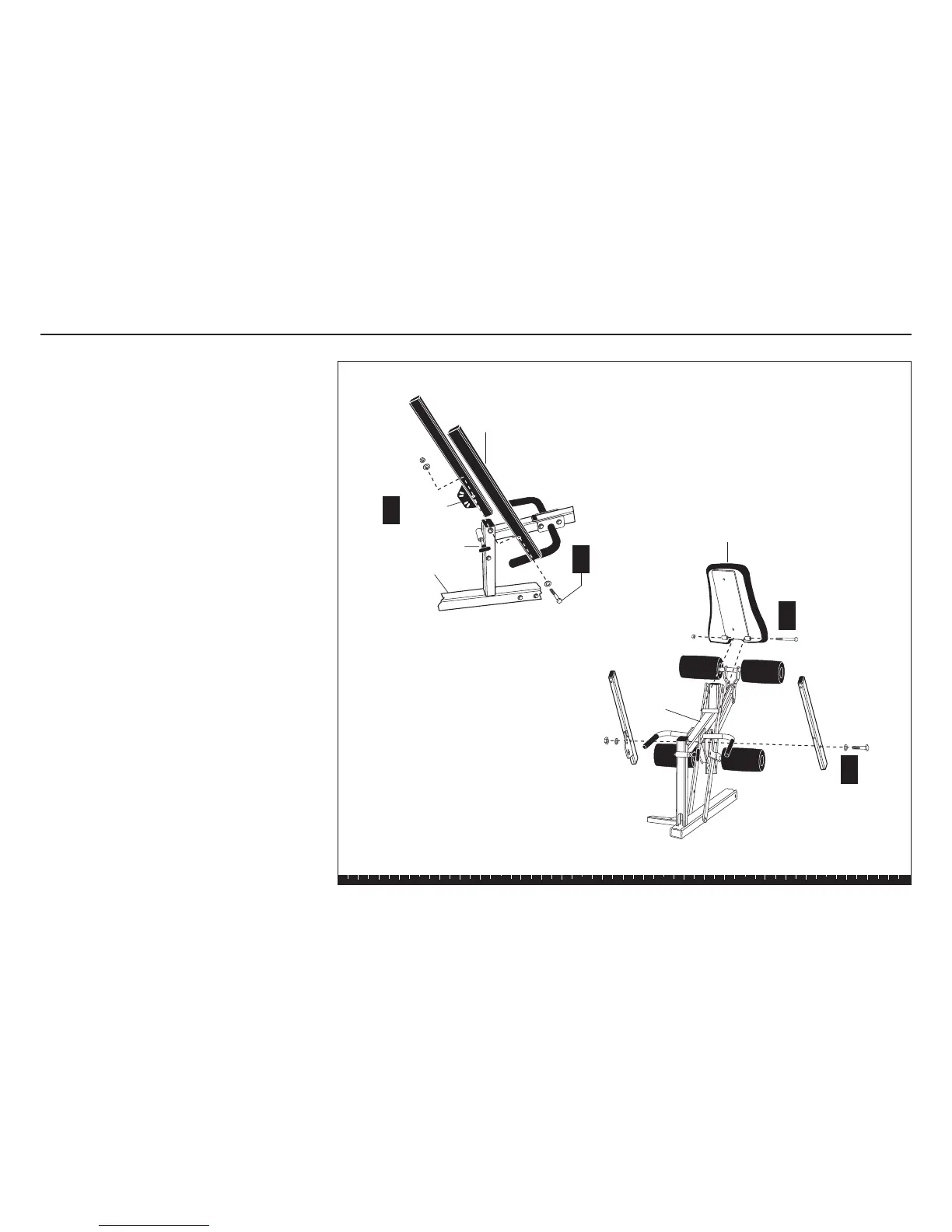

Step 13. Assemble Leg Curl Seat
A
C
A
Seat Upright
1 - 7" bolt
1 - ½" locknut
Seat Pad
1 - 5½" bolt
2 - ½" washers
1 - ½" locknut
Backpad Support
Tubes
Seat Upright
Selector
Pivot Flat
Backpad
Pop Pin
B
To Next Page
