D. Attach the Side Shrouds to the Side Bracket and
Main Base using
four 3¾-inch buttonhead bolts
four barrel spacers
Note: This is done for two Shrouds.
E. Attach the Leg Press Shroud to the Rear Upright
and Side Shroud using
eight ¼-inch by 2½-inch buttonhead bolts.
F. Wrench tighten all bolts, for steps A through E.
This completes the assembly of your Precor S3.45.
Side Shroud
Side Shroud
Leg Press Shroud

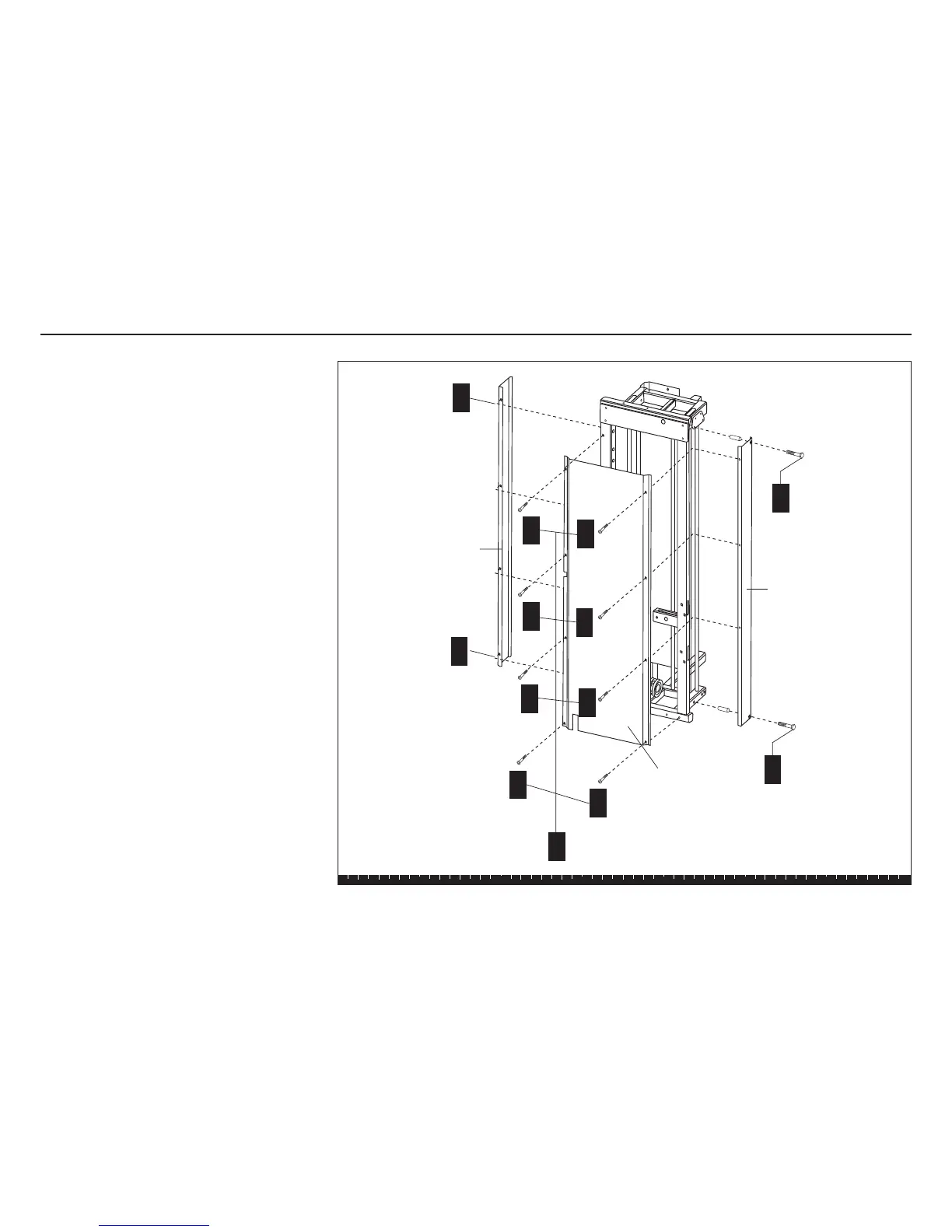

View from behind.
E
E
E
E
E
E
E
E
E
8 - ¼" x 2½"
buttonhead bolts
D
D
D
1 - 3¾" buttonhead
bolt
1 - 3" barrel spacer
1 - 3¾" buttonhead
bolt
1 - 3" barrel spacer
1 - 3¾" buttonhead
bolt
1 - 3" barrel spacer
D
1 - 3¾" buttonhead
bolt
1 - 3" barrel spacer
Step 27. Attach Shrouds, Continued
