Precor move beyond S3.45 User Manual

S3.45 Assembly and Maintenance Guide
page 32

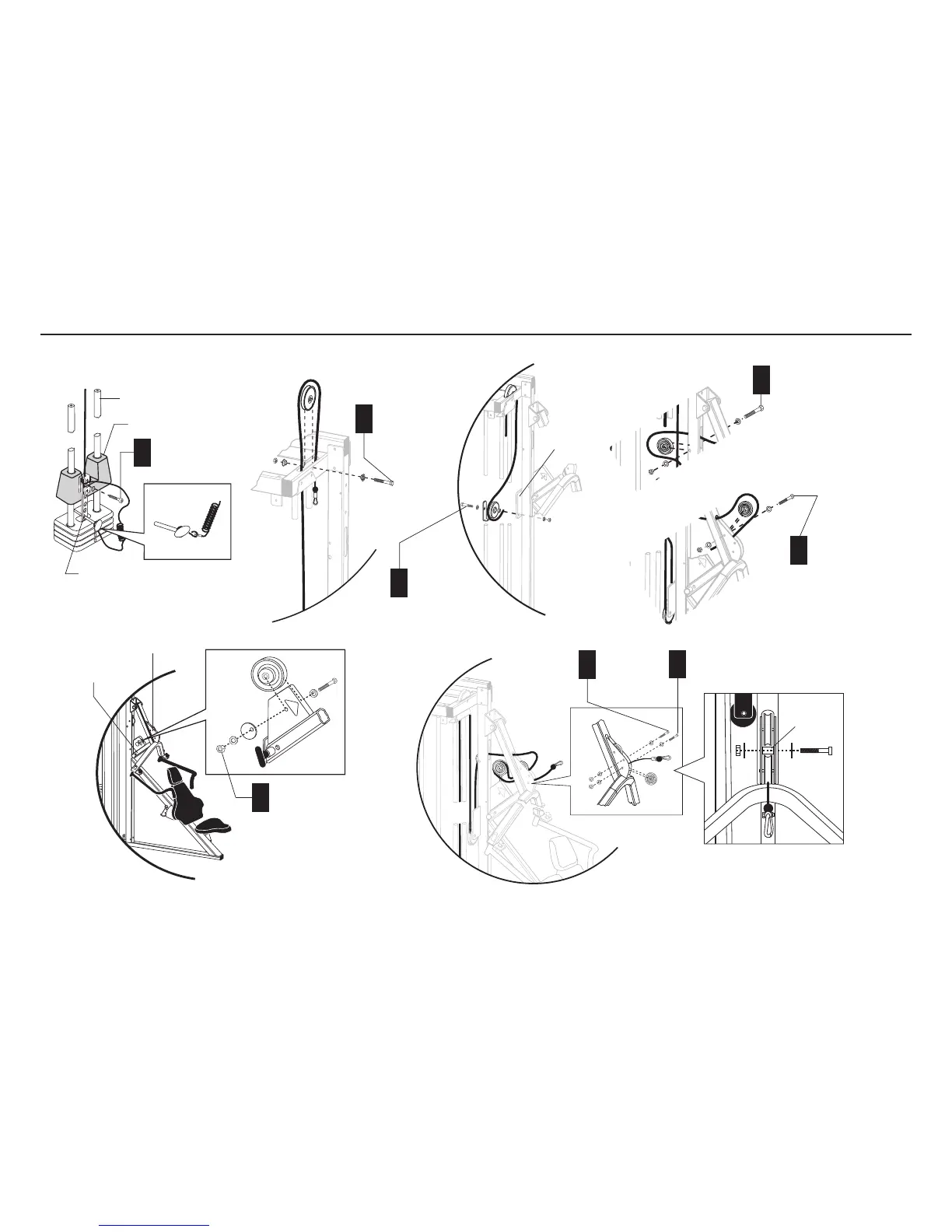

Step 18. Feed Chest Press Cable, Continued
1 - 6" pulley
1 - 2¾" bolt
2 - ½" step spacers
1 - locknut
B
C
1 - 4½" pulley
1 - 2½" bolt
2 - washers
1 - ½ barrel spacer
1 - locknut
1 - cable retainer
D
1 - 4½" pulley
1 - 2¾" bolt
2 - ½" step spacers
1 - locknut
E
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - locknut
H
1 - 2" bolt
2 - washers
1 - long barrel
spacer
1 - locknut
G
1 - 3½" pulley
1 - 2" bolt
2 - washers
1 - locknut
F
1 - 4½" pulley
1 - 2" bolt
2 - washers
1 - cam washer
1 - locknut
Pulley plate
Guide Rods
Weight Pin
Selector Stem
Cap Plate
A
1 - 1½" socket
cap bolt
Barrel Spacer
Press Arm Flats
Prestretch
Tube
