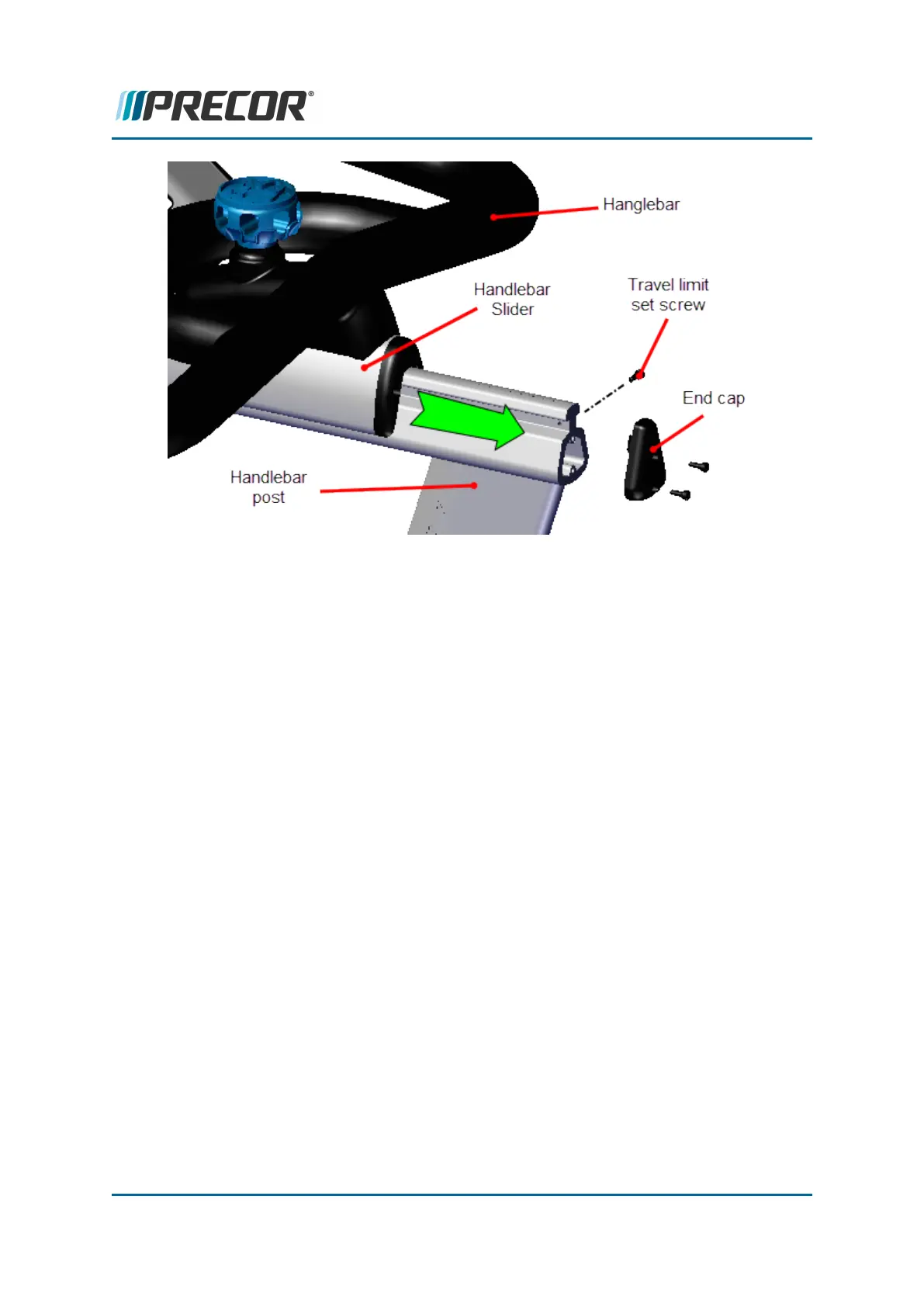

3. Slide the handlebar forward enough to allow access to handlebar assembly travel
limit set screw located at the back end of the handlebar post slider. Remove the rear
slider travel limit set screw using a 2.5 mm hex key. Retain part(s) and/or fastener(s)
for installation.
4. Remove the handlebar assembly by loosening and lifting up on the fwd/back adjust-
ment knob while sliding the assembly towards the back of the bike.
Installation instructions
1. Loosen the fwd/back adjustment knob and then reinstall the handlebar assembly by
sliding the assembly rearwards onto the handlebar post.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 101
5 Replacement Procedures
Handlebar Assembly Replacement
