Precor SPINNER CHRONO POWER User Manual

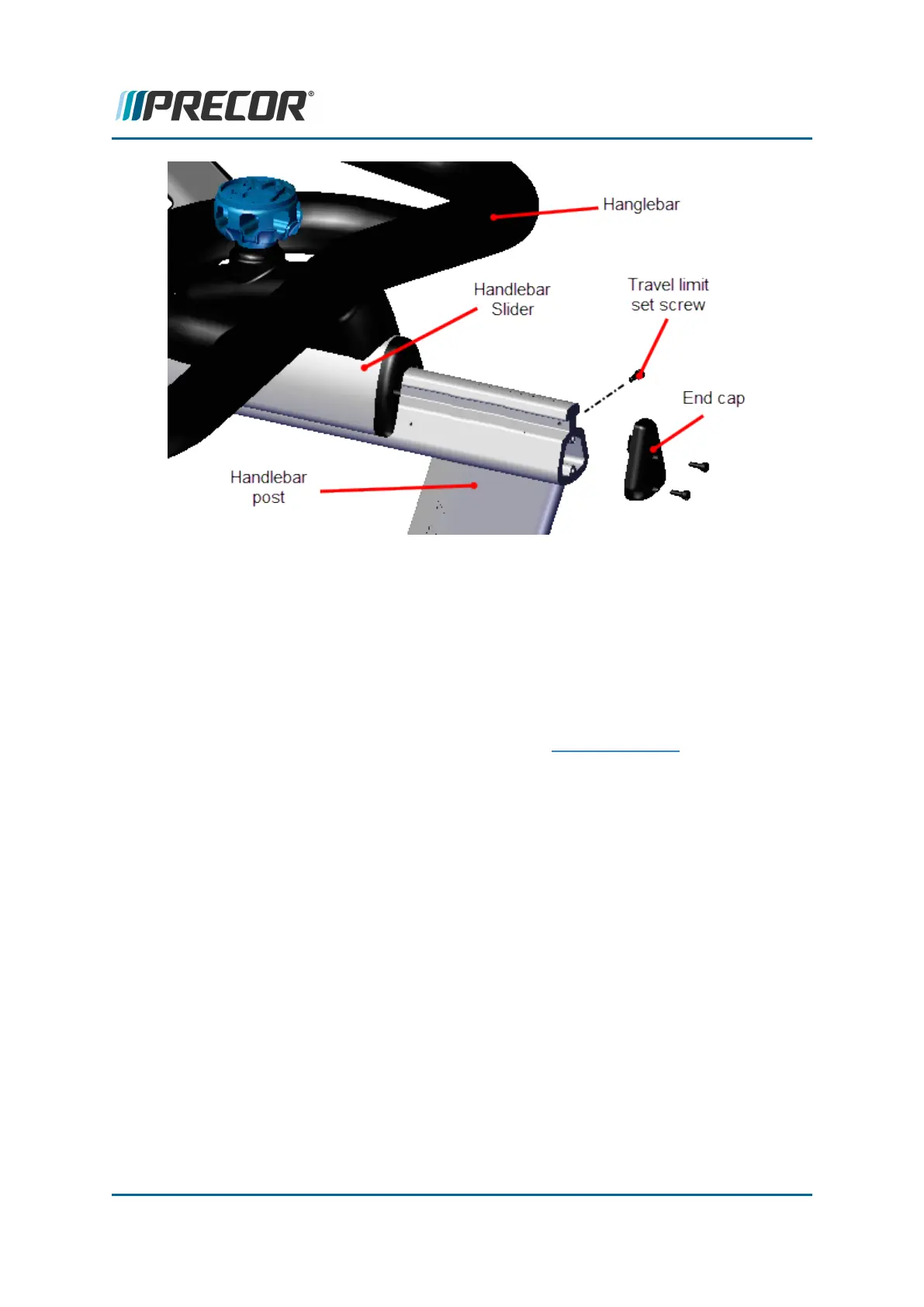

2. Slide the handlebar forward enough to allow access to handlebar assembly travel
limit set screw located at the back end of the handlebar post slider. Reinstall the rear
slider travel limit set screw using a 2.5 mm hex key.
3. Reinstall the rear handlebar post slider end cap and secure using the two mounting
2.5 mm hex key bolts.
4. (Spinner® Chrono™ Power models only)
Position the console on the handlebars and connect the data COMM cable. Adjust the
cable slack and reinstall the console backplate, secure using the four hex key bolts
(4x) (see the "SPINNER
®
CHRONO™ CONSOLE" Operator's Guide).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 102
5 Replacement Procedures
Handlebar Assembly Replacement
